Pressure Relief Valves Gunmetal

VALVE OVERFLOW RED BRASS DIN, #618T 3/8" W/TEFLON GASKET

IMPA 756961 PCE

Gunmetal overflow/relief valve, 3/8", model 618T with PTFE gasket and stainless steel spring. Handles liquids, steam and gases; adjustment ranges 0.2–0.8, 0.5–2.5, 2.0–12, 12–20 bar. ABS, BV, DNV, GL and LR type approved; available unset or factory-set.

VALVE OVERFLOW RED BRASS DIN, #618T 1/2" W/TEFLON GASKET

IMPA 756962 PCE

Gunmetal overflow/relief valve, 1/2", model 618T with PTFE gasket and stainless steel spring. Handles liquids, steam and gases; adjustment ranges 0.2–0.8, 0.5–2.5, 2.0–12, 12–20 bar. ABS, BV, DNV, GL and LR type approved; available unset or factory-set.

VALVE OVERFLOW RED BRASS DIN, #618T 3/4" W/TEFLON GASKET

IMPA 756963 PCE

Gunmetal overflow/relief valve, 3/4", model 618T with PTFE gasket and stainless steel spring. Handles liquids, steam and gases; adjustment ranges 0.2–0.8, 0.5–2.5, 2.0–12, 12–20 bar. ABS, BV, DNV, GL and LR type approved; available unset or factory-set.

VALVE OVERFLOW RED BRASS DIN, #618T 1" W/TEFLON GASKET

IMPA 756964 PCE

Gunmetal overflow/relief valve, 1", model 618T with PTFE gasket and stainless steel spring. Handles liquids, steam and gases; adjustment ranges 0.2–0.8, 0.5–2.5, 2.0–12, 12–20 bar. ABS, BV, DNV, GL and LR type approved; available unset or factory-set.

VALVE OVERFLOW RED BRASS DIN, #618T 1-1/4" W/TEFLON GASKET

IMPA 756965 PCE

Gunmetal overflow/relief valve, 1-1/4", model 618T with PTFE gasket and stainless steel spring. Handles liquids, steam and gases; adjustment ranges 0.2–0.8, 0.5–2.5, 2.0–12, 12–20 bar. ABS, BV, DNV, GL and LR type approved; available unset or factory-set.

VALVE OVERFLOW RED BRASS DIN, #618T 1-1/2" W/TEFLON GASKET

IMPA 756966 PCE

Gunmetal overflow/relief valve, 1-1/2", model 618T with PTFE gasket and stainless steel spring. Handles liquids, steam and gases; adjustment ranges 0.2–0.8, 0.5–2.5, 2.0–12, 12–20 bar. ABS, BV, DNV, GL and LR type approved; available unset or factory-set.

VALVE OVERFLOW RED BRASS DIN, #618T 2" W/TEFLON GASKET

IMPA 756967 PCE

Gunmetal overflow/relief valve, 2", model 618T with PTFE gasket and stainless steel spring. Handles liquids, steam and gases; adjustment ranges 0.2–0.8, 0.5–2.5, 2.0–12, 12–20 bar. ABS, BV, DNV, GL and LR type approved; available unset or factory-set.

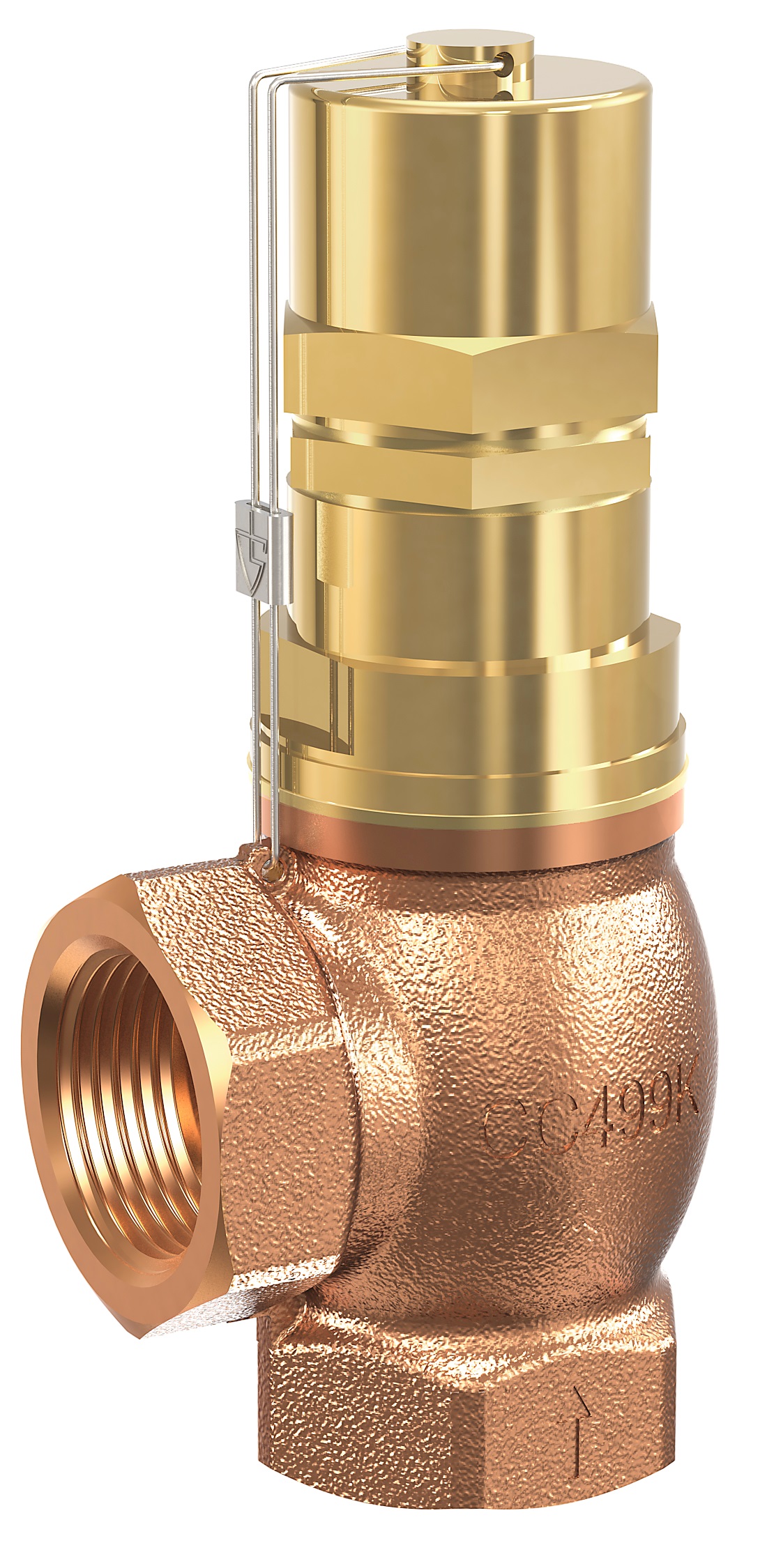

VALVE PRESS. RELIEF GUNMETAL, #618TGFO NBR SEAL 3/8"

IMPA 756971 PCE

Gunmetal pressure relief valve, 3/8", model 618TGFO with NBR seal and stainless steel spring. Handles liquids, steam and gases; adjustment ranges 0.2–0.8, 0.5–2.5, 2.0–12 bar. ABS, BV, DNV, GL and LR type approved; available unset or factory-set.

VALVE PRESS. RELIEF GUNMETAL, #618TGFO NBR SEAL 1/2"

IMPA 756972 PCE

Gunmetal pressure relief valve, 1/2", model 618TGFO with NBR seal and stainless steel spring. Handles liquids, steam and gases; adjustment ranges 0.2–0.8, 0.5–2.5, 2.0–12 bar. ABS, BV, DNV, GL and LR type approved; available unset or factory-set.

VALVE PRESS. RELIEF GUNMETAL, #618TGFO NBR SEAL 3/4"

IMPA 756973 PCE

Pressure relief valve, gunmetal body with stainless steel spring, 618tGF0 gastight model, 3/4" port, NBR seal. Adjustment range 0.2–0.8 bar, 0.5–2.5 bar, 2.0–12 bar, or 12–20 bar. ABS, BV, DNV, GL, LR type approved. Factory-set or unset options available.

VALVE PRESS. RELIEF GUNMETAL, #618TGFO NBR SEAL 1"

IMPA 756974 PCE

Pressure relief valve, gunmetal body with stainless steel spring, 618tGF0 gastight model, 1" port, NBR seal. Adjustment range 0.2–0.8 bar, 0.5–2.5 bar, 2.0–12 bar, or 12–20 bar. ABS, BV, DNV, GL, LR type approved. Factory-set or unset options available.

VALVE PRESS. RELIEF GUNMETAL, #618TGFO NBR SEAL 1-1/4"

IMPA 756975 PCE

Pressure relief valve, gunmetal body with stainless steel spring, 618tGF0 gastight model, 1–1/4" port, NBR seal. Adjustment range 0.2–0.8 bar, 0.5–2.5 bar, 2.0–12 bar, or 12–20 bar. ABS, BV, DNV, GL, LR type approved. Factory-set or unset options available.

VALVE PRESS. RELIEF GUNMETAL, #618TGFO NBR SEAL 1-1/2"

IMPA 756976 PCE

Pressure relief valve, gunmetal body with stainless steel spring, 618tGF0 gastight model, 1–1/2" port, NBR seal. Adjustment range 0.2–0.8 bar, 0.5–2.5 bar, 2.0–12 bar, or 12–20 bar. ABS, BV, DNV, GL, LR type approved. Factory-set or unset options available.

VALVE PRESS. RELIEF GUNMETAL, #618TGFO NBR SEAL 2"

IMPA 756977 PCE

Pressure relief valve, gunmetal body with stainless steel spring, 618tGF0 gastight model, 2" port, NBR seal. Adjustment range 0.2–0.8 bar, 0.5–2.5 bar, 2.0–12 bar, or 12–20 bar. ABS, BV, DNV, GL, LR type approved. Factory-set or unset options available.

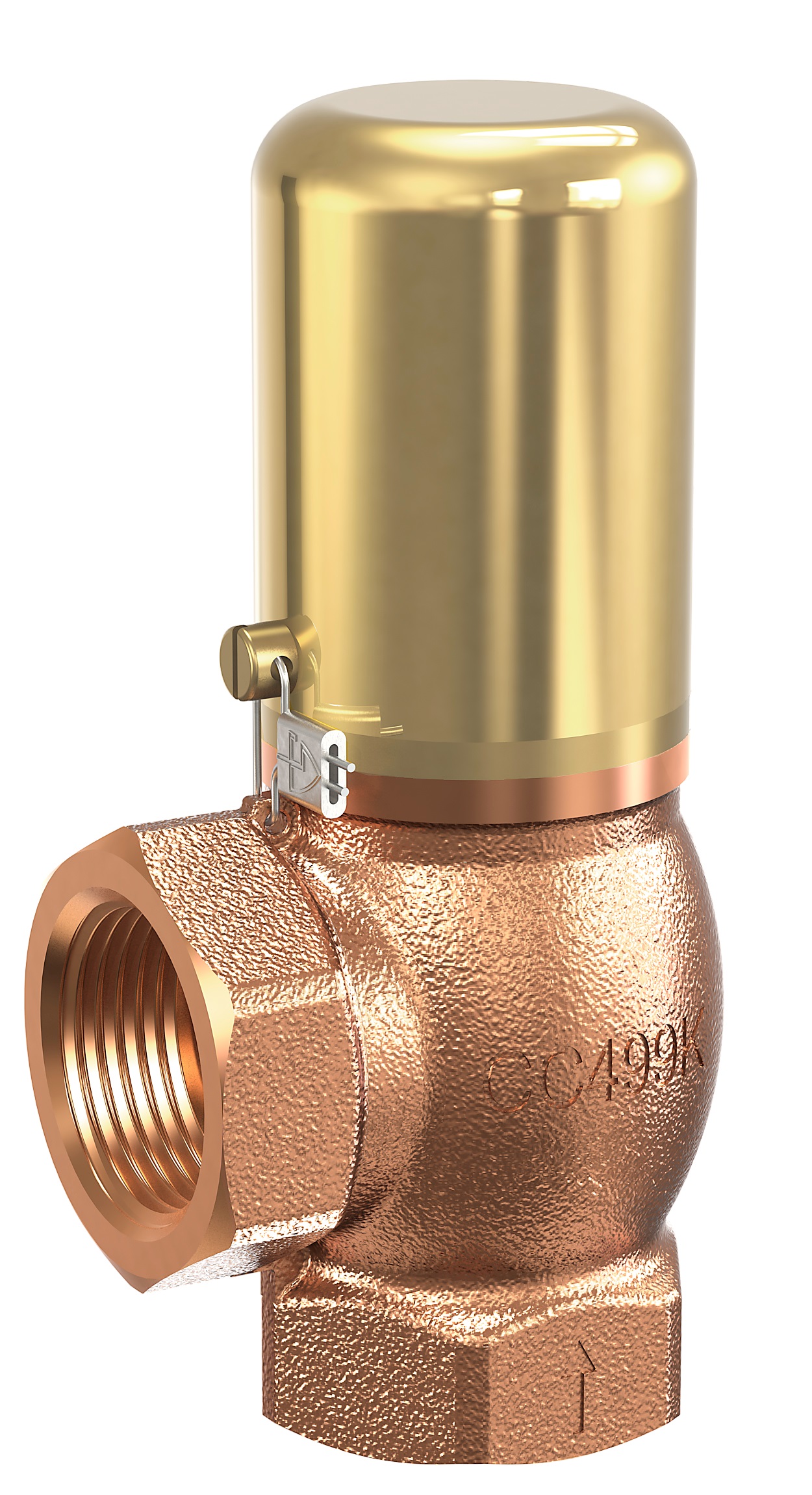

VALVE PRESS. RELIEF GUNMETAL, #618SGFO NBR SEAL 3/8"

IMPA 756981 PCE

Pressure relief valve, gunmetal body with stainless steel spring, 618sGF0 non-gastight model without lever, 3/8" port, NBR seal. Adjustment range 0.2–0.8 bar, 0.5–2.5 bar, 2.0–12 bar, or 12–20 bar. ABS, BV, DNV, GL, LR type approved. Factory-set or unset options available.

VALVE PRESS. RELIEF GUNMETAL, #618SGFO NBR SEAL 1/2"

IMPA 756982 PCE

Pressure relief valve, gunmetal body with stainless steel spring, 618sGF0 non-gastight model without lever, 1/2" port, NBR seal. Adjustment range 0.2–0.8 bar, 0.5–2.5 bar, 2.0–12 bar, or 12–20 bar. ABS, BV, DNV, GL, LR type approved. Factory-set or unset options available.

VALVE PRESS. RELIEF GUNMETAL, #618SGFO NBR SEAL 3/4"

IMPA 756983 PCE

Pressure relief valve, gunmetal body with stainless steel spring, 618sGF0 non-gastight model without lever, 3/4" port, NBR seal. Adjustment range 0.2–0.8 bar, 0.5–2.5 bar, 2.0–12 bar, or 12–20 bar. ABS, BV, DNV, GL, LR type approved. Factory-set or unset options available.

VALVE PRESS. RELIEF GUNMETAL, #618SGFO NBR SEAL 1"

IMPA 756984 PCE

Pressure relief valve, gunmetal body with stainless steel spring, 618sGF0 non-gastight model without lever, 1" port, NBR seal. Adjustment range 0.2–0.8 bar, 0.5–2.5 bar, 2.0–12 bar, or 12–20 bar. ABS, BV, DNV, GL, LR type approved. Factory-set or unset options available.

VALVE PRESS. RELIEF GUNMETAL, #618SGFO NBR SEAL 1-1/4"

IMPA 756985 PCE

Pressure relief valve, gunmetal body with stainless steel spring, 618sGF0 non-gastight model without lever, 1–1/4" port, NBR seal. Adjustment range 0.2–0.8 bar, 0.5–2.5 bar, 2.0–12 bar, or 12–20 bar. ABS, BV, DNV, GL, LR type approved. Factory-set or unset options available.

VALVE PRESS. RELIEF GUNMETAL, #618SGFO NBR SEAL 1-1/2"

IMPA 756986 PCE

Pressure relief valve, gunmetal body with stainless steel spring, 618sGF0 non-gastight model without lever, 1–1/2" port, NBR seal. Adjustment range 0.2–0.8 bar, 0.5–2.5 bar, 2.0–12 bar, or 12–20 bar. ABS, BV, DNV, GL, LR type approved. Factory-set or unset options available.

VALVE PRESS. RELIEF GUNMETAL, #618SGFO NBR SEAL 2"

IMPA 756987 PCE

Pressure relief valve, gunmetal body with stainless steel spring, 618sGF0 non-gastight model without lever, 2" port, NBR seal. Adjustment range 0.2–0.8 bar, 0.5–2.5 bar, 2.0–12 bar, or 12–20 bar. ABS, BV, DNV, GL, LR type approved. Factory-set or unset options available.

VALVE PRESS. RELIEF GUNMETAL, #618SGFO PTFE SEAL 3/8"

IMPA 756991 PCE

Pressure relief valve, gunmetal body with stainless steel spring, 618sGF0 non-gastight model without lever, 3/8" port, PTFE seal. Adjustment range 2.0–12 bar or 12–20 bar. ABS, BV, DNV, GL, LR type approved. Factory-set or unset options available.

VALVE PRESS. RELIEF GUNMETAL, #618SGFO PTFE SEAL 1/2"

IMPA 756992 PCE

Pressure relief valve, gunmetal body with stainless steel spring, 618sGF0 non-gastight model without lever, 1/2" port, PTFE seal. Adjustment range 2.0–12 bar or 12–20 bar. ABS, BV, DNV, GL, LR type approved. Factory-set or unset options available.

VALVE PRESS. RELIEF GUNMETAL, #618SGFO PTFE SEAL 3/4"

IMPA 756993 PCE

Pressure relief valve, gunmetal body with stainless steel spring, 618sGF0 non-gastight model without lever, 3/4" port, PTFE seal. Adjustment range 2.0–12 bar or 12–20 bar. ABS, BV, DNV, GL, LR type approved. Factory-set or unset options available.

VALVE PRESS. RELIEF GUNMETAL, #618SGFO PTFE SEAL 1"

IMPA 756994 PCE

Pressure relief valve, gunmetal body with stainless steel spring, 618sGF0 non-gastight model without lever, 1" port, PTFE seal. Adjustment range 2.0–12 bar or 12–20 bar. ABS, BV, DNV, GL, LR type approved. Factory-set or unset options available.

VALVE PRESS. RELIEF GUNMETAL, #618SGFO PTFE SEAL 1-1/4"

IMPA 756995 PCE

Pressure relief valve, gunmetal body with stainless steel spring, 618sGF0 non-gastight model without lever, 1–1/4" port, PTFE seal. Adjustment range 2.0–12 bar or 12–20 bar. ABS, BV, DNV, GL, LR type approved. Factory-set or unset options available.

VALVE PRESS. RELIEF GUNMETAL, #618SGFO PTFE SEAL 1-1/2"

IMPA 756996 PCE

Pressure relief valve, gunmetal body with stainless steel spring, 618sGF0 non-gastight model without lever, 1–1/2" port, PTFE seal. Adjustment range 2.0–12 bar or 12–20 bar. ABS, BV, DNV, GL, LR type approved. Factory-set or unset options available.

VALVE PRESS. RELIEF GUNMETAL, #618SGFO PTFE SEAL 2"

IMPA 756997 PCE

Pressure relief valve, gunmetal body with stainless steel spring, 618sGF0 non-gastight model without lever, 2" port, PTFE seal. Adjustment range 2.0–12 bar or 12–20 bar. ABS, BV, DNV, GL, LR type approved. Factory-set or unset options available.

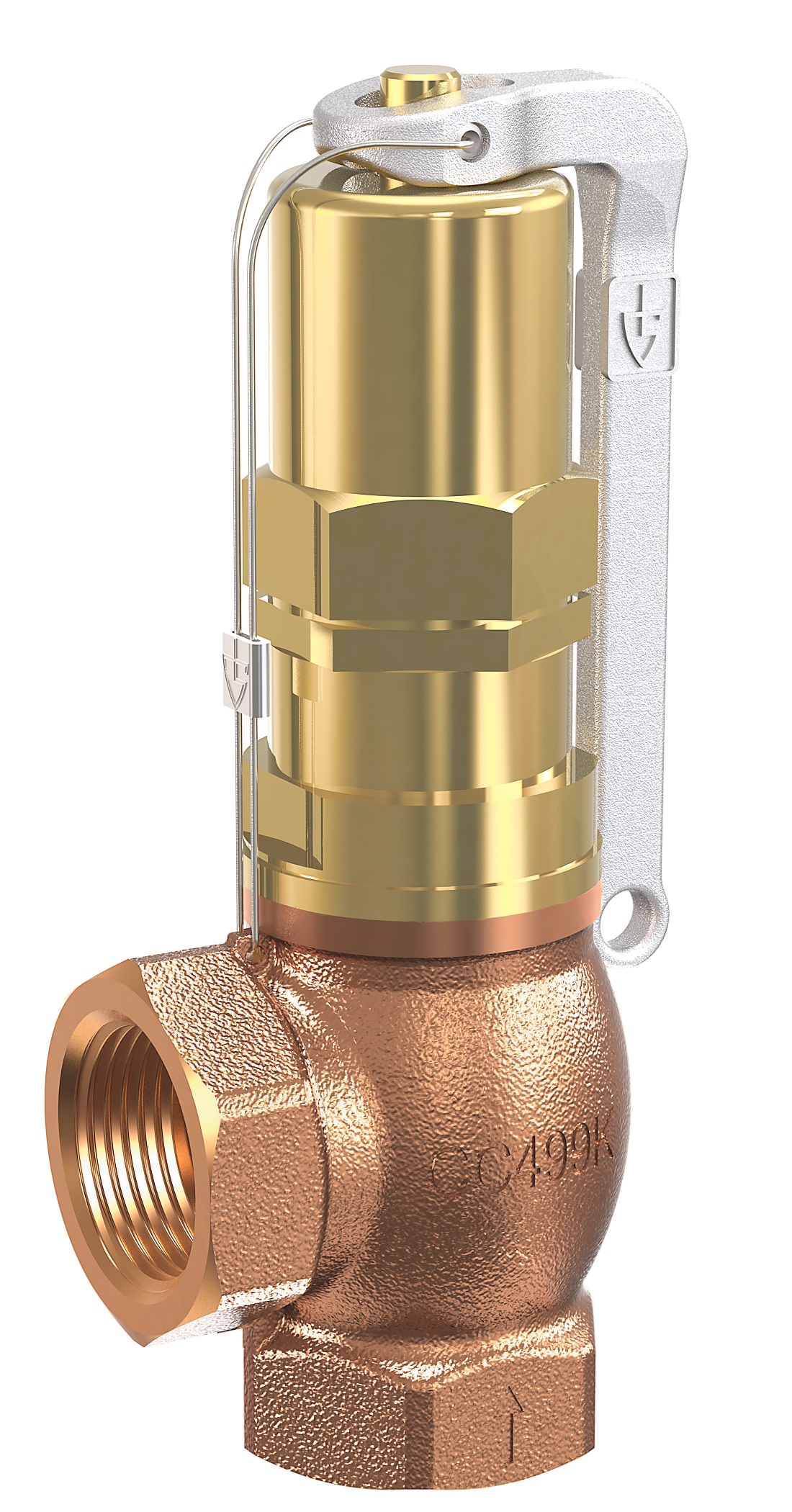

VALVE PRESS. RELIEF G.METAL, DIN #618SGFL NBR SEAL 3/8"

IMPA 757007 PCE

Pressure relief valve, gunmetal body with stainless steel spring, 618sGFL non-gastight model with lifting lever, 3/8" port, NBR seal. Adjustment range 0.2–0.8 bar, 0.5–2.5 bar, 2.0–12 bar, or 12–20 bar. ABS, BV, DNV, GL, LR type approved. Factory-set or unset options available.

VALVE PRESS. RELIEF G.METAL, DIN #618SGFL NBR SEAL 1/2"

IMPA 757008 PCE

DIN 618 sGFL gunmetal pressure relief valve, 1/2" port with NBR seal and stainless steel spring. Certified by ABS, BV, DNV, GL, LR. Handles liquids, steam and gases; adjustment ranges 0.2–0.8, 0.5–2.5, 2.0–12 bar. Available unset or factory-set and sealed.

VALVE PRESS. RELIEF G.METAL, DIN #618SGFL NBR SEAL 3/4"

IMPA 757009 PCE

DIN 618 sGFL gunmetal pressure relief valve, 3/4" port with NBR seal and stainless steel spring. Certified by ABS, BV, DNV, GL, LR. Handles liquids, steam and gases; adjustment ranges 0.2–0.8, 0.5–2.5, 2.0–12 bar. Available unset or factory-set and sealed.

VALVE PRESS. RELIEF G.METAL, DIN #618SGFL NBR SEAL 1"

IMPA 757010 PCE

DIN 618 sGFL gunmetal pressure relief valve, 1" port with NBR seal and stainless steel spring. Certified by ABS, BV, DNV, GL, LR. Handles liquids, steam and gases; adjustment ranges 0.2–0.8, 0.5–2.5, 2.0–12 bar. Available unset or factory-set and sealed.

VALVE PRESS. RELIEF G.METAL, DIN #618SGFL NBR SEAL 1-1/4"

IMPA 757017 PCE

DIN 618 sGFL gunmetal pressure relief valve, 1–1/4" port with NBR seal and stainless steel spring. Certified by ABS, BV, DNV, GL, LR. Handles liquids, steam and gases; adjustment ranges 0.2–0.8, 0.5–2.5, 2.0–12 bar. Available unset or factory-set and sealed.

VALVE PRESS. RELIEF G.METAL, DIN #618SGFL NBR SEAL 1-1/2"

IMPA 757018 PCE

DIN 618 sGFL gunmetal pressure relief valve, 1–1/2" port with NBR seal and stainless steel spring. Certified by ABS, BV, DNV, GL, LR. Handles liquids, steam and gases; adjustment ranges 0.2–0.8, 0.5–2.5, 2.0–12 bar. Available unset or factory-set and sealed.

VALVE PRESS. RELIEF G.METAL, DIN #618SGFL NBR SEAL 2"

IMPA 757019 PCE

DIN 618 sGFL gunmetal pressure relief valve, 2" port with NBR seal and stainless steel spring. Certified by ABS, BV, DNV, GL, LR. Handles liquids, steam and gases; adjustment ranges 0.2–0.8, 0.5–2.5, 2.0–12 bar. Available unset or factory-set and sealed.

VALVE PRESS. RELIEF G.METAL, DIN #618SGFL PTFE SEAL 3/8"

IMPA 757020 PCE

DIN 618 sGFL gunmetal pressure relief valve, 3/8" port with PTFE seal and stainless steel spring. Certified by ABS, BV, DNV, GL, LR. Handles liquids, steam and gases; adjustment ranges 0.2–0.8, 0.5–2.5, 2.0–12, 12–20 bar. Available unset or factory-set and sealed.

VALVE PRESS. RELIEF G.METAL, DIN #618SGFL PTFE SEAL 1/2"

IMPA 757024 PCE

DIN 618 sGFL gunmetal pressure relief valve, 1/2" port with PTFE seal and stainless steel spring. Certified by ABS, BV, DNV, GL, LR. Handles liquids, steam and gases; adjustment ranges 0.2–0.8, 0.5–2.5, 2.0–12, 12–20 bar. Available unset or factory-set and sealed.

VALVE PRESS. RELIEF G.METAL, DIN #618SGFL PTFE SEAL 3/4"

IMPA 757025 PCE

DIN 618 sGFL gunmetal pressure relief valve, 3/4" port with PTFE seal and stainless steel spring. Certified by ABS, BV, DNV, GL, LR. Handles liquids, steam and gases; adjustment ranges 0.2–0.8, 0.5–2.5, 2.0–12, 12–20 bar. Available unset or factory-set and sealed.

VALVE PRESS. RELIEF G.METAL, DIN #618SGFL PTFE SEAL 1"

IMPA 757026 PCE

DIN 618 sGFL gunmetal pressure relief valve, 1" port with PTFE seal and stainless steel spring. Certified by ABS, BV, DNV, GL, LR. Handles liquids, steam and gases; adjustment ranges 0.2–0.8, 0.5–2.5, 2.0–12, 12–20 bar. Available unset or factory-set and sealed.

VALVE PRESS. RELIEF G.METAL, DIN #618SGFL PTFE SEAL 1-1/4"

IMPA 757027 PCE

DIN 618 sGFL gunmetal pressure relief valve, 1–1/4" port with PTFE seal and stainless steel spring. Certified by ABS, BV, DNV, GL, LR. Handles liquids, steam and gases; adjustment ranges 0.2–0.8, 0.5–2.5, 2.0–12, 12–20 bar. Available unset or factory-set and sealed.
