Overflow Valves Gunmetal & Stainless Steel

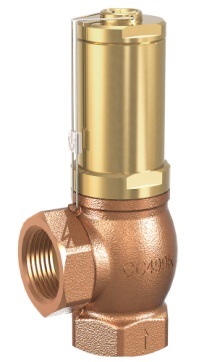

VALVE OVERFLOW GUNMETAL DIN, #617TGFO G3/8"

IMPA 757161 PCE

Gunmetal overflow valve model 617tGFO, G3/8", gastight spring housing, stainless steel spring, for liquids and gases. Multiple seal options (NBR, FKM, PTFE) with adjustment ranges 0.5–2.5 bar, 2.0–8.0 bar, 2.0–12 bar, or 12–20 bar. Factory set and sealed or unset options available.

VALVE OVERFLOW GUNMETAL DIN, #617TGFO G1/2"

IMPA 757162 PCE

Gunmetal overflow valve model 617tGFO, G1/2", gastight spring housing, stainless steel spring, for liquids and gases. Multiple seal options (NBR, FKM, PTFE) with adjustment ranges 0.5–2.5 bar, 2.0–8.0 bar, 2.0–12 bar, or 12–20 bar. Factory set and sealed or unset options available.

VALVE OVERFLOW GUNMETAL DIN, #617TGFO G3/4"

IMPA 757163 PCE

Gunmetal overflow valve model 617tGFO, G3/4", gastight spring housing, stainless steel spring, for liquids and gases. Multiple seal options (NBR, FKM, PTFE) with adjustment ranges 0.5–2.5 bar, 2.0–8.0 bar, 2.0–12 bar, or 12–20 bar. Factory set and sealed or unset options available.

VALVE OVERFLOW GUNMETAL DIN, #617TGFO G1"

IMPA 757164 PCE

Gunmetal overflow valve model 617tGFO, G1", gastight spring housing, stainless steel spring, for liquids and gases. Multiple seal options (NBR, FKM, PTFE) with adjustment ranges 0.5–2.5 bar, 2.0–8.0 bar, 2.0–12 bar, or 12–20 bar. Factory set and sealed or unset options available.

VALVE OVERFLOW GUNMETAL DIN, #617TGFO G1-1/4"

IMPA 757165 PCE

Gunmetal overflow valve model 617tGFO, G1-1/4", gastight spring housing, stainless steel spring, for liquids and gases. Multiple seal options (NBR, FKM, PTFE) with adjustment ranges 0.5–2.5 bar, 2.0–8.0 bar, 2.0–12 bar, or 12–20 bar. Factory set and sealed or unset options available.

VALVE OVERFLOW GUNMETAL DIN, #617TGFO G1-1/2"

IMPA 757166 PCE

Gunmetal overflow valve model 617tGFO, G1-1/2", gastight spring housing, stainless steel spring, for liquids and gases. Multiple seal options (NBR, FKM, PTFE) with adjustment ranges 0.5–2.5 bar, 2.0–8.0 bar, 2.0–12 bar, or 12–20 bar. Factory set and sealed or unset options available.

VALVE OVERFLOW GUNMETAL DIN, #617TGFO G2"

IMPA 757167 PCE

Gunmetal overflow/control valve, G2" port, with stainless steel spring. Handles liquids, steam and gases; field-adjustable with gastight spring housing. Seal options: NBR, FKM, PTFE. Pressure ranges 0.5–2.5 bar to 12–20 bar (PTFE). Factory-set or delivered unset. ABS, BV, DNV, GL, LR type approvals.

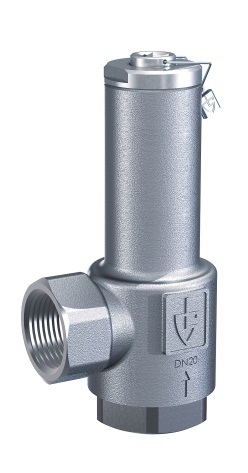

VALVE OVERFLOW S.STEEL DIN, #417TGFO G3/8"

IMPA 757168 PCE

Stainless steel overflow/control valve, G3/8" port, with stainless steel spring. Handles liquids, steam and gases; field-adjustable with gastight spring housing. Seal options: NBR, FKM, PTFE. Pressure ranges 0.5–2.5 bar to 12–20 bar (PTFE). Factory-set or delivered unset. ABS, BV, DNV, GL, LR type approvals.

VALVE OVERFLOW S.STEEL DIN, #417TGFO G1/2"

IMPA 757169 PCE

Stainless steel overflow/control valve, G1/2" port, with stainless steel spring. Handles liquids, steam and gases; field-adjustable with gastight spring housing. Seal options: NBR, FKM, PTFE. Pressure ranges 0.5–2.5 bar to 12–20 bar (PTFE). Factory-set or delivered unset. ABS, BV, DNV, GL, LR type approvals.

VALVE OVERFLOW S.STEEL DIN, #417TGFO G3/4"

IMPA 757170 PCE

Stainless steel overflow/control valve, G3/4" port, with stainless steel spring. Handles liquids, steam and gases; field-adjustable with gastight spring housing. Seal options: NBR, FKM, PTFE. Pressure ranges 0.5–2.5 bar to 12–20 bar (PTFE). Factory-set or delivered unset. ABS, BV, DNV, GL, LR type approvals.

VALVE OVERFLOW S.STEEL DIN, #417TGFO G1"

IMPA 757171 PCE

Stainless steel overflow/control valve, G1" port, with stainless steel spring. Handles liquids, steam and gases; field-adjustable with gastight spring housing. Seal options: NBR, FKM, PTFE. Pressure ranges 0.5–2.5 bar to 12–20 bar (PTFE). Factory-set or delivered unset. ABS, BV, DNV, GL, LR type approvals.

VALVE OVERFLOW S.STEEL DIN, #417TGFO G1-1/4"

IMPA 757172 PCE

Stainless steel overflow/control valve, G1¼" port, with stainless steel spring. Handles liquids, steam and gases; field-adjustable with gastight spring housing. Seal options: NBR, FKM, PTFE. Pressure ranges 0.5–2.5 bar to 12–20 bar (PTFE). Factory-set or delivered unset. ABS, BV, DNV, GL, LR type approvals.

VALVE OVERFLOW S.STEEL DIN, #417TGFO G1-1/2"

IMPA 757173 PCE

Stainless steel overflow/control valve, G1½" port, with stainless steel spring. Handles liquids, steam and gases; field-adjustable with gastight spring housing. Seal options: NBR, FKM, PTFE. Pressure ranges 0.5–2.5 bar to 12–20 bar (PTFE). Factory-set or delivered unset. ABS, BV, DNV, GL, LR type approvals.

VALVE OVERFLOW S.STEEL DIN, #417TGFO G2"

IMPA 757174 PCE

Stainless steel overflow/control valve, G2" port, with stainless steel spring. Handles liquids, steam and gases; field-adjustable with gastight spring housing. Seal options: NBR, FKM, PTFE. Pressure ranges 0.5–2.5 bar to 12–20 bar (PTFE). Factory-set or delivered unset. ABS, BV, DNV, GL, LR type approvals.

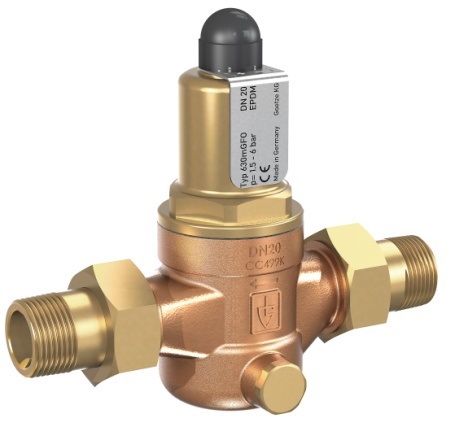

VALVE OVERFLOW GUNMETAL, #630MGFO DIN 15

IMPA 757187 PCE

Gunmetal overflow valve, DIN 15 threaded connection, with corrosion-protected spring steel spring and EPDM seal. For water to 95 °C, neutral liquids, compressed air and neutral gases. BSPTm male or BSP-P female threads. Pressure ranges 0.5–2 bar, 1.5–6 bar, 5.5–10 bar. Factory-set or unset. ABS, BV, DNV, GL, LR type approvals.

VALVE OVERFLOW GUNMETAL, #630MGFO DIN 20

IMPA 757188 PCE

Gunmetal overflow valve, DIN 20 threaded connection, with corrosion-protected spring steel spring and EPDM seal. For water to 95 °C, neutral liquids, compressed air and neutral gases. BSPTm male or BSP-P female threads. Pressure ranges 0.5–2 bar, 1.5–6 bar, 5.5–10 bar. Factory-set or unset. ABS, BV, DNV, GL, LR type approvals.

VALVE OVERFLOW GUNMETAL, #630MGFO DIN 25

IMPA 757189 PCE

Gunmetal overflow valve, DIN 25 threaded connection, with corrosion-protected spring steel spring and EPDM seal. For water to 95 °C, neutral liquids, compressed air and neutral gases. BSPTm male or BSP-P female threads. Pressure ranges 0.5–2 bar, 1.5–6 bar, 5.5–10 bar. Factory-set or unset. ABS, BV, DNV, GL, LR type approvals.

VALVE OVERFLOW GUNMETAL, #630MGFO DIN 32

IMPA 757190 PCE

Gunmetal overflow valve, DIN 32 threaded connection, with corrosion-protected spring steel spring and EPDM seal. For water to 95 °C, neutral liquids, compressed air and neutral gases. BSPTm male or BSP-P female threads. Pressure ranges 0.5–2 bar, 1.5–6 bar, 5.5–10 bar. Factory-set or unset. ABS, BV, DNV, GL, LR type approvals.

VALVE OVERFLOW GUNMETAL, #630MGFO DIN 40

IMPA 757191 PCE

Gunmetal overflow valve, DIN 40 threaded connection, with corrosion-protected spring steel spring and EPDM seal. For water to 95 °C, neutral liquids, compressed air and neutral gases. Pressure ranges 0.5–2 bar, 1.5–6 bar, 5.5–10 bar. Factory-set or unset. ABS, BV, DNV, GL, LR type approvals.

VALVE OVERFLOW GUNMETAL, #630MGFO DIN 50

IMPA 757192 PCE

Gunmetal overflow valve, DIN 50 threaded connection, with corrosion-protected spring steel spring and EPDM seal. For water to 95 °C, neutral liquids, compressed air and neutral gases. Pressure ranges 0.5–2 bar, 1.5–6 bar, 5.5–10 bar. Factory-set or unset. ABS, BV, DNV, GL, LR type approvals.

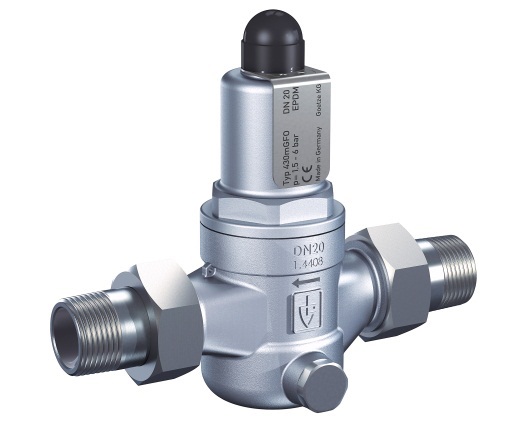

VALVE OVERFLOW S.STEEL, #430MGFO DIN 15

IMPA 757193 PCE

Stainless steel overflow valve, DIN 15 threaded connection, with corrosion-protected spring steel spring and EPDM seal. For water to 95 °C, neutral liquids, compressed air and neutral gases. BSPTm male or BSP-P female threads. Pressure ranges 0.5–2 bar, 1.5–6 bar, 5.5–10 bar. Factory-set or unset. ABS, BV, DNV, GL, LR type approvals.

VALVE OVERFLOW S.STEEL, #430MGFO DIN 20

IMPA 757194 PCE

Stainless steel overflow valve, DIN 20 threaded connection, with corrosion-protected spring steel spring and EPDM seal. For water to 95 °C, neutral liquids, compressed air and neutral gases. BSPTm male or BSP-P female threads. Pressure ranges 0.5–2 bar, 1.5–6 bar, 5.5–10 bar. Factory-set or unset. ABS, BV, DNV, GL, LR type approvals.

VALVE OVERFLOW S.STEEL, #430MGFO DIN 25

IMPA 757195 PCE

Stainless steel overflow valve, DIN 25 threaded connection, with corrosion-protected spring steel spring and EPDM seal. For water to 95 °C, neutral liquids, compressed air and neutral gases. BSPTm male or BSP-P female threads. Pressure ranges 0.5–2 bar, 1.5–6 bar, 5.5–10 bar. Factory-set or unset. ABS, BV, DNV, GL, LR type approvals.

VALVE OVERFLOW S.STEEL, #430MGFO DIN 32

IMPA 757196 PCE

Stainless steel overflow valve, DIN 32 threaded connection, with corrosion-protected spring steel spring and EPDM seal. For water to 95 °C, neutral liquids, compressed air and neutral gases. Pressure ranges 0.5–2 bar, 1.5–6 bar, 5.5–10 bar. Factory-set or unset. ABS, BV, DNV, GL, LR type approvals.

VALVE OVERFLOW S.STEEL, #430MGFO DIN 40

IMPA 757197 PCE

Stainless steel overflow valve, DIN 40 threaded connection, with corrosion-protected spring steel spring and EPDM seal. For water to 95 °C, neutral liquids, compressed air and neutral gases. Pressure ranges 0.5–2 bar, 1.5–6 bar, 5.5–10 bar. Factory-set or unset. ABS, BV, DNV, GL, LR type approvals.

VALVE OVERFLOW S.STEEL, #430MGFO DIN 50

IMPA 757198 PCE

Stainless steel overflow valve, DIN 50 threaded connection, with corrosion-protected spring steel spring and EPDM seal. For water to 95 °C, neutral liquids, compressed air and neutral gases. Pressure ranges 0.5–2 bar, 1.5–6 bar, 5.5–10 bar. Factory-set or unset. ABS, BV, DNV, GL, LR type approvals.

VALVE OVERFLOW GUNMETAL, PN40 #631MGFO DIN 15

IMPA 757199 PCE

Gunmetal overflow/control valve, PN40, DIN 15 flange, spring steel with anti-corrosion treatment. EPDM seal for water, neutral liquids, compressed air and neutral gases; set pressure 0.5–10 bar, adjustable ranges 0.5–2 bar, 1.5–6 bar, 1.5–5.5 bar or 5.5–10 bar depending on size. ABS, BV, DNV, GL, LR certified. EPDM or FKM seal options; stainless steel series 431 available.

VALVE OVERFLOW GUNMETAL, PN16 #631MGFO DIN 100

IMPA 757200 PCE

Gunmetal overflow/control valve, PN16, DIN 100 flange, spring steel with anti-corrosion treatment. EPDM seal for water, neutral liquids, compressed air and neutral gases; set pressure 0.5–10 bar, adjustable ranges 0.5–2 bar, 1.5–6 bar, 1.5–5.5 bar or 5.5–10 bar depending on size. ABS, BV, DNV, GL, LR certified. EPDM or FKM seal options; stainless steel series 431 available.

VALVE OVERFLOW GUNMETAL, PN40 #631MGFO DIN 20

IMPA 757209 PCE

Gunmetal overflow/control valve, PN40, DIN 20 flange, spring steel with anti-corrosion treatment. EPDM seal for water, neutral liquids, compressed air and neutral gases; set pressure 0.5–10 bar, adjustable ranges 0.5–2 bar, 1.5–6 bar, 1.5–5.5 bar or 5.5–10 bar depending on size. ABS, BV, DNV, GL, LR certified. EPDM or FKM seal options; stainless steel series 431 available.

VALVE OVERFLOW GUNMETAL, PN40 #631MGFO DIN 25

IMPA 757210 PCE

Gunmetal overflow/control valve, PN40, DIN 25 flange, spring steel with anti-corrosion treatment. EPDM seal for water, neutral liquids, compressed air and neutral gases; set pressure 0.5–10 bar, adjustable ranges 0.5–2 bar, 1.5–6 bar, 1.5–5.5 bar or 5.5–10 bar depending on size. ABS, BV, DNV, GL, LR certified. EPDM or FKM seal options; stainless steel series 431 available.

VALVE OVERFLOW GUNMETAL, PN40 #631MGFO DIN 32

IMPA 757218 PCE

Gunmetal overflow/control valve, PN40, DIN 32 flange, spring steel with anti-corrosion treatment. EPDM seal for water, neutral liquids, compressed air and neutral gases; set pressure 0.5–10 bar, adjustable ranges 0.5–2 bar, 1.5–6 bar, 1.5–5.5 bar or 5.5–10 bar depending on size. ABS, BV, DNV, GL, LR certified. EPDM or FKM seal options; stainless steel series 431 available.

VALVE OVERFLOW GUNMETAL, PN40 #631MGFO DIN 40

IMPA 757219 PCE

Gunmetal overflow/control valve, PN40, DIN 40 flange, spring steel with anti-corrosion treatment. EPDM seal for water, neutral liquids, compressed air and neutral gases; set pressure 0.5–10 bar, adjustable ranges 0.5–2 bar, 1.5–6 bar, 1.5–5.5 bar or 5.5–10 bar depending on size. ABS, BV, DNV, GL, LR certified. EPDM or FKM seal options; stainless steel series 431 available.

VALVE OVERFLOW GUNMETAL, PN40 #631MGFO DIN 50

IMPA 757220 PCE

Gunmetal overflow/control valve, PN40, DIN 50 flange, spring steel with anti-corrosion treatment. EPDM seal for water, neutral liquids, compressed air and neutral gases; set pressure 0.5–10 bar, adjustable ranges 0.5–2 bar, 1.5–6 bar, 1.5–5.5 bar or 5.5–10 bar depending on size. ABS, BV, DNV, GL, LR certified. EPDM or FKM seal options; stainless steel series 431 available.

VALVE OVERFLOW GUNMETAL, PN16 #631MGFO DIN 65

IMPA 757227 PCE

Gunmetal overflow/control valve, PN16, DIN 65 flange, spring steel with anti-corrosion treatment. EPDM seal for water, neutral liquids, compressed air and neutral gases; set pressure 0.5–10 bar, adjustable ranges 1.5–6 bar or 5.5–10 bar. ABS, BV, DNV, GL, LR certified. EPDM or FKM seal options; stainless steel series 431 available.

VALVE OVERFLOW GUNMETAL, PN40 #631MGFO DIN 65

IMPA 757228 PCE

Gunmetal overflow/control valve, PN40, DIN 65 flange, spring steel with anti-corrosion treatment. EPDM seal for water, neutral liquids, compressed air and neutral gases; set pressure 0.5–10 bar, adjustable ranges 1.5–6 bar or 5.5–10 bar. ABS, BV, DNV, GL, LR certified. EPDM or FKM seal options; stainless steel series 431 available.

VALVE OVERFLOW GUNMETAL, PN40 #631MGFO DIN 80

IMPA 757229 PCE

Gunmetal overflow/control valve, PN40, DIN 80 flange, spring steel with anti-corrosion treatment. EPDM seal for water, neutral liquids, compressed air and neutral gases; set pressure 0.5–10 bar, adjustable ranges 1.5–6 bar or 5.5–10 bar. ABS, BV, DNV, GL, LR certified. EPDM or FKM seal options; stainless steel series 431 available.

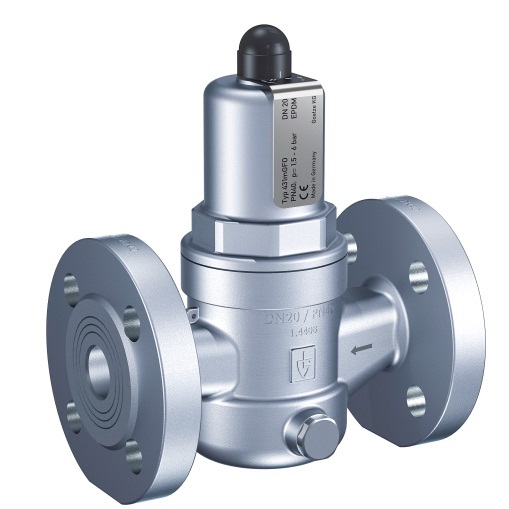

VALVE OVERFLOW STAINLESS STEEL, PN40 #431MGFO DIN 20

IMPA 757230 PCE

Stainless steel overflow/control valve, PN40, DIN 20 flange, spring steel with anti-corrosion treatment. EPDM seal for water, neutral liquids, compressed air and neutral gases; set pressure 0.5–10 bar, adjustable ranges 0.5–2 bar, 1.5–6 bar, 1.5–5.5 bar or 5.5–10 bar depending on size. ABS, BV, DNV, GL, LR certified. EPDM or FKM seal options available.

VALVE OVERFLOW STAINLESS STEEL, PN40 #431MGFO DIN 25

IMPA 757237 PCE

Stainless steel overflow/control valve, PN40, DIN 25 flange, spring steel with anti-corrosion treatment. EPDM seal for water, neutral liquids, compressed air and neutral gases; set pressure 0.5–10 bar, adjustable ranges 0.5–2 bar, 1.5–6 bar, 1.5–5.5 bar or 5.5–10 bar depending on size. ABS, BV, DNV, GL, LR certified. EPDM or FKM seal options available.

VALVE OVERFLOW STAINLESS STEEL, PN40 #431MGFO DIN 32

IMPA 757238 PCE

Stainless steel overflow/control valve, PN40, DIN 32 flange, spring steel with anti-corrosion treatment. EPDM seal for water, neutral liquids, compressed air and neutral gases; set pressure 0.5–10 bar, adjustable ranges 0.5–2 bar, 1.5–6 bar, 1.5–5.5 bar or 5.5–10 bar depending on size. ABS, BV, DNV, GL, LR certified. EPDM or FKM seal options available.

VALVE OVERFLOW STAINLESS STEEL, PN40 #431MGFO DIN 40

IMPA 757239 PCE

Stainless steel overflow/control valve, PN40, DIN 40 flange, spring steel with anti-corrosion treatment. EPDM seal for water, neutral liquids, compressed air and neutral gases; set pressure 0.5–10 bar, adjustable ranges 0.5–2 bar, 1.5–6 bar, 1.5–5.5 bar or 5.5–10 bar depending on size. ABS, BV, DNV, GL, LR certified. EPDM or FKM seal options available.
