IMPA 75 DIN Overflow Valves

Overflow Valves Stainless Steel

"Overflow Valves Stainless Steel" items from the IMPA marine catalogue with IMPA codes and units of measure — order for your vessel from verified suppliers via Geomarine.

Supply these items

No account needed — tell us the port and we’ll source it for your vessel.

Items

5 items

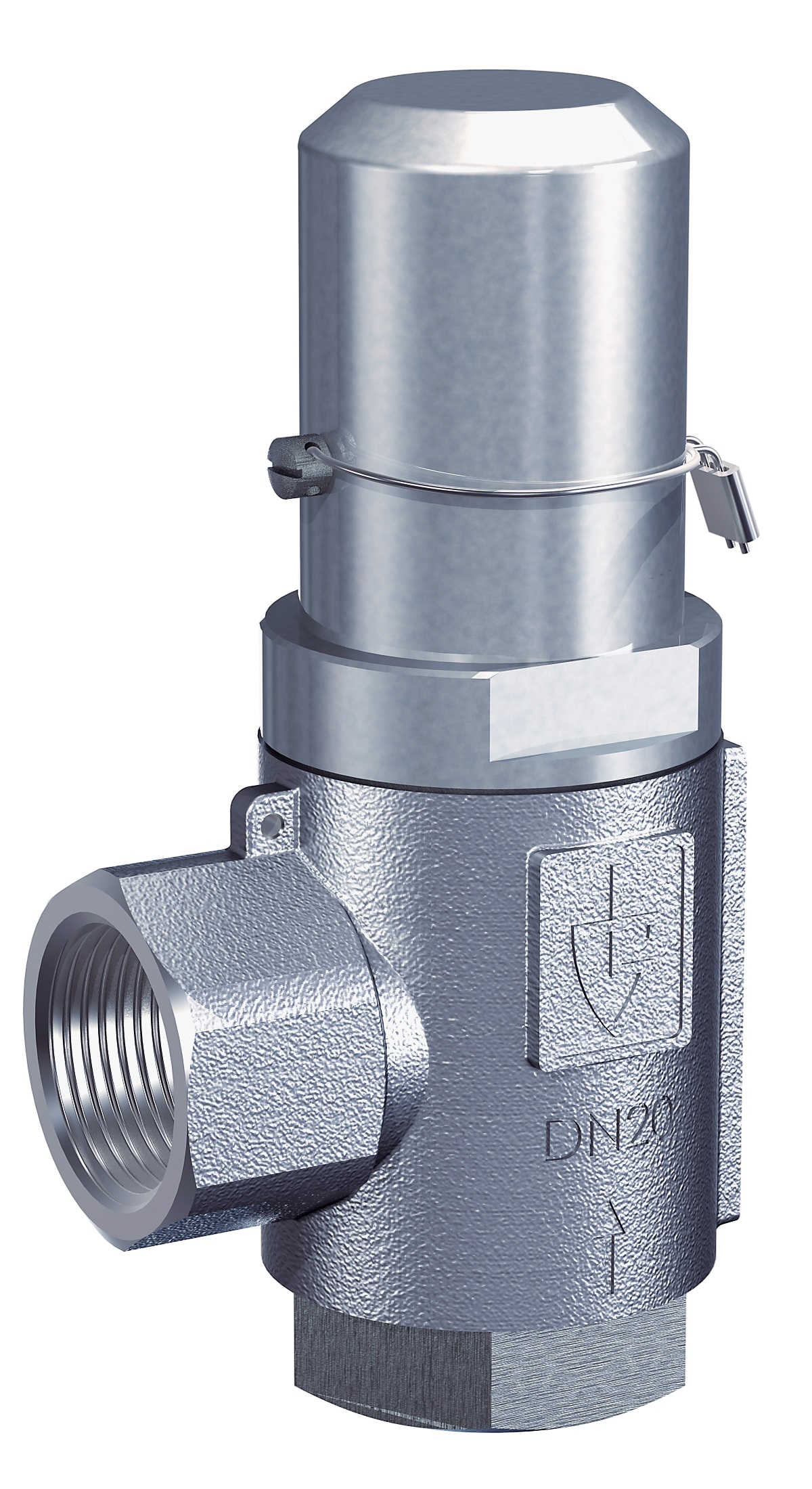

VALVE OVERFLOW S.STEEL DIN、#418TGFO G3/8"

IMPA 756979 PCE

Stainless steel overflow/relief valve model 418TGFO, G3/8", gastight spring housing, rated for liquids, steam and gases; seals available in NBR, FKM, PTFE; adjustment ranges 0.2–1.2 bar, 1.2–3 bar, 2.0–12 bar, 12–30 bar; factory-set options available; ABS, BV, DNV, GL, LR type approved.

VALVE OVERFLOW S.STEEL DIN、#418TGFO G1/2"

IMPA 756980 PCE

Stainless steel overflow/relief valve model 418TGFO, G1/2", gastight spring housing, rated for liquids, steam and gases; seals available in NBR, FKM, PTFE; adjustment ranges 0.2–1.2 bar, 1.2–3 bar, 2.0–12 bar, 12–30 bar; factory-set options available; ABS, BV, DNV, GL, LR type approved.

VALVE OVERFLOW S.STEEL DIN, #418TGFO G3/4"

IMPA 756988 PCE

Stainless steel overflow/relief valve model 418TGFO, G3/4", gastight spring housing, rated for liquids, steam and gases; seals available in NBR, FKM, PTFE; adjustment ranges 0.2–1.2 bar, 1.2–3 bar, 2.0–12 bar, 12–30 bar; factory-set options available; ABS, BV, DNV, GL, LR type approved.

VALVE OVERFLOW S.STEEL DIN, #418TGFO G1"

IMPA 756989 PCE

Stainless steel overflow and control valve (418tGFO model), G1" connection, gastight spring housing. Handles liquids, steam and gases. Available seals: NBR, FKM, PTFE. Pressure adjustment ranges: 0.2–1.2 bar, 1.2–3 bar, 2.0–12 bar, 12–30 bar. Approved by ABS, Bureau Veritas, DNV, GL, LR. Supplied unset or factory-set and sealed.

VALVE OVERFLOW S.STEEL DIN, #418TGFO G1-1/4"

IMPA 756990 PCE

Stainless steel overflow and control valve (418tGFO model), G1¼" connection, gastight spring housing. Handles liquids, steam and gases. Available seals: NBR, FKM, PTFE. Pressure adjustment ranges: 0.2–1.2 bar, 1.2–3 bar, 2.0–12 bar, 12–30 bar. Approved by ABS, Bureau Veritas, DNV, GL, LR. Supplied unset or factory-set and sealed.
