Ventilations / Fans

FAN VENTILATION ELEC PORTABLE, 142MM AC100V 1-PHASE

Portable electric ventilation fan, 142 mm, 100 V AC single-phase, with bell-mouth casing for removing hot air and gases from tanks or work areas. Air ducts sold separately.

FAN VENTILATION ELEC PORTABLE, 200MM AC100V 1-PHASE

Portable electric ventilation fan, 200 mm, 100 V AC single-phase, with bell-mouth casing for removing hot air and gases from tanks or work areas. Air ducts sold separately.

FAN VENTILATION ELEC PORTABLE, 280MM AC100V 1-PHASE

Portable electric ventilation fan, 280 mm, 100 V AC single-phase, with bell-mouth casing for removing hot air and gases from tanks or work areas. Air ducts sold separately.

FAN VENTILATION ELEC PORTABLE, 200MM AC200V 1-PHASE

Portable electric ventilation fan, 200 mm, 200 V AC single-phase, with bell-mouth casing for removing hot air and gases from tanks or work areas. Air ducts sold separately.

FAN VENTILATION ELEC PORTABLE, 280MM AC200V 1-PHASE

Portable electric ventilation fan, 280 mm, AC200V 1-phase. Bell-mouth casing removes hot air and noxious gases from tanks or work areas whilst supplying fresh air. Air ducts sold separately.

FAN VENTILATION ELEC PORTABLE, 400MM AC200V 3-PHASE

Portable electric ventilation fan, 400 mm, AC200V 3-phase. Bell-mouth casing removes hot air and noxious gases from tanks or work areas whilst supplying fresh air. Air ducts sold separately.

FAN VENTILATION ELEC PORTABLE, 500MM AC200V 3-PHASE

Portable electric ventilation fan, 500 mm, AC200V 3-phase. Bell-mouth casing removes hot air and noxious gases from tanks or work areas whilst supplying fresh air. Air ducts sold separately.

AIR MOOVER PORTABLE 3-HP, AIRFLOW 43-53 M3/MIN DIA 185MM

Portable pneumatic air amplifier, 3 hp, 43–53 m³/min airflow, 185 mm diameter, cast aluminium construction, zero maintenance ejector suitable for confined space ventilation and hazardous areas.

AIR MOOVER PORTABLE 6-HP, AIRFLOW 113-138M3/MIN DIA305MM

Portable pneumatic air amplifier, 6 hp, 113–138 m³/min airflow, 305 mm diameter, cast aluminium construction, zero maintenance ejector suitable for confined space ventilation and hazardous areas.

FAN JET AIR MOVER RUSTIBUS, TX-JF20 DIA 50CM

Pneumatic air jet ventilator, 50 cm diameter, reversible for ventilation or exhaust duty; operates 2.75–7.58 bar, T6 aircraft aluminium construction with balanced four-blade propeller and six guide vanes.

FAN JET AIR MOVER RUSTIBUS, TX-JF24 DIA 60CM

Pneumatic air jet ventilator, 60 cm diameter, reversible for ventilation or exhaust duty; operates 2.75–7.58 bar, T6 aircraft aluminium construction with balanced four-blade propeller and six guide vanes.

FAN VENTILATION EXPLOSIONPROOF, 200MM DIAM AC100V 1-PHASE

Explosion-proof ventilation fan, 200 mm diameter, AC 100 V single-phase. Non-sparking electric motor with explosion-proof switch, 5 metres cabtyre cable, and available explosion-proof flexible duct.

FAN VENTILATION EXPLOSIONPROOF, 200MM DIAM AC200V 1-PHASE

Explosion-proof ventilation fan, 200 mm diameter, AC 200 V single-phase. Non-sparking electric motor with explosion-proof switch, 5 metres cabtyre cable, and available explosion-proof flexible duct.

FAN VENTILATION EXPLOSIONPROOF, 282MM DIAM AC100V 1-PHASE

Explosion-proof ventilation fan, 282 mm diameter, AC 100 V single-phase. Non-sparking electric motor with explosion-proof switch, 5 metres cabtyre cable, and available explosion-proof flexible duct.

FAN VENTILATION EXPLOSIONPROOF, 282MM DIAM AC200V 1-PHASE

Explosion-proof ventilation fan, 282 mm diameter, AC 200 V single-phase. Non-sparking electric motor with explosion-proof switch, 5 metres cabtyre cable, and available explosion-proof flexible duct.

VENTILATION TUBE EXPLOSION, PROOF D200 X PITCH150MM X 5MTR

VENTILATION TUBE EXPLOSION, PROOF D300 X PITCH150MM X 5MTR

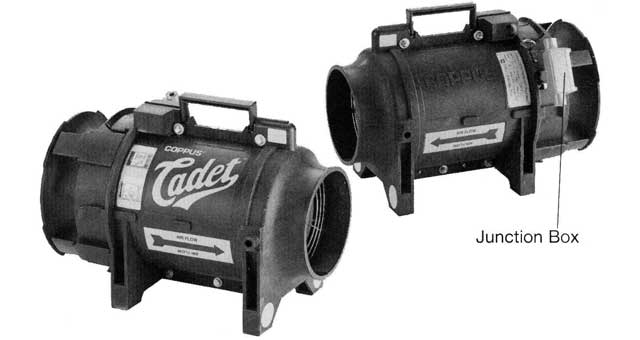

FAN VENTILATION EXPLOSIONPROOF, 330MM DIAM AC115V 60HZ VEP1

Explosion-proof ventilation fan, 330 mm diameter, AC115V 60Hz VEP1. Motor meets NEC Class 1, Division 1, Group D; Class II, Division 1, Groups E, F, G. Conductive polymer construction dissipates static charge safely.

FAN VENTILATION EXPLOSIONPROOF, 330MM DIAM AC230V 60HZ VEP3

Explosion-proof ventilation fan, 330 mm diameter, AC230V 60Hz VEP3. Motor meets NEC Class 1, Division 1, Group D; Class II, Division 1, Groups E, F, G. Conductive polymer construction dissipates static charge safely.

FAN VENTILATION PNEUMATIC, PORTABLE RF-12 DIA305MM

Pneumatic ventilation fan (RF-12, 305mm diameter) powered by compressed air for use with or without ducting in confined spaces such as tanks and hatches; removes gas and fume hazards.

FAN VENTILATION PNEUMATIC, PORTABLE RF-16 DIA405MM

Pneumatic ventilation fan (RF-16, 405mm diameter) powered by compressed air for use with or without ducting in confined spaces such as tanks and hatches; removes gas and fume hazards.

BLOWER DECK MOUNT VENTURI, AIR MOVER 113-138M3/MIN

Venturi air mover deck blower, 113–138 m³/min capacity. Aluminium powder-coated construction, spark and corrosion resistant; 15 kg weight. Mates with 320 mm Butterworth deck opening for supply or exhaust; accepts 12 inch flexible duct. Operates on 100 psig compressed air.

GAS FREEING FAN PNEUMATIC, PORTABLE VP950AS 9000M3/HR

Pneumatic portable fan, 316 stainless steel construction, ATEX-approved non-sparking design for gas freeing operations. VP950AS rated 9000 m³/hr with integral direct-in-line drive, suitable for oil, gas, product, chemical, LR2, LR1, MR and LPG vessels. Operates in supply or extract mode; ancillary equipment (hoses, ducting, fittings, trolley) available separately.

MOVER AIR VENTURITYPE RUSTIBUS, TX3AMS SHORT 1.75M3/[email protected]

Rustibus TX3AMS short venturi air mover, 1.75 m³/min @ 5.5 bar. Operates on compressed air or steam; suitable for fume dispersal and confined space ventilation with no moving parts.

MOVER AIR VENTURITYPE RUSTIBUS, TX3AM 1.75M3/[email protected]

Rustibus TX3AM venturi air mover, 1.75 m³/min @ 5.5 bar. Operates on compressed air or steam; suitable for fume dispersal and confined space ventilation with no moving parts.

MOVER AIR VENTURITYPE RUSTIBUS, TX6AM 3.51M3/[email protected]

Rustibus TX6AM venturi air mover, 3.51 m³/min @ 5.5 bar. Operates on compressed air or steam; suitable for fume dispersal and confined space ventilation with no moving parts.

MOVER AIR VENTURITYPE RUSTIBUS, TX8AM 5.46M3/[email protected]

Rustibus TX8AM venturi air mover, 5.46 m³/min @ 5.5 bar. Operates on compressed air or steam; suitable for fume dispersal and confined space ventilation with no moving parts.

MOVER AIR VENTURITYPE RUSTIBUS, TX10AM 7.75M3/[email protected]

Rustibus TX10AM venturi air mover, 7.75 m³/min @ 5.5 bar. Operates on compressed air or steam; suitable for fume dispersal and confined space ventilation with no moving parts.

TURBINE FAN WATER DRIVEN, MODEL KWF-300M 70-220M3/MIN

Water-driven turbine fan model KWF-300M, 70–220 m³/min; non-sparking construction with corrosion-resistant coating; for tank ventilation in enclosed areas. Inlet/outlet water hoses ordered separately.

TURBINE FAN WATER DRIVEN, MODEL KWF-400M 100-290M3/MIN

Water-driven turbine fan model KWF-400M, 100–290 m³/min; non-sparking construction with corrosion-resistant coating; for tank ventilation in enclosed areas. Inlet/outlet water hoses ordered separately.

TURBINE FAN WATER DRIVEN, MODEL C-12AWC 83-142M3/MIN

Water-driven turbine fan model C-12AWC, 83–142 m³/min; non-sparking construction with corrosion-resistant coating; for tank ventilation in enclosed areas. Inlet/outlet water hoses ordered separately.

TURBINE FAN WATER DRIVEN, MODEL C-15AWC 123-210M3/MIN

Water-driven turbine fan model C-15AWC, 123–210 m³/min; non-sparking construction with corrosion-resistant coating; for tank ventilation in enclosed areas. Inlet/outlet water hoses ordered separately.

FAN GAS FREEING WATER DRIVEN, PORTABLE VP800W 8700M3/HR

Water-driven portable gas freeing fan, VP800W model, 8700 m³/hr capacity; non-sparking design suitable for tanker ventilation; reversible for supply or extract; ATX approved. Hoses and ancillary equipment sold separately.

FAN GAS FREEING WATER DRIVEN, PORTABLE VP1350W 14350M3/HR

Water-driven portable gas freeing fan, VP1350W model, 14350 m³/hr capacity; non-sparking design suitable for tanker ventilation; reversible for supply or extract; ATX approved. Hoses and ancillary equipment sold separately.

TURBINE FAN STEAM/PNEUMATIC, DRIVEN MODEL KTF300

Steam or pneumatic-driven turbine fan model KTF300 for large-area drying and ventilation on vessels. Inlet/exhaust steam hoses, coupling and air duct hoses ordered separately.

TURBINE FAN STEAM/PNEUMATIC, DRIVEN MODEL KTF400

Steam or pneumatic-driven turbine fan model KTF400 for large-area drying and ventilation on vessels. Inlet/exhaust steam hoses, coupling and air duct hoses ordered separately.

TURBINE FAN STEAM/PNEUMATIC, DRIVEN MODEL C-15A

Steam or pneumatic-driven turbine fan model C-15A for large-area drying and ventilation on vessels. Inlet/exhaust steam hoses, coupling and air duct hoses ordered separately.

TURBINE FAN STEAM/PNEUMATIC, DRIVEN MODEL C-12A

Steam or pneumatic-driven turbine fan model C-12A for large-area drying and ventilation on vessels. Inlet/exhaust steam hoses, coupling and air duct hoses ordered separately.

FAN GAS FREEING PORTABLE, JETFAN 65 COMPRESSED AIR

Jetfan 65 portable gas freeing fan, compressed air driven. Suitable for small to mid-tonnage vessels in confined spaces, cofferdams and double bottoms. Switchable between penetration and extraction modes. Also available with steam or hydraulic drive.

FAN GAS FREEING PORTABLE, JETFAN 65 STEAM

Jetfan 65 portable gas freeing fan, steam driven. Suitable for small to mid-tonnage vessels in confined spaces, cofferdams and double bottoms. Switchable between penetration and extraction modes. Also available with compressed air or hydraulic drive.
