Chain Hoists

HOIST CHAIN ELEC AC120V 1-PH, 100KG MAX 3MTR

IMPA 591301 SET

Electric chain hoist, AC 120V single-phase, 100 kg capacity, 3 m lift; dual brake system with mechanical load brake and regenerative brake; nickel-plated load chain; suitable for engine room and facility maintenance.

HOIST CHAIN ELEC AC120V 1-PH, 240KG MAX 3MTR

IMPA 591302 SET

Electric chain hoist, AC 120V single-phase, 240 kg capacity, 3 m lift; dual brake system with mechanical load brake and regenerative brake; nickel-plated load chain; suitable for engine room and facility maintenance.

HOIST CHAIN ELEC AC120V 1-PH, 480KG MAX 3MTR

IMPA 591303 SET

Electric chain hoist, AC 120V single-phase, 480 kg capacity, 3 m lift; dual brake system with mechanical load brake and regenerative brake; nickel-plated load chain; suitable for engine room and facility maintenance.

HOIST CHAIN ELEC AC240V 1-PH, 100KG MAX 3MTR

IMPA 591306 SET

Electric chain hoist, AC 240V single-phase, 100 kg capacity, 3 m lift; dual brake system with mechanical load brake and regenerative brake; nickel-plated load chain; suitable for engine room and facility maintenance.

HOIST CHAIN ELEC AC240V 1-PH, 160KG MAX 3MTR

IMPA 591307 SET

Electric chain hoist, AC 240V single-phase, 160 kg capacity, 3 m lift; dual brake system with mechanical load brake and regenerative brake; nickel-plated load chain; suitable for engine room and facility maintenance.

HOIST CHAIN ELEC AC240V 1-PH, 240KG MAX 3MTR

IMPA 591308 SET

Electric chain hoist, AC 240V single-phase, 240 kg capacity, 3 m lift; dual brake system with mechanical load brake and regenerative brake; nickel-plated load chain; suitable for engine room and facility maintenance.

HOIST CHAIN PNEUMATIC 0.5TON, 3MTR 10MTR/MIN

IMPA 591352 SET

Pneumatic chain hoist, 0.5 ton capacity, 3 m lift, 10 m/min. Air-powered with variable speed control; no electrical connection or fire hazard.

HOIST CHAIN PNEUMATIC 1TON, 3MTR 5.8MTR/MIN

IMPA 591354 SET

Pneumatic chain hoist, 1 ton capacity, 3 m lift, 5.8 m/min. Air-powered with variable speed control; no electrical connection or fire hazard.

HOIST CHAIN PNEUMATIC 2TON, 3MTR 2.9MTR/MIN

IMPA 591355 SET

Pneumatic chain hoist, 2 ton capacity, 3 m lift, 2.9 m/min. Air-powered with variable speed control; no electrical connection or fire hazard.

HOIST CHAIN PNEUMATIC 3TON, 3MTR 5.4MTR/MIN

IMPA 591356 SET

Pneumatic chain hoist, 3 ton capacity, 3 m lift, 5.4 m/min. Air-powered with variable speed control; no electrical connection or fire hazard.

HOIST CHAIN PNEUMATIC 3TON, 3MTR 1.4MTR/MIN

IMPA 591357 SET

Pneumatic chain hoist, 3 ton capacity, 3 m lift, 1.4 m/min. Compact, lightweight design with pilot-controlled speed, integral automatic lubrication, and self-locking worm gear brake. Requires 0.59 MPa (6 kgf/cm²) air pressure. Explosion-proof.

HOIST CHAIN PNEUMATIC 5TON, 3MTR 2.7MTR/MIN

IMPA 591358 SET

Pneumatic chain hoist, 5 ton capacity, 3 m lift, 2.7 m/min. Air-powered with variable speed control; no electrical connection or fire hazard.

HOIST CHAIN PNEUMATIC 10TON, 3MTR 1.6MTR/MIN

IMPA 591359 SET

Pneumatic chain hoist, 10 ton capacity, 3 m lift, 1.6 m/min. Air-powered with variable speed control; no electrical connection or fire hazard.

HOIST CHAIN PNEUMATIC 25TON, 3MTR 1.4MTR/MIN

IMPA 591361 SET

Pneumatic chain hoist, 25 ton capacity, 3 m lift, 1.4 m/min. Air-powered with variable speed control; no electrical connection or fire hazard.

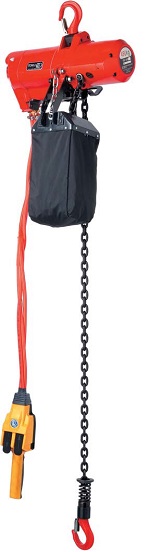

HOIST CHAIN PNEUMATIC 0.25TON, HIGH SPEED 34MTR/MIN TCS-250P

IMPA 591381 SET

Pneumatic chain hoist, 0.25 ton capacity, 34 m/min speed, model TCS-250P with pendant control. Aluminium housing, adjustable speed limits both directions, 0.6 MPa operating pressure.

HOIST CHAIN PNEUMATIC 0.25TON, HIGH SPEED 34MTR/MIN TCS-250PE

IMPA 591382 SET

Pneumatic chain hoist, 0.25 ton capacity, 34 m/min speed, model TCS-250PE with pendant plus emergency button control. Aluminium housing, adjustable speed limits both directions, 0.6 MPa operating pressure.

HOIST CHAIN PNEUMATIC 0.25TON, HIGH SPEED 34MTR/MIN TCS-250C

IMPA 591383 SET

Pneumatic chain hoist, 0.25 ton capacity, 34 m/min speed, model TCS-250C with cord control. Aluminium housing, adjustable speed limits both directions, 0.6 MPa operating pressure.

HOIST CHAIN PNEUMATIC 0.49TON, HIGH SPEED 17MTR/MIN TCS-500P

IMPA 591384 SET

Pneumatic chain hoist, 0.49 ton capacity, 17 m/min speed, model TCS-500P with pendant control. Aluminium housing, adjustable speed limits both directions, 0.6 MPa operating pressure.

HOIST CHAIN PNEUMATIC 0.49TON, HIGH SPEED 17MTR/MIN TCS-500PE

IMPA 591385 SET

Pneumatic chain hoist, 0.49 ton capacity, 17 m/min speed, model TCS-500PE with pendant plus emergency button control. Aluminium housing, adjustable speed limits both directions, 0.6 MPa operating pressure.

HOIST CHAIN PNEUMATIC 0.49TON, HIGH SPEED 17MTR/MIN TCS-500C

IMPA 591386 SET

Pneumatic chain hoist, 0.49 ton capacity, 17 m/min speed, model TCS-500C with cord control. Aluminium housing, adjustable speed limits both directions, 0.6 MPa operating pressure.

HOIST CHAIN PNEUMATIC 0.99TON, HIGH SPEED 8.5M/MIN TCS-1000P

IMPA 591387 SET

Pneumatic chain hoist, 0.99 ton capacity, 8.5 m/min speed, model TCS-1000P with pendant control. Aluminium housing, adjustable speed limits both directions, 0.6 MPa operating pressure.

HOIST CHAIN PNEUMATIC 0.99TON, HIGH SPEED 8.5M/MIN TCS-1000PE

IMPA 591388 SET

Pneumatic chain hoist, 0.99 ton capacity, 8.5 m/min speed, model TCS-1000PE with pendant plus emergency button control. Aluminium housing, adjustable speed limits both directions, 0.6 MPa operating pressure.

HOIST CHAIN PNEUMATIC 0.99TON, HIGH SPEED 8.5M/MIN TCS-1000C

IMPA 591389 SET

Pneumatic chain hoist, 0.99 ton capacity, 8.5 m/min lift speed. Aluminium housing, adjustable speed limiting on raise and lower, overtravel limit system, self-cooling design. Operating pressure 0.6 MPa. Available with pendant (P), pendant + emergency button (PE), or cord (C) control.

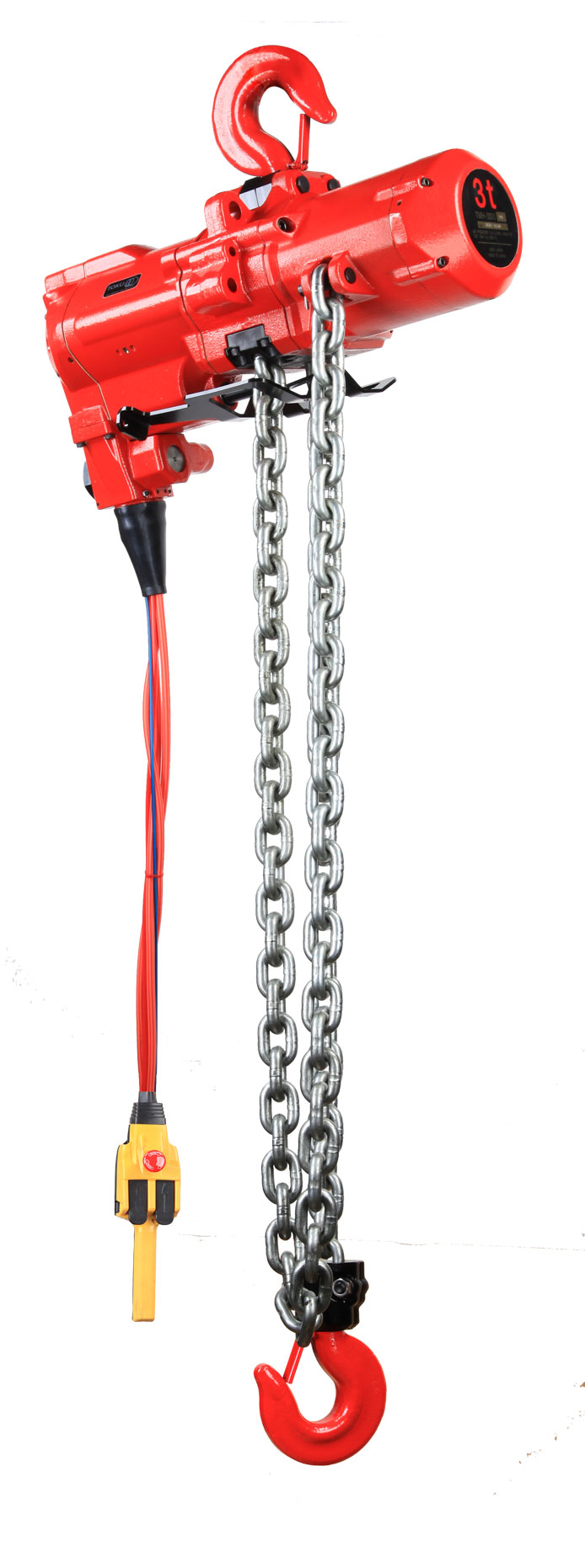

HOIST CHAIN PNEUMATIC 3TON, HIGH SPEED 5.4M/MIN TMH-3000PE

IMPA 591390 SET

Pneumatic chain hoist, 3 ton capacity, 5.4 m/min lift speed. Three-stage planetary gearbox with heat-reduction design. Pin-mount upper hook for trolley conversion. Operating pressure 0.4–0.6 MPa. Model TMH-3000PE with pendant + emergency button control.

HOIST CHAIN PNEUMATIC 3TON, HIGH SPEED 5.4M/MIN TMH-3000C

IMPA 591391 SET

Pneumatic chain hoist, 3 ton capacity, 5.4 m/min lift speed. Three-stage planetary gearbox with heat-reduction design. Pin-mount upper hook for trolley conversion. Operating pressure 0.4–0.6 MPa. Model TMH-3000C with cord control.

HOIST CHAIN PNEUMATIC 6T HIGH, SPEED 2.7MTR/MIN TMH-6000P2E

IMPA 591392 SET

Pneumatic chain hoist, 6 ton capacity, 2.7 m/min lift speed. Three-stage planetary gearbox with heat-reduction design. Pin-mount upper hook for trolley conversion. Operating pressure 0.4–0.6 MPa. Model TMH-6000P2E with pendant + emergency button control.

HOIST CHAIN PNEUMATIC 6TON, HIGH SPEED 2.7M/MIN TMH-6000C2

IMPA 591393 SET

Pneumatic chain hoist, 6 ton capacity, 2.7 m/min lift speed. Three-stage planetary gearbox with heat-reduction design. Pin-mount upper hook for trolley conversion. Operating pressure 0.4–0.6 MPa. Model TMH-6000C2 with cord control.
