IMPA 59 59. Pneumatic & Electrical Tools

Air Line Filters

Browse the product families and items within the "Air Line Filters" sub-group of the IMPA marine catalogue, and order them from verified suppliers via Geomarine.

Families

Items

Product families

Air Line FRL Combinations 5 Air Line Filters 5 Air Line Lubricators 5 Air Line Pressure Regulators 10 In-line Lubricators 4 Mobile Air Filter Lubricator 1

Items in this sub-group

30 items

AIR LINE FILTER PT 1/4

IMPA 590801 PCE

Compressed air line filter PT 1/4 with 5 µm filtration, max pressure 9.9 kgf/cm² and max temperature 60°C. Polycarbonate case with reinforced guard; bracket and auto drain available on request.

AIR LINE FILTER PT 3/8

IMPA 590802 PCE

Compressed air line filter PT 3/8 with 5 µm filtration, max pressure 9.9 kgf/cm² and max temperature 60°C. Polycarbonate case with reinforced guard; bracket and auto drain available on request.

AIR LINE FILTER PT 1/2

IMPA 590803 PCE

Compressed air line filter PT 1/2 with 5 µm filtration, max pressure 9.9 kgf/cm² and max temperature 60°C. Polycarbonate case with reinforced guard; bracket and auto drain available on request.

AIR LINE FILTER PT 3/4

IMPA 590804 PCE

Compressed air line filter PT 3/4 with 5 µm filtration, max pressure 9.9 kgf/cm² and max temperature 60°C. Polycarbonate case with reinforced guard; bracket and auto drain available on request.

AIR LINE FILTER PT 1

IMPA 590805 PCE

Compressed air line filter PT 1 with 5 µm filtration, max pressure 9.9 kgf/cm² and max temperature 60°C. Polycarbonate case with reinforced guard; bracket and auto drain available on request.

AIR LINE PRESSURE REGULATOR, W/PRESSURE GAUGE PT 1/4

IMPA 590806 PCE

Non-relieving pressure regulator with integral gauge, PT 1/4 port. Maximum 9.9 kgf/cm² operating pressure, 60°C maximum temperature.

AIR LINE PRESSURE REGULATOR, W/PRESSURE GAUGE PT 3/8

IMPA 590807 PCE

Non-relieving pressure regulator with integral gauge, PT 3/8 port. Maximum 9.9 kgf/cm² operating pressure, 60°C maximum temperature.

AIR LINE PRESSURE REGULATOR, W/PRESSURE GAUGE PT 1/2

IMPA 590808 PCE

Non-relieving pressure regulator with integral gauge, PT 1/2 port. Maximum 9.9 kgf/cm² operating pressure, 60°C maximum temperature.

AIR LINE PRESSURE REGULATOR, W/PRESSURE GAUGE PT 3/4

IMPA 590809 PCE

Non-relieving pressure regulator with integral gauge, PT 3/4 port. Maximum 9.9 kgf/cm² operating pressure, 60°C maximum temperature.

AIR LINE PRESSURE REGULATOR, W/PRESSURE GAUGE PT 1

IMPA 590810 PCE

Non-relieving pressure regulator with integral gauge, PT 1 port. Maximum 9.9 kgf/cm² operating pressure, 60°C maximum temperature.

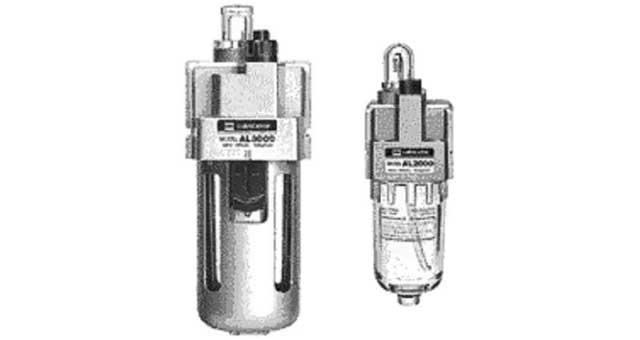

AIR LINE LUBRICATOR PT 1/4

IMPA 590811 PCE

Air line lubricator, PT 1/4″ connection. Maximum working pressure 9.9 kgf/cm² and temperature 60°C. Polycarbonate bowl with protective guard. Use turbine oil ISO VG32 lubricant. Bracket available on request.

AIR LINE LUBRICATOR PT 3/8

IMPA 590812 PCE

Air line lubricator, PT 3/8″ connection. Maximum working pressure 9.9 kgf/cm² and temperature 60°C. Polycarbonate bowl with protective guard. Use turbine oil ISO VG32 lubricant. Bracket available on request.

AIR LINE LUBRICATOR PT 1/2

IMPA 590813 PCE

Air line lubricator, PT 1/2″ connection. Maximum working pressure 9.9 kgf/cm² and temperature 60°C. Polycarbonate bowl with protective guard. Use turbine oil ISO VG32 lubricant. Bracket available on request.

AIR LINE LUBRICATOR PT 3/4

IMPA 590814 PCE

Air line lubricator, PT 3/4″ connection. Maximum working pressure 9.9 kgf/cm² and temperature 60°C. Polycarbonate bowl with protective guard. Use turbine oil ISO VG32 lubricant. Bracket available on request.

AIR LINE LUBRICATOR PT 1

IMPA 590815 PCE

Air line lubricator, PT 1″ connection. Maximum working pressure 9.9 kgf/cm² and temperature 60°C. Polycarbonate bowl with protective guard. Use turbine oil ISO VG32 lubricant. Bracket available on request.

AIR LINE PRESSURE REGULATOR, W/O PRESSURE GAUGE PT 1/4

IMPA 590821 SET

Non-relieving pressure regulator without gauge, PT 1/4 port. Maximum 9.9 kgf/cm² operating pressure, 60°C maximum temperature.

AIR LINE PRESSURE REGULATOR, W/O PRESSURE GAUGE PT 3/8

IMPA 590822 SET

Non-relieving pressure regulator without gauge, PT 3/8 port. Maximum 9.9 kgf/cm² operating pressure, 60°C maximum temperature.

AIR LINE PRESSURE REGULATOR, W/O PRESSURE GAUGE PT 1/2

IMPA 590823 SET

Non-relieving pressure regulator without gauge, PT 1/2 port. Maximum 9.9 kgf/cm² operating pressure, 60°C maximum temperature.

AIR LINE PRESSURE REGULATOR, W/O PRESSURE GAUGE PT 3/4

IMPA 590824 SET

Non-relieving pressure regulator without gauge, PT 3/4 port. Maximum 9.9 kgf/cm² operating pressure, 60°C maximum temperature.

AIR LINE PRESSURE REGULATOR, W/O PRESSURE GAUGE PT 1

IMPA 590825 SET

Non-relieving pressure regulator without gauge, PT 1 port. Maximum 9.9 kgf/cm² operating pressure, 60°C maximum temperature.

AIR LINE F.R.L. COMBINATION, PT 1/4

IMPA 590831 SET

Air line F.R.L. unit (filter, regulator, lubricator) PT 1/4, max. 9.9 kgf/cm² and 60°C, 5 µm filtration.

AIR LINE F.R.L. COMBINATION, PT 3/8

IMPA 590832 SET

Air line F.R.L. unit (filter, regulator, lubricator) PT 3/8, max. 9.9 kgf/cm² and 60°C, 5 µm filtration.

AIR LINE F.R.L. COMBINATION, PT 1/2

IMPA 590833 SET

Air line F.R.L. unit (filter, regulator, lubricator) PT 1/2, max. 9.9 kgf/cm² and 60°C, 5 µm filtration.

AIR LINE F.R.L. COMBINATION, PT 3/4

IMPA 590834 SET

Air line F.R.L. unit (filter, regulator, lubricator) PT 3/4, max. 9.9 kgf/cm² and 60°C, 5 µm filtration.

AIR LINE F.R.L. COMBINATION, PT 1

IMPA 590835 SET

Air line F.R.L. unit (filter, regulator, lubricator) PT 1, max. 9.9 kgf/cm² and 60°C, 5 µm filtration.

AIR FILTER LUBRICATOR MOBILE, RUSTIBUS AIR-PRO 6-8BAR

IMPA 590845 PCE

Mobile air filter-lubricator unit, 6–8 bar. Counter-balance design keeps unit positioned during operation; integral regulator maintains suitable pressure for pneumatic hand tools.

LIBRICATOR IN-LINE RUSTIBUS, TX-0L 0.04LTR

IMPA 590846 PCE

In-line air tool lubricator TX-0L, 0.04 litre capacity, for installation 1.5–2 metres from tool. Adjustable metering valve, sight glass inspection window, repair kits available.

LIBRICATOR IN-LINE RUSTIBUS, TX-1L 0.11LTR

IMPA 590847 PCE

In-line air tool lubricator TX-1L, 0.11 litre capacity, for installation 1.5–2 metres from tool. Adjustable metering valve, sight glass inspection window, repair kits available.

LIBRICATOR IN-LINE RUSTIBUS, TX-2L 0.33LTR

IMPA 590848 PCE

In-line air tool lubricator TX-2L, 0.33 litre capacity, for installation 1.5–2 metres from tool. Adjustable metering valve, sight glass inspection window, repair kits available.

LIBRICATOR IN-LINE RUSTIBUS, TX-3L 0.47LTR

IMPA 590849 PCE

In-line air tool lubricator TX-3L, 0.47 litre capacity, for installation 1.5–2 metres from tool. Adjustable metering valve, sight glass inspection window, repair kits available.
