IMPA 59 59. Pneumatic & Electrical Tools

Air Winches

Browse the product families and items within the "Air Winches" sub-group of the IMPA marine catalogue, and order them from verified suppliers via Geomarine.

Families

Items

Product families

Air Winches 13

Items in this sub-group

13 items

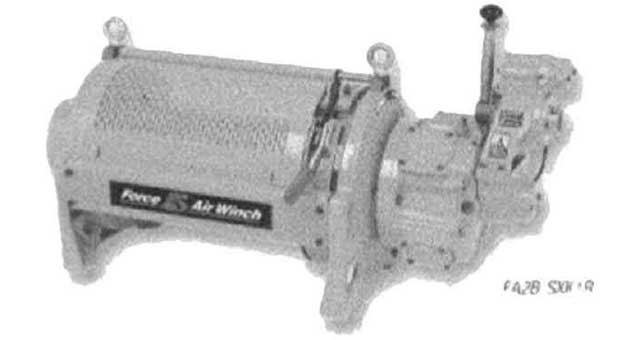

WINCH AIR LIFT 4,000 LBS 16HP, DRUM L20" INGERSOLL-RAND FA2B

IMPA 590621 SET

Pneumatic winch (Ingersoll-Rand FA2B), 4,000 lbs capacity, 16 hp, 20 inch drum; wire rope ordered separately.

WINCH AIR LIFT 5,000 LBS 25HP, DRUM L20" INGERSOLLRAND FA2.5A

IMPA 590622 SET

Pneumatic winch (Ingersoll-Rand FA2.5A), 5,000 lbs capacity, 25 hp, 20 inch drum; wire rope ordered separately.

WINCH AIR LIFT 10,000 LBS 25HP, DRUM L27" INGERSOLLRAND FA5A

IMPA 590623 SET

Pneumatic winch (Ingersoll-Rand FA5A), 10,000 lbs capacity, 25 hp, 27 inch drum; wire rope ordered separately.

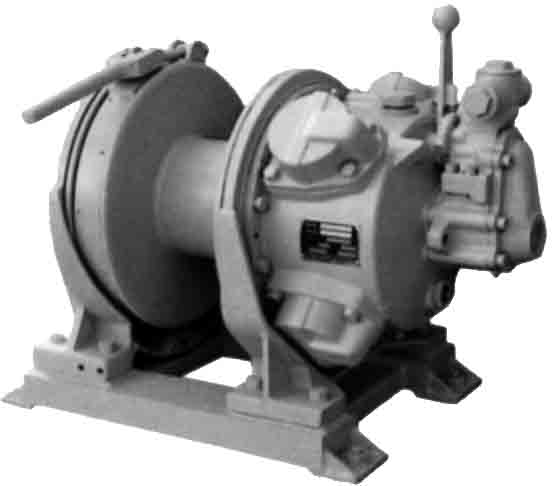

WINCH AIR MANUAL BRAKE 1.73KW, ROPE PULL 0.5TON MODEL:W-05

IMPA 591371 SET

Air winch with manual brake (Model W-05), 1.73 kW, 0.5 tonne rope pull; radial piston motor, lever control.

WINCH AIR MANUAL BRAKE 7.15KW, ROPE PULL 1TON MODEL:W-10

IMPA 591372 SET

Air winch with manual brake (Model W-10), 7.15 kW, 1 tonne rope pull; radial piston motor, lever control.

WINCH AIR MANUAL BRAKE 7.15KW, ROPE PULL 2TON MODEL:W-20

IMPA 591373 SET

Air winch with manual brake (Model W-20), 7.15 kW, 2 tonne rope pull; radial piston motor, lever control.

WINCH AIR MANUAL BRAKE 12KW, ROPE PULL 3TON MODEL:W-30

IMPA 591374 SET

Pneumatic winch with radial piston air motor and control valve, 12 kW, 3 tonne rope pull capacity, model W-30. Manual brake operation via control lever; compact and portable design suitable for dusty environments. Delivers continuous full-load operation without spark generation or heat damage risk.

WINCH AIR MANUAL BRAKE 12KW, ROPE PULL 5TON MODEL:W-50

IMPA 591375 SET

Pneumatic winch with radial piston air motor and control valve, 12 kW, 5 tonne rope pull capacity, model W-50. Manual brake operation via control lever; compact and portable design suitable for dusty environments. Delivers continuous full-load operation without spark generation or heat damage risk.

WINCH AIR AUTO BRAKE 1.73KW, ROPE PULL 0.5TON MODEL:W-05

IMPA 591376 SET

Pneumatic winch with radial piston air motor and control valve, 1.73 kW, 0.5 tonne rope pull capacity, model W-05. Auto brake with lever control; compact portable unit tolerant of dusty conditions. Non-sparking operation with overload protection and continuous full-capacity capability.

WINCH AIR AUTO BRAKE 7.15KW, ROPE PULL 1TON MODEL:W-10

IMPA 591377 SET

Pneumatic winch with radial piston air motor and control valve, 7.15 kW, 1 tonne rope pull capacity, model W-10. Auto brake with lever control; compact portable unit tolerant of dusty conditions. Non-sparking operation with overload protection and continuous full-capacity capability.

WINCH AIR AUTO BRAKE 7.15KW, ROPE PULL 2TON MODEL:W-20

IMPA 591378 SET

Pneumatic winch with radial piston air motor and control valve, 7.15 kW, 2 tonne rope pull capacity, model W-20. Auto brake with lever control; compact portable unit tolerant of dusty conditions. Non-sparking operation with overload protection and continuous full-capacity capability.

WINCH AIR AUTO BRAKE 12KW, ROPE PULL 3TON MODEL:W-30

IMPA 591379 SET

Pneumatic winch with radial piston air motor and control valve, 12 kW, 3 tonne rope pull capacity, model W-30. Auto brake with lever control; compact portable unit tolerant of dusty conditions. Non-sparking operation with overload protection and continuous full-capacity capability.

WINCH AIR AUTO BRAKE 12KW, ROPE PULL 5TON MODEL:W-50

IMPA 591380 SET

Pneumatic winch with radial piston air motor and control valve, 12 kW, 5 tonne rope pull capacity, model W-50. Auto brake with lever control; compact portable unit tolerant of dusty conditions. Non-sparking operation with overload protection and continuous full-capacity capability.
