IMPA 73 Flexible Pipe Couplings

Expansion Joints Rubber

"Expansion Joints Rubber " items from the IMPA marine catalogue with IMPA codes and units of measure — order for your vessel from verified suppliers via Geomarine.

Supply these items

No account needed — tell us the port and we’ll source it for your vessel.

Items

39 items

JOINT EXPANSION RUBBER FLANGED, SINGLE ARCH SPOOL 10KG-50MM

IMPA 735101 PCE

Single-arch rubber expansion joint with flanges, 50 mm bore, 10 kg rating. Features acid/chemical-resistant inner lining, oil and heat-resistant outer rubber, reinforced with cloth and wire, retaining ring fitted.

JOINT EXPANSION RUBBER FLANGED, SINGLE ARCH SPOOL 10KG-65MM

IMPA 735102 PCE

Single-arch rubber expansion joint with flanges, 65 mm bore, 10 kg rating. Features acid/chemical-resistant inner lining, oil and heat-resistant outer rubber, reinforced with cloth and wire, retaining ring fitted.

JOINT EXPANSION RUBBER FLANGED, SINGLE ARCH SPOOL 10KG-75MM

IMPA 735103 PCE

Single-arch rubber expansion joint with flanges, 75 mm bore, 10 kg rating. Features acid/chemical-resistant inner lining, oil and heat-resistant outer rubber, reinforced with cloth and wire, retaining ring fitted.

JOINT EXPANSION RUBBER FLANGED, SINGLE ARCH SPOOL 10KG-100MM

IMPA 735104 PCE

Single-arch rubber expansion joint with flanges, 100 mm bore, 10 kg rating. Features acid/chemical-resistant inner lining, oil and heat-resistant outer rubber, reinforced with cloth and wire, retaining ring fitted.

JOINT EXPANSION RUBBER FLANGED, SINGLE ARCH SPOOL 10KG-125MM

IMPA 735105 PCE

Single-arch rubber expansion joint with flanges, 125 mm bore, 10 kg rating. Features acid/chemical-resistant inner lining, oil and heat-resistant outer rubber, reinforced with cloth and wire, retaining ring fitted.

JOINT EXPANSION RUBBER FLANGED, SINGLE ARCH SPOOL 10KG-150MM

IMPA 735106 PCE

Single-arch rubber expansion joint with flanges, 150 mm bore, 10 kg rating. Features acid/chemical-resistant inner lining, oil and heat-resistant outer rubber, reinforced with cloth and wire, retaining ring fitted.

JOINT EXPANSION RUBBER FLANGED, SINGLE ARCH SPOOL 10KG-175MM

IMPA 735107 PCE

Single-arch rubber expansion joint with flanges, 175 mm bore, 10 kg rating. Features acid/chemical-resistant inner lining, oil and heat-resistant outer rubber, reinforced with cloth and wire, retaining ring fitted.

JOINT EXPANSION RUBBER FLANGED, SINGLE ARCH SPOOL 10KG-200MM

IMPA 735108 PCE

Single-arch rubber expansion joint with flanges, 200 mm bore, 10 kg rating. Features acid/chemical-resistant inner lining, oil and heat-resistant outer rubber, reinforced with cloth and wire, retaining ring fitted.

JOINT EXPANSION RUBBER FLANGED, SINGLE ARCH SPOOL 10KG-225MM

IMPA 735109 PCE

Single-arch rubber expansion joint with flanges, 225 mm bore, 10 kg rating. Features acid/chemical-resistant inner lining, oil and heat-resistant outer rubber, reinforced with cloth and wire, retaining ring fitted.

JOINT EXPANSION RUBBER FLANGED, SINGLE ARCH SPOOL 10KG-250MM

IMPA 735110 PCE

Single-arch rubber expansion joint with flanges, 250 mm bore, 10 kg rating. Features acid/chemical-resistant inner lining, oil and heat-resistant outer rubber, reinforced with cloth and wire, retaining ring fitted.

JOINT EXPANSION RUBBER FLANGED, SINGLE ARCH SPOOL 10KG-300MM

IMPA 735111 PCE

Single-arch rubber expansion joint with flanges, 300 mm bore, 10 kg rating. Features acid/chemical-resistant inner lining, oil and heat-resistant outer rubber, reinforced with cloth and wire, retaining ring fitted.

JOINT EXPANSION RUBBER FLANGED, DOUBLE ARCH SPOOL 10KG-50MM

IMPA 735121 PCE

Double-arch rubber expansion joint with flanges, 50 mm bore, 10 kg rating. Features acid/chemical-resistant inner lining, oil and heat-resistant outer rubber, reinforced with cloth and wire, retaining ring fitted.

JOINT EXPANSION RUBBER FLANGED, DOUBLE ARCH SPOOL 10KG-65MM

IMPA 735122 PCE

Double-arch rubber expansion joint with flanges, 65 mm bore, 10 kg rating. Features acid/chemical-resistant inner lining, oil and heat-resistant outer rubber, reinforced with cloth and wire, retaining ring fitted.

JOINT EXPANSION RUBBER FLANGED, DOUBLE ARCH SPOOL 10KG-75MM

IMPA 735123 PCE

Double-arch rubber expansion joint with flanges, 75 mm bore, 10 kg rating. Features acid/chemical-resistant inner lining, oil and heat-resistant outer rubber, reinforced with cloth and wire, retaining ring fitted.

JOINT EXPANSION RUBBER FLANGED, DOUBLE ARCH SPOOL 10KG-100MM

IMPA 735124 PCE

Double-arch rubber expansion joint with flanges, 100 mm bore, 10 kg rating. Features acid/chemical-resistant inner lining, oil and heat-resistant outer rubber, reinforced with cloth and wire, retaining ring fitted.

JOINT EXPANSION RUBBER FLANGED, DOUBLE ARCH SPOOL 10KG-125MM

IMPA 735125 PCE

Double-arch rubber expansion joint with flanges, 125 mm bore, 10 kg rating. Features acid/chemical-resistant inner lining, oil and heat-resistant outer rubber, reinforced with cloth and wire, retaining ring fitted.

JOINT EXPANSION RUBBER FLANGED, DOUBLE ARCH SPOOL 10KG-150MM

IMPA 735126 PCE

Double-arch rubber expansion joint with flanges, 150 mm bore, 10 kg rating. Features acid/chemical-resistant inner lining, oil and heat-resistant outer rubber, reinforced with cloth and wire, retaining ring fitted.

JOINT EXPANSION RUBBER FLANGED, DOUBLE ARCH SPOOL 10KG-175MM

IMPA 735127 PCE

Double-arch rubber expansion joint with flanges, 175 mm bore, 10 kg rating. Features acid/chemical-resistant inner lining, oil and heat-resistant outer rubber, reinforced with cloth and wire, retaining ring fitted.

JOINT EXPANSION RUBBER FLANGED, DOUBLE ARCH SPOOL 10KG-200MM

IMPA 735128 PCE

Double-arch flanged expansion joint, 200 mm, 10 kg. Nitrile inner lining, chloroprene outer cover, reinforced with cloth and iron wire, with retaining ring and flange.

JOINT EXPANSION RUBBER FLANGED, DOUBLE ARCH SPOOL 10KG-225MM

IMPA 735129 PCE

Double-arch flanged expansion joint, 225 mm, 10 kg. Nitrile inner lining, chloroprene outer cover, reinforced with cloth and iron wire, with retaining ring and flange.

JOINT EXPANSION RUBBER FLANGED, DOUBLE ARCH SPOOL 10KG-250MM

IMPA 735130 PCE

Double-arch flanged expansion joint, 250 mm, 10 kg. Nitrile inner lining, chloroprene outer cover, reinforced with cloth and iron wire, with retaining ring and flange.

JOINT EXPANSION RUBBER FLANGED, DOUBLE ARCH SPOOL 10KG-300MM

IMPA 735131 PCE

Double-arch flanged expansion joint, 300 mm, 10 kg. Nitrile inner lining, chloroprene outer cover, reinforced with cloth and iron wire, with retaining ring and flange.

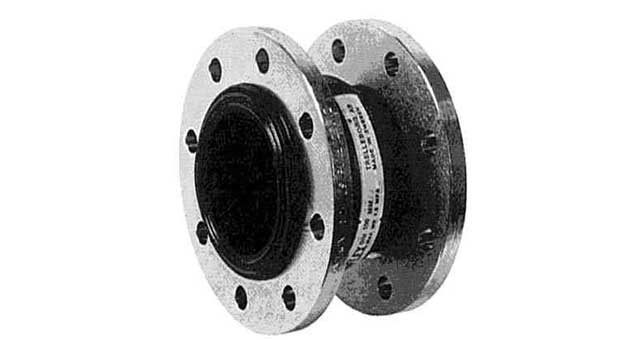

JOINT EXPANSION RUBBER BELLOW, DIN MODEL 5570 ND25 L:130MM

IMPA 735141 PCE

DIN 5570 rubber bellows expansion joint ND25, L 130 mm, with nitrile internal and chloroprene external surfaces; accommodates thermal expansion and vibration isolation in pipe systems. Type-approved by DNV, GL and ABS.

JOINT EXPANSION RUBBER BELLOW, DIN MODEL 5570 ND32 L130-150MM

IMPA 735142 PCE

DIN 5570 rubber bellows expansion joint ND32, L 130–150 mm, with nitrile internal and chloroprene external surfaces; accommodates thermal expansion and vibration isolation in pipe systems. Type-approved by DNV, GL and ABS.

JOINT EXPANSION RUBBER BELLOW, DIN MODEL 5570 ND40 L130-150MM

IMPA 735143 PCE

DIN 5570 rubber bellows expansion joint ND40, L 130–150 mm, with nitrile internal and chloroprene external surfaces; accommodates thermal expansion and vibration isolation in pipe systems. Type-approved by DNV, GL and ABS.

JOINT EXPANSION RUBBER BELLOW, DIN MODEL 5570 ND50 L130-150MM

IMPA 735144 PCE

DIN 5570 rubber bellows expansion joint ND50, L 130–150 mm, with nitrile internal and chloroprene external surfaces; accommodates thermal expansion and vibration isolation in pipe systems. Type-approved by DNV, GL and ABS.

JOINT EXPANSION RUBBER BELLOW, DIN MODEL 5570 ND65 L130-150MM

IMPA 735145 PCE

DIN 5570 rubber bellows expansion joint ND65, L 130–150 mm, with nitrile internal and chloroprene external surfaces; accommodates thermal expansion and vibration isolation in pipe systems. Type-approved by DNV, GL and ABS.

JOINT EXPANSION RUBBER BELLOW, DIN MODEL 5570 ND80 L130-150MM

IMPA 735146 PCE

DIN 5570 rubber bellows expansion joint ND80, L 130–150 mm, with nitrile internal and chloroprene external surfaces; accommodates thermal expansion and vibration isolation in pipe systems. Type-approved by DNV, GL and ABS.

JOINT EXPANSION RUBBER BELLOW, DIN MODEL5570 ND100 L130-150MM

IMPA 735147 PCE

DIN 5570 rubber bellows expansion joint ND100, L 130–150 mm, with nitrile internal and chloroprene external surfaces; accommodates thermal expansion and vibration isolation in pipe systems. Type-approved by DNV, GL and ABS.

JOINT EXPANSION RUBBER BELLOW, DIN MODEL5570 ND125 L130-150MM

IMPA 735148 PCE

DIN 5570 rubber bellows expansion joint ND125, L 130–150 mm, with nitrile internal and chloroprene external surfaces; accommodates thermal expansion and vibration isolation in pipe systems. Type-approved by DNV, GL and ABS.

JOINT EXPANSION RUBBER BELLOW, DIN MODEL5570 ND150 L130-150MM

IMPA 735149 PCE

DIN 5570 rubber bellows expansion joint ND150, L 130–150 mm, with nitrile internal and chloroprene external surfaces; accommodates thermal expansion and vibration isolation in pipe systems. Type-approved by DNV, GL and ABS.

JOINT EXPANSION RUBBER BELLOW, DIN MODEL5570 ND200 L130-150MM

IMPA 735150 PCE

DIN 5570 rubber bellows expansion joint ND200, L 130–150 mm, with nitrile internal and chloroprene external surfaces; accommodates thermal expansion and vibration isolation in pipe systems. Type-approved by DNV, GL and ABS.

JOINT EXPANSION RUBBER BELLOW, DIN MODEL5570 ND250 L130-150MM

IMPA 735151 PCE

DIN 5570 rubber bellows expansion joint ND250, L 130–150 mm, with nitrile internal and chloroprene external surfaces; accommodates thermal expansion and vibration isolation in pipe systems. Type-approved by DNV, GL and ABS.

JOINT EXPANSION RUBBER BELLOW, DIN MODEL5570 ND300 L130-150MM

IMPA 735152 PCE

DIN 5570 rubber bellows expansion joint ND300, L 130–150 mm, with nitrile internal and chloroprene external surfaces; accommodates thermal expansion and vibration isolation in pipe systems. Type-approved by DNV, GL and ABS.

JOINT EXPANSION RUBBER BELLOW, DIN MODEL 5570 ND350 L:200MM

IMPA 735153 PCE

DIN 5570 rubber bellows expansion joint ND350, L 200 mm, with nitrile internal and chloroprene external surfaces; accommodates thermal expansion and vibration isolation in pipe systems. Type-approved by DNV, GL and ABS.

JOINT EXPANSION RUBBER BELLOW, DIN MODEL 5570 ND400 L:200MM

IMPA 735154 PCE

DIN 5570 rubber bellows expansion joint ND400, L 200 mm, with nitrile internal and chloroprene external surfaces; accommodates thermal expansion and vibration isolation in pipe systems. Type-approved by DNV, GL and ABS.

JOINT EXPANSION RUBBER BELLOW, DIN MODEL 5570 ND450 L:200MM

IMPA 735155 PCE

DIN 5570 rubber bellows expansion joint ND450, L 200 mm, with nitrile internal and chloroprene external surfaces; accommodates thermal expansion and vibration isolation in pipe systems. Type-approved by DNV, GL and ABS.

JOINT EXPANSION RUBBER BELLOW, DIN MODEL 5570 ND500 L:200MM

IMPA 735156 PCE

DIN 5570 rubber bellows expansion joint ND500, L 200 mm, with nitrile internal and chloroprene external surfaces; accommodates thermal expansion and vibration isolation in pipe systems. Type-approved by DNV, GL and ABS.

JOINT EXPANSION RUBBER BELLOW, DIN MODEL 5570 ND600 L:200MM

IMPA 735157 PCE

DIN 5570 ND600 expansion joint with 200 mm length; nitrile internal and chloroprene external bellows for thermal movement, vibration damping and pipe stress relief. Type approved by DNV, GL and ABS.
