Flexible Pipe Couplings

Expansion Joint Sleeve Type

Expansion Joint Sleeve Type is a group of 30 IMPA-coded items (codes 735071–735100) under Flexible Pipe Couplings in the Pipe & Tube Fittings section (IMPA 73). All of them are priced per piece. The list runs through 10 metric sizes from 50 mm to 350 mm.

At a glance

Part of Pipe & Tube Fittings (IMPA section 73): Elbows, tees, flanges, unions, nipples, couplings and reducers to JIS, DIN and ANSI patterns.

It is one of 7 groups under Flexible Pipe Couplings; the others include Expansion Joints Rubber, Gaskets for Flexible Pipe Coupling, Pipe Couplings Flexible - Ductile Cast Iron, Pipe Couplings Flexible - Hot Rolled Steel, Pipe Couplings Flexible - Slide Type and 1 more.

Post the ones you need as a requirement and verified suppliers activated at your port bid on them — sealed, so nobody sees another bid.

Items: 30
IMPA codes: 735071–735100
Priced: per piece
Sizes: 50 mm – 350 mm

Items

IMPA	Item	Unit

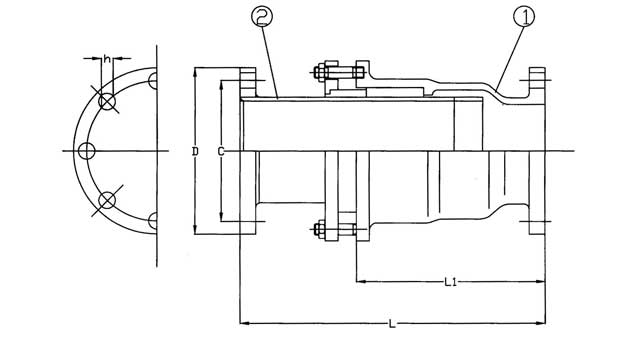

735071	EXPANSION JOINT SLEEV TYPE, DUCTILE IRON 5KG 50MM L345MM	PCS
735072	EXPANSION JOINT SLEEV TYPE, DUCTILE IRON 5KG 65MM L350MM	PCS
735073	EXPANSION JOINT SLEEV TYPE, DUCTILE IRON 5KG 80MM L385MM	PCS
735074	EXPANSION JOINT SLEEV TYPE, DUCTILE IRON 5KG 100MM L390MM	PCS
735075	EXPANSION JOINT SLEEV TYPE, DUCTILE IRON 5KG 125MM L390MM	PCS
735076	EXPANSION JOINT SLEEV TYPE, DUCTILE IRON 5KG 150MM L400MM	PCS
735077	EXPANSION JOINT SLEEV TYPE, DUCTILE IRON 5KG 200MM L420MM	PCS
735078	EXPANSION JOINT SLEEV TYPE, DUCTILE IRON 5KG 250MM L435MM	PCS
735079	EXPANSION JOINT SLEEV TYPE, DUCTILE IRON 5KG 300MM L455MM	PCS
735080	EXPANSION JOINT SLEEV TYPE, DUCTILE IRON 5KG 350MM L465MM	PCS
735081	EXPANSION JOINT SLEEV TYPE, DUCTILE IRON 10KG 50MM L368MM	PCS
735082	EXPANSION JOINT SLEEV TYPE, DUCTILE IRON 10KG 65MM L382MM	PCS
735083	EXPANSION JOINT SLEEV TYPE, DUCTILE IRON 10KG 80MM L415MM	PCS
735084	EXPANSION JOINT SLEEV TYPE, DUCTILE IRON 10KG 100MM L415MM	PCS
735085	EXPANSION JOINT SLEEV TYPE, DUCTILE IRON 10KG 125MM L432MM	PCS
735086	EXPANSION JOINT SLEEV TYPE, DUCTILE IRON 10KG 150MM L439MM	PCS
735087	EXPANSION JOINT SLEEV TYPE, DUCTILE IRON 10KG 200MM L458MM	PCS
735088	EXPANSION JOINT SLEEV TYPE, DUCTILE IRON 10KG 250MM L475MM	PCS
735089	EXPANSION JOINT SLEEV TYPE, DUCTILE IRON 10KG 300MM L510MM	PCS
735090	EXPANSION JOINT SLEEV TYPE, DUCTILE IRON 10KG 350MM L517MM	PCS
735091	EXPANSION JOINT SLEEV TYPE, DUCTILE IRON 16KG 50MM L432MM	PCS
735092	EXPANSION JOINT SLEEV TYPE, DUCTILE IRON 16KG 65MM L456MM	PCS
735093	EXPANSION JOINT SLEEV TYPE, DUCTILE IRON 16KG 80MM L469MM	PCS
735094	EXPANSION JOINT SLEEV TYPE, DUCTILE IRON 16KG 100MM L476MM	PCS
735095	EXPANSION JOINT SLEEV TYPE, DUCTILE IRON 16KG 125MM L520MM	PCS
735096	EXPANSION JOINT SLEEV TYPE, DUCTILE IRON 16KG 150MM L522MM	PCS
735097	EXPANSION JOINT SLEEV TYPE, DUCTILE IRON 16KG 200MM L544MM	PCS
735098	EXPANSION JOINT SLEEV TYPE, DUCTILE IRON 16KG 250MM L576MM	PCS
735099	EXPANSION JOINT SLEEV TYPE, DUCTILE IRON 16KG 300MM L588MM	PCS
735100	EXPANSION JOINT SLEEV TYPE, DUCTILE IRON 16KG 350MM L612MM	PCS
