IMPA 23 23. Rigging Equipment & General Deck Items

Ladders

Browse the product families and items within the "Ladders" sub-group of the IMPA marine catalogue, and order them from verified suppliers via Geomarine.

Families

Items

Product families

Accommodation Ladders Aluminium Alloy 1 Embarkation Ladders 1 Handrail Stanchions and Sockets for Aluminium Alloy Wharf Ladder 1 Handrail Stanchions and Sockets for Steel Wharf Ladder 1 Holding Magnets for Pilot Ladder 3 Ladders Bulwark 2 Ladders Rope 3 Pilot Ladders 8 Pilot Ladders Synthetic Step/Spreader and Rope 1 Pilot Ladders as per Latest MED/USCG Approved 16 Pilot Ladders with Step Brace Type SOLAS Approved 1 Repair Preventer Step 1 Repair Step 1 Replacement Round Steps for Jacob's Ladders 2 Replacement Steps for Rope Ladders 3 Rope Ladders Aluminium Alloy 5 Securing Suction Pads 2 Split Distance Piece 2 Step Fixing Piece 1 Steps Rubber 1 Wharf Ladders Aluminium Alloy 1 Wharf Ladders Steel 1

Items in this sub-group

58 items

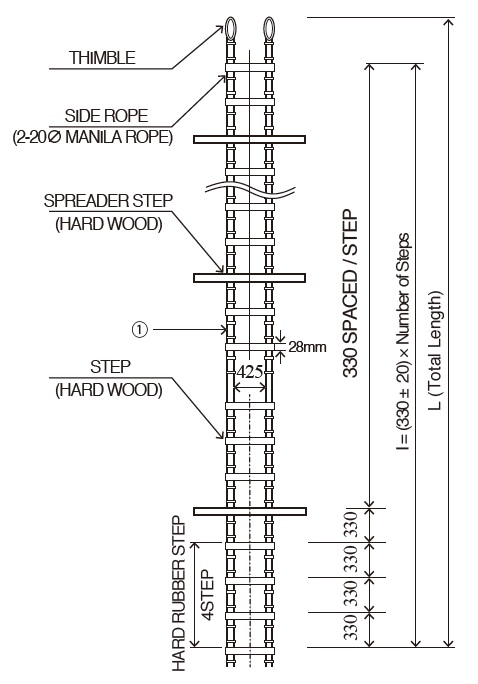

PILOT LADDER A-TYPE 9MTR, COMPLETE

IMPA 232001 SET

Type A pilot ladder, 9 m complete, manufactured to JIS-F, 1974 SOLAS, and ISO standards. Manila or heat-treated polyester rope (minimum 18 mm diameter, 24 kN breaking strength), wooden steps 115 mm wide × 25 mm thick spaced at 330±20 mm, minimum 400 mm inner distance between ropes, corrosion-resistant hardware.

PILOT LADDER A-TYPE 6MTR, COMPLETE

IMPA 232002 SET

Type A pilot ladder, 6 m complete, manufactured to JIS-F, 1974 SOLAS, and ISO standards. Manila or heat-treated polyester rope (minimum 18 mm diameter, 24 kN breaking strength), wooden steps 115 mm wide × 25 mm thick spaced at 330±20 mm, minimum 400 mm inner distance between ropes, corrosion-resistant hardware.

PILOT LADDER A-TYPE 15MTR, COMPLETE

IMPA 232003 SET

Type A pilot ladder, 15 m complete, manufactured to JIS-F, 1974 SOLAS, and ISO standards. Manila or heat-treated polyester rope (minimum 18 mm diameter, 24 kN breaking strength), wooden steps 115 mm wide × 25 mm thick spaced at 330±20 mm, minimum 400 mm inner distance between ropes, corrosion-resistant hardware.

PILOT LADDER A-TYPE 12MTR, COMPLETE

IMPA 232004 SET

Type A pilot ladder, 12 m complete, manufactured to JIS-F, 1974 SOLAS, and ISO standards. Manila or heat-treated polyester rope (minimum 18 mm diameter, 24 kN breaking strength), wooden steps 115 mm wide × 25 mm thick spaced at 330±20 mm, minimum 400 mm inner distance between ropes, corrosion-resistant hardware.

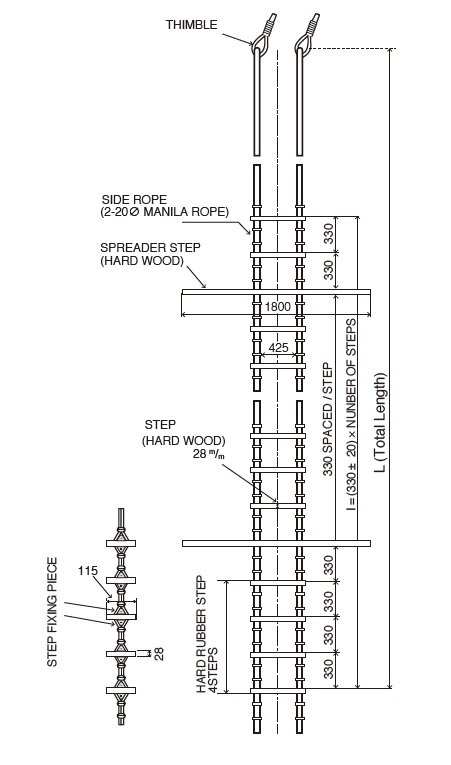

PILOT LADDER B-TYPE 15MTR STEP, LENGTH, SPECIFY TOTAL LENGTH

IMPA 232005 SET

Type B pilot ladder with 15 m steps; specify total length required. Manufactured to JIS-F, 1974 SOLAS, and ISO standards with manila or heat-treated polyester rope (minimum 18 mm diameter, 24 kN breaking strength), wooden steps 115 mm wide × 25 mm thick at 330±20 mm spacing, corrosion-resistant hardware.

PILOT LADDER B-TYPE 12MTR STEP, LENGTH, SPECIFY TOTAL LENGTH

IMPA 232006 SET

Type B pilot ladder with 12 m steps; specify total length required. Manufactured to JIS-F, 1974 SOLAS, and ISO standards with manila or heat-treated polyester rope (minimum 18 mm diameter, 24 kN breaking strength), wooden steps 115 mm wide × 25 mm thick at 330±20 mm spacing, corrosion-resistant hardware.

PILOT LADDER B-TYPE 9MTR STEP, LENGTH, SPECIFY TOTAL LENGTH

IMPA 232007 SET

Type B pilot ladder with 9 m steps; specify total length required. Manufactured to JIS-F, 1974 SOLAS, and ISO standards with manila or heat-treated polyester rope (minimum 18 mm diameter, 24 kN breaking strength), wooden steps 115 mm wide × 25 mm thick at 330±20 mm spacing, corrosion-resistant hardware.

PILOT LADDER B-TYPE 6MTR STEP, LENGTH, SPECIFY TOTAL LENGTH

IMPA 232008 SET

Type B pilot ladder with 6 m steps; specify total length required. Manufactured to JIS-F, 1974 SOLAS, and ISO standards with manila or heat-treated polyester rope (minimum 18 mm diameter, 24 kN breaking strength), wooden steps 115 mm wide × 25 mm thick at 330±20 mm spacing, corrosion-resistant hardware.

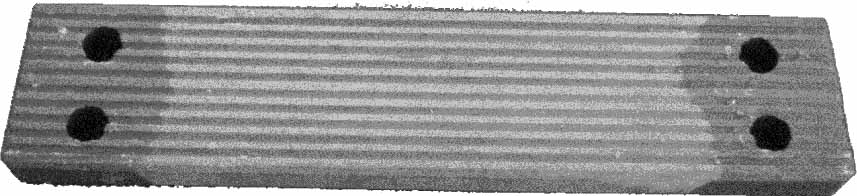

PILOT LADDER STEP HARDWOOD, 525X115X25MM

IMPA 232011 PCE

Hardwood pilot ladder step, 525×115×25 mm. Permanent markings at regular intervals (e.g. 1 mtr) assist in rigging to required height and maintenance.

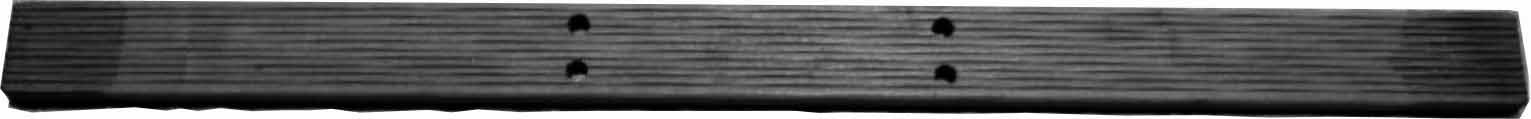

PREVENTER PILOT LADDER W/SPLIT, DISTANCE PIECE 1800X115X25MM

IMPA 232012 PCE

Preventer pilot ladder with split distance piece, 1800×115×25 mm. Permanent markings at regular intervals (e.g. 1 mtr) assist in rigging to required height and maintenance.

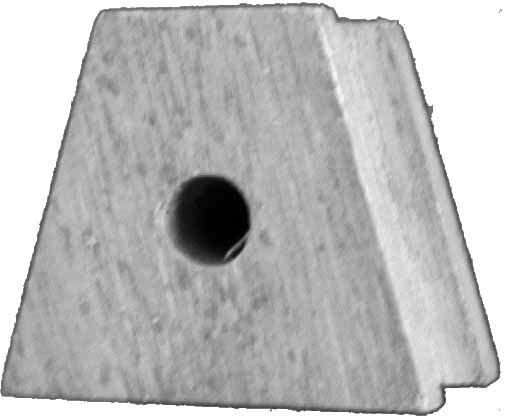

STEP FIXING PIECE HARD WOOD, FOR JIS PILOT LADDER

IMPA 232013 PCE

Hardwood step fixing piece for JIS pilot ladder. Permanent markings at regular intervals (e.g. 1 m) facilitate ladder rigging to specified heights.

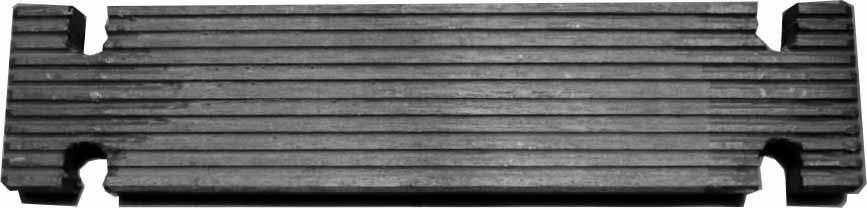

STEP REPAIR HARD WOOD FOR, JIS PILOT LADDER 525X115X25MM

IMPA 232014 PCE

Hard wood replacement step for JIS pilot ladder repair, dimensions 525×115×25 mm.

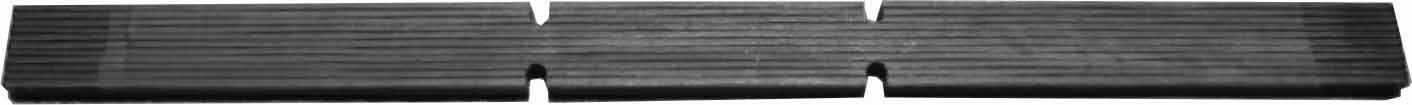

STEP PREVENTER REPAIR WOOD FOR, JIS PILOT LADDER 1800X115X25MM

IMPA 232015 PCE

Hardwood repair step for JIS pilot ladder, dimensions 1800 × 115 × 25 mm, for replacement of tread and preventer steps.

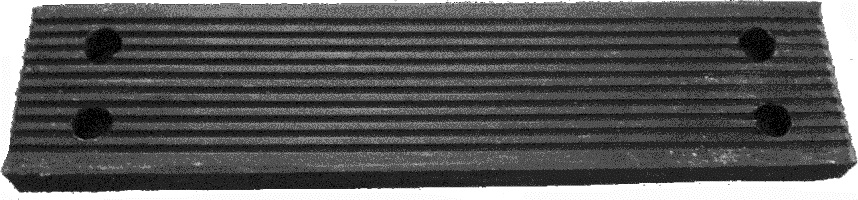

PILOT LADDER STEP RUBBER, 525X115X28MM

IMPA 232016 PCE

Rubber pilot ladder step, 525 × 115 × 28 mm. For use with pilot ladder systems.

LADDER ROPE ALUMINIUM ALLOY, WITH FURTHER DETAIL

IMPA 232020 LN

Aluminium alloy rope ladder with synthetic fibre side ropes; length, step type and spreader count made to order for embarkation, life raft, chain locker and other deck applications.

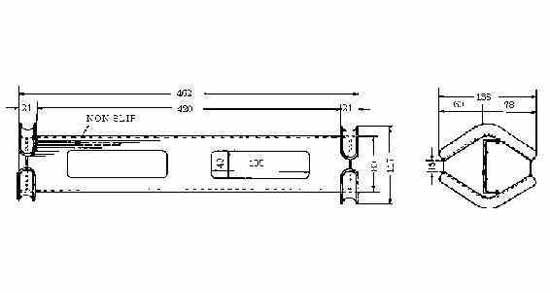

ROPE LADDER STEP ALUM-ALLOY, GS-A

IMPA 232021 PCE

Aluminium alloy rope ladder step GS-A with synthetic fibre side ropes; made to order for embarkation, life raft, chain locker and other deck applications.

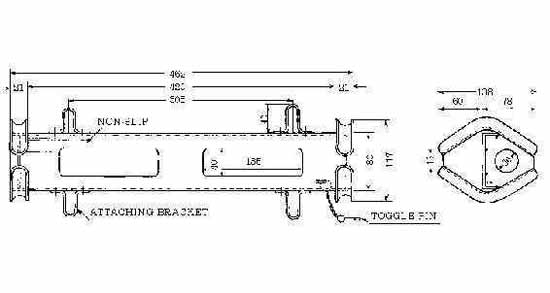

ROPE LADDER STEP ALUM-ALLOY, GS-B

IMPA 232022 PCE

Aluminium alloy rope ladder step GS-B with synthetic fibre side ropes; made to order for embarkation, life raft, chain locker and other deck applications.

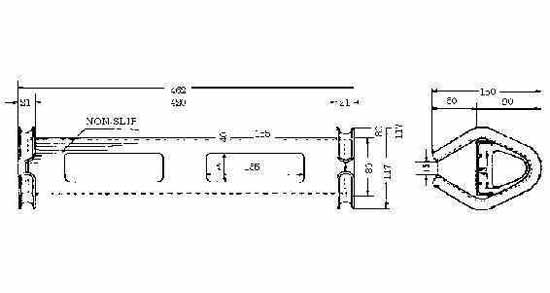

ROPE LADDER STEP ALUM-ALLOY, GS-C

IMPA 232023 PCE

Aluminium alloy ladder step with synthetic fibre rope sides. Customisable length, step type, and spreader configuration made to order for embarkation, life raft, chain locker, draft survey, and painting applications.

ROPE LADDER SPREADER, ALUM-ALLOY SD

IMPA 232024 PCE

Aluminium alloy ladder spreader with synthetic fibre rope sides. Customisable length, step type, and spreader configuration made to order for embarkation, life raft, chain locker, draft survey, and painting applications.

LADDER ROPE FLAT STEP, WITH FURTHER DETAIL

IMPA 232026 LN

Rope ladder with flat wooden rungs, supported by Manila or synthetic fibre rope. General-purpose application.

LADDER ROPE ROUND STEP, WITH FURTHER DETAIL

IMPA 232027 LN

Rope ladder with round wooden rungs, supported by Manila or synthetic fibre rope. General-purpose application.

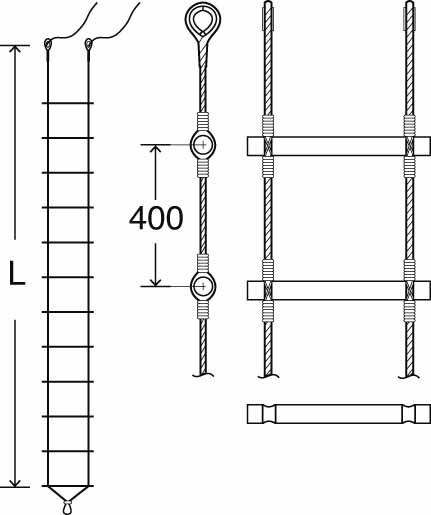

LADDER ROPE ROUND STEP, FOR EUROPEAN W/FURTHER DETAIL

IMPA 232028 LN

European-pattern rope ladder with round wooden rungs, supported by Manila or synthetic fibre rope. General-purpose application.

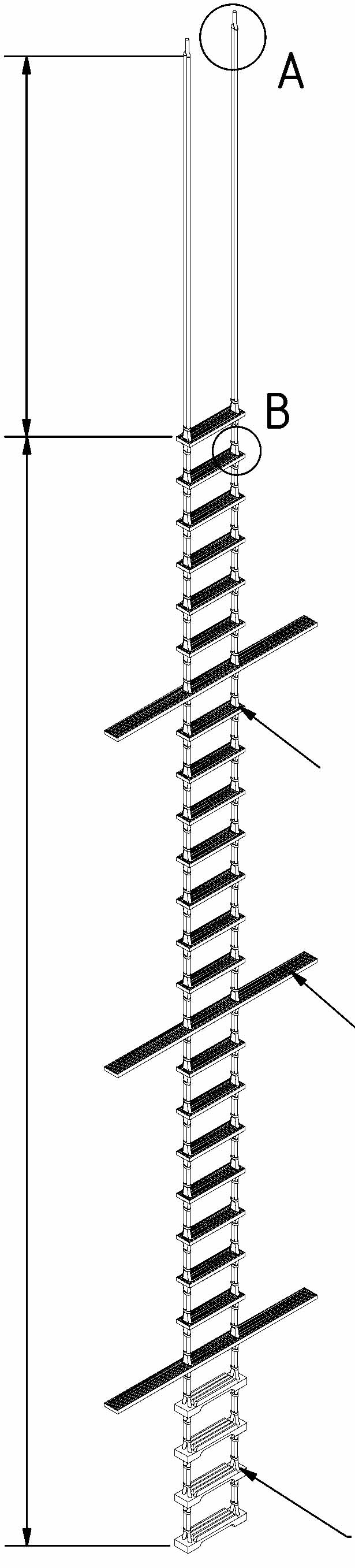

LADDR PILOT MED/USCG APPROVED, REGULAR STEP 3MTR

IMPA 232029 SET

Pilot ladder, 3 mtr, regular step spacing, MED/USCG approved. Steps feature non-skid surface secured by aluminium clamps; spliced rope with thimbles supplied.

LADDR PILOT MED/USCG APPROVED, NORMALISATION STEP 3MTR

IMPA 232030 SET

Pilot ladder, 3 mtr, normalised step spacing, MED/USCG approved. Steps feature non-skid surface secured by aluminium clamps; spliced rope with thimbles supplied.

LADDR PILOT MED/USCG APPROVED, REGULAR STEP 6MTR

IMPA 232031 SET

Pilot ladder, 6 mtr, regular step spacing, MED/USCG approved. Steps feature non-skid surface secured by aluminium clamps; spliced rope with thimbles supplied.

LADDR PILOT MED/USCG APPROVED, REGULAR STEP 9MTR

IMPA 232032 SET

Pilot ladder, 9 mtr, regular step spacing, MED/USCG approved. Steps feature non-skid surface secured by aluminium clamps; spliced rope with thimbles supplied.

LADDR PILOT MED/USCG APPROVED, NORMALISATION STEP 6MTR

IMPA 232033 SET

Pilot ladder, 6 mtr, normalised step spacing, MED/USCG approved. Steps feature non-skid surface secured by aluminium clamps; spliced rope with thimbles supplied.

LADDR PILOT MED/USCG APPROVED, NORMALISATION STEP 9MTR

IMPA 232034 SET

Pilot ladder, 9 m, USCG approved. Steps feature non-skid surface secured with aluminium clamps. Supplied with uncoated rope, thimbles, and rope spliced to top. Two step thicknesses available; thinner profile is standard.

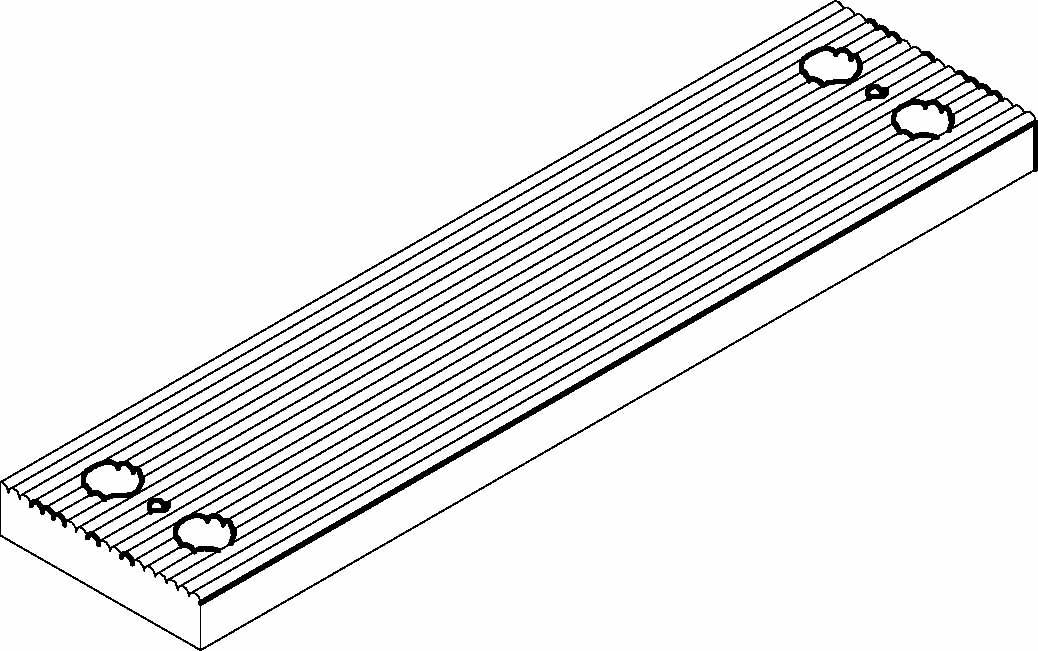

STEP WOOD REGUAR FOR MED/USCG, PILOT LADDER 525X115X63MM

IMPA 232035 PCE

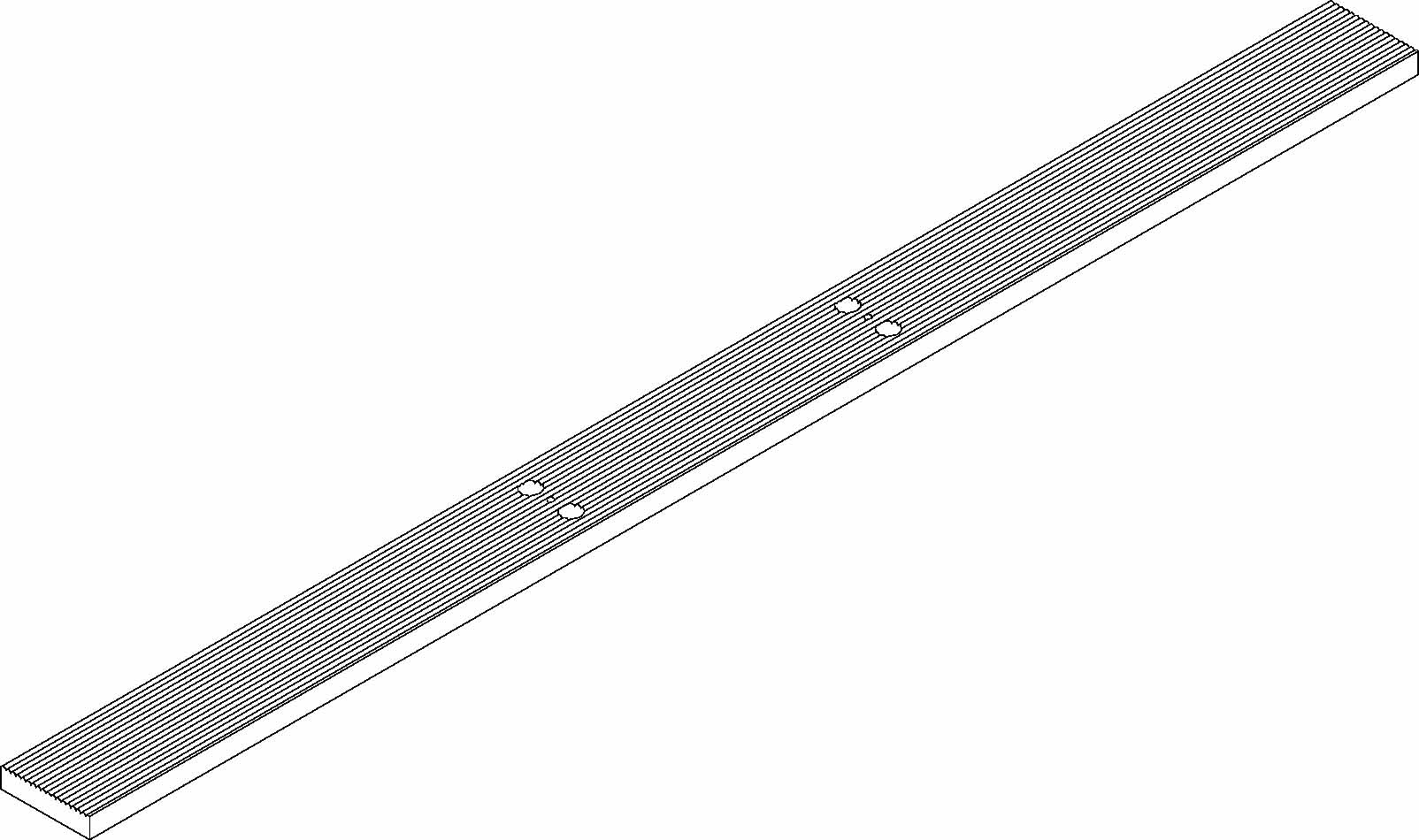

SPREADER WOOD REGULAR MED/USCG, PILOT LADDER 1800X115X63MM

IMPA 232036 PCE

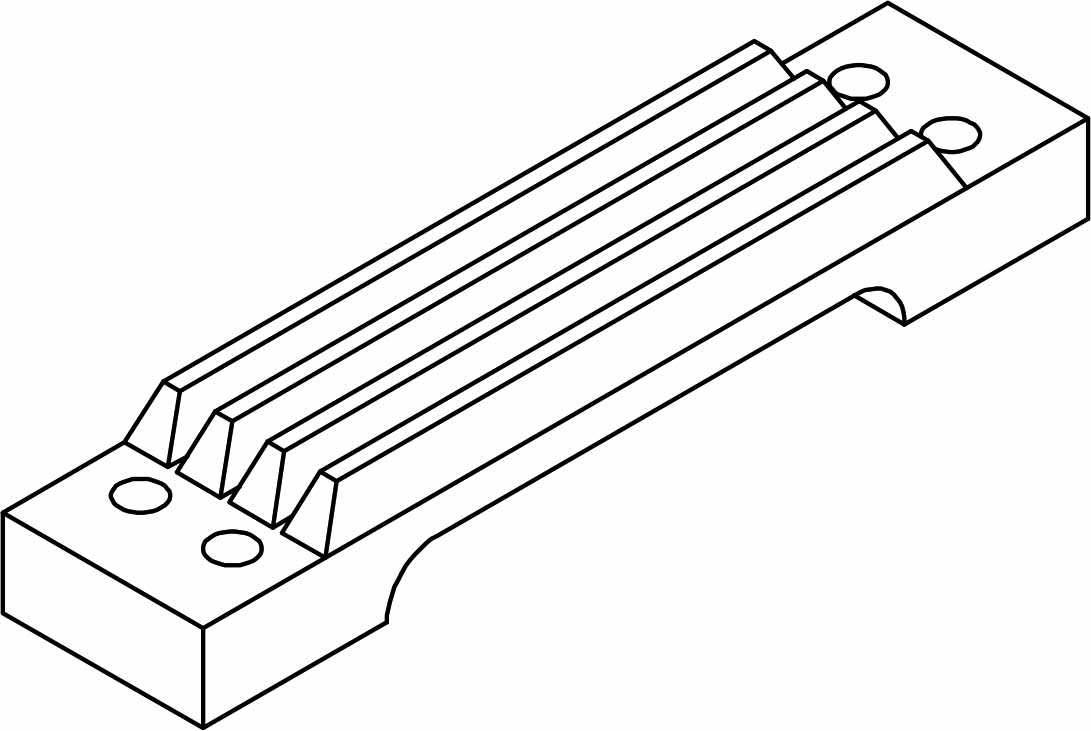

STEP RUBBER FOR MED/USCG, PILOT LADDER 530X120X80MM

IMPA 232037 PCE

STEP WOOD REPAIR FOR MED/USCG, PILOT LADDER 525X115X63MM

IMPA 232038 PCE

SPREADER WOOD REPAIR MED/USCG, PILOT LADDER 1800X115X63MM

IMPA 232039 PCE

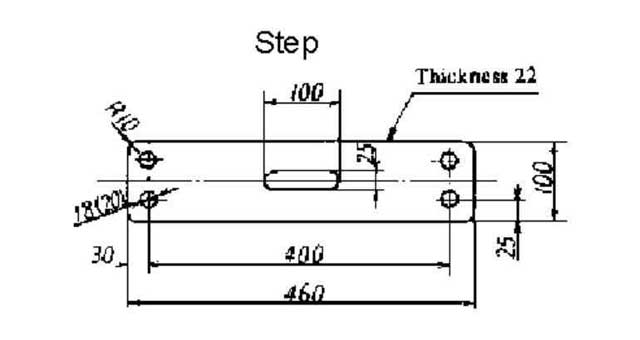

ROPE LADDER STEP HARDWOOD FLAT, 460X100X22MM

IMPA 232041 PCE

Hardwood rope ladder step, flat profile 460 × 100 × 22 mm, tested to 735 N (75 kgf) midpoint load.

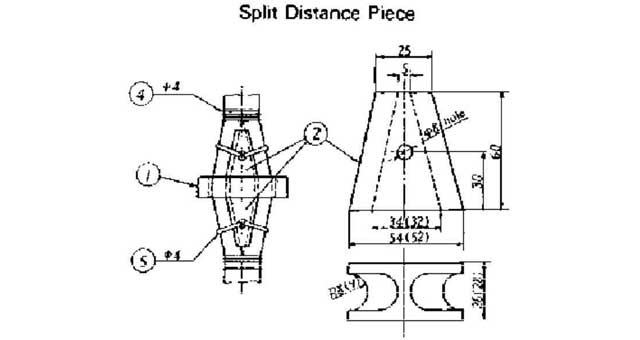

SPLIT DISTANCE PIECE, FOR 14MM SYNTHETIC FIBRE ROPE

IMPA 232042 PCE

Hardwood spacer for 14 mm synthetic fibre rope, tested to 735 N (75 kgf) midpoint load.

SPLIT DISTANCE PIECE, FOR 16MM MANILA ROPE

IMPA 232043 PCE

Hardwood spacer for 16 mm Manila rope, tested to 735 N (75 kgf) midpoint load.

STEP ROUND REPLACEMENT FOR, ROPE LADDER DIA36MM X L460MM

IMPA 232044 PCE

Hard wood replacement step for rope ladder, round profile, 36 mm diameter × 460 mm length. Tested to 735 N at midspan.

STEP ROUND REPLACEMENT FOR, ROPE LADDER DIA35MM X L400MM

IMPA 232045 PCE

Hard wood replacement step for rope ladder, round profile, 35 mm diameter × 400 mm length. Tested to 735 N at midspan.

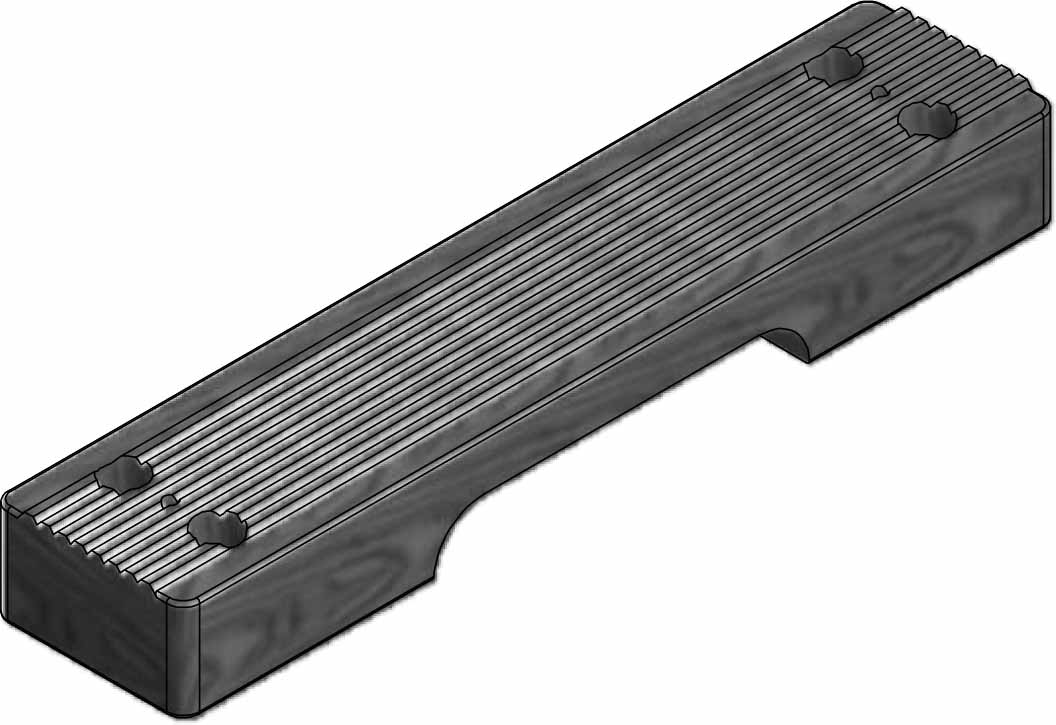

STEP WOOD REGUAR FOR MED/USCG, NORMALISATION 525X115X63MM

IMPA 232046 PCE

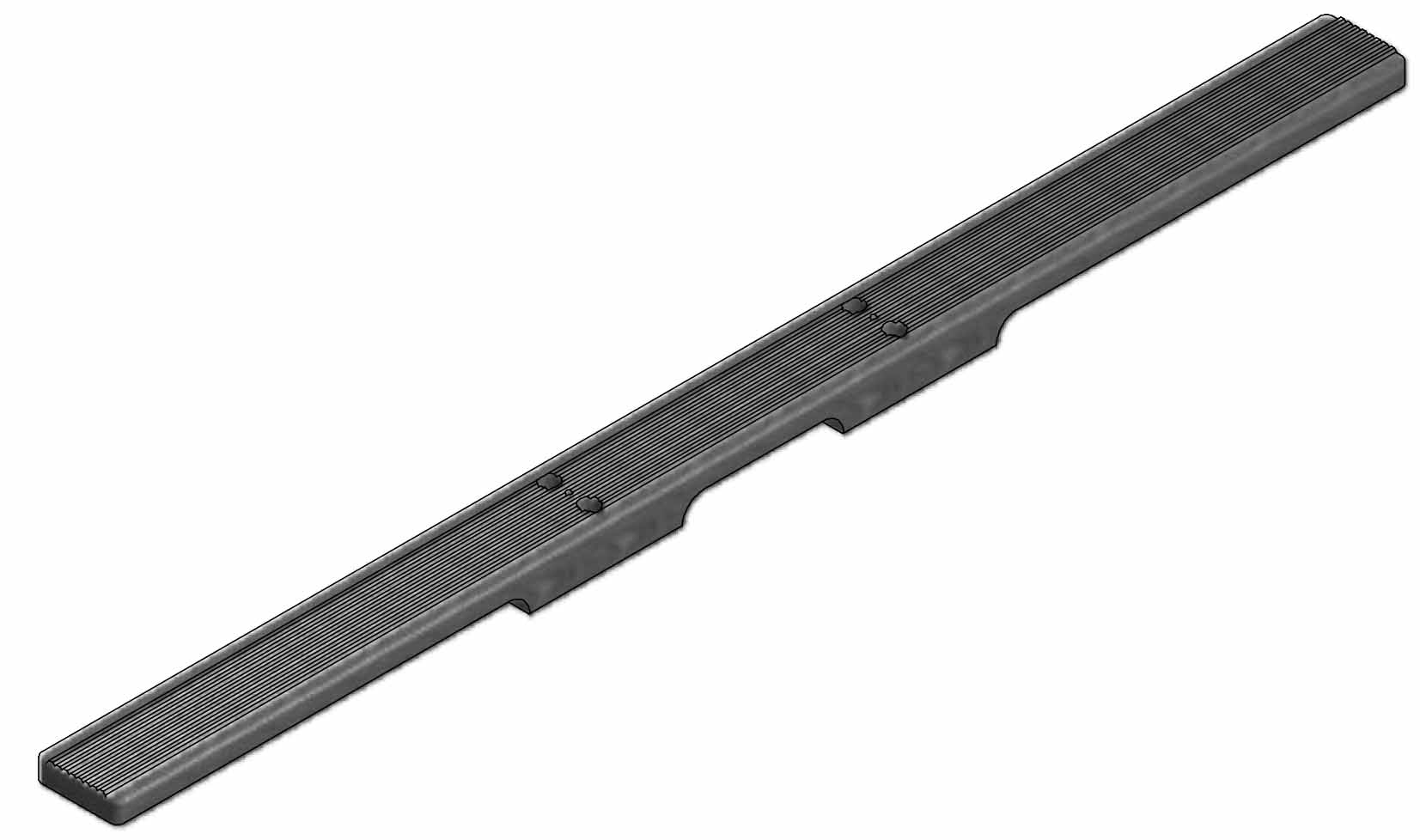

SPREADER WOOD REGULAR MED/USCG, MORMALISATION 1800X115X63MM

IMPA 232047 PCE
