IMPA 23 23. Rigging Equipment & General Deck Items

Chains / Links

Browse the product families and items within the "Chains / Links" sub-group of the IMPA marine catalogue, and order them from verified suppliers via Geomarine.

Families

Items

Product families

Chain Stoppers 8 Chains General Purpose 13 Chains for General Use 14 Connecting Links 22 Connecting Links, Stainless Steel 5 Rings Steel Round 7 Shackles Anchor 1 Shackles Joining 1 Shackles Kenter 1

Items in this sub-group

72 items

CHAIN LONG LINK GENERAL USE, GALV 6MM SWL 0.2TON

IMPA 231101 MTR

Galvanised rolled steel long-link chain, 6 mm diameter, safe working load 0.2 ton. Suitable for general purposes including guards, fences and accommodation ladder slings. Order by total length in metres required.

CHAIN LONG LINK GENERAL USE, GALV 8MM SWL 0.4TON

IMPA 231102 MTR

Galvanised rolled steel long-link chain, 8 mm diameter, safe working load 0.4 ton. Suitable for general purposes including guards, fences and accommodation ladder slings. Order by total length in metres required.

CHAIN LONG LINK GENERAL USE, GALV 9MM SWL 0.6TON

IMPA 231103 MTR

Galvanised rolled steel long-link chain, 9 mm diameter, safe working load 0.6 ton. Suitable for general purposes including guards, fences and accommodation ladder slings. Order by total length in metres required.

CHAIN LONG LINK GENERAL USE, GALV 11MM SWL 0.8TON

IMPA 231104 MTR

Galvanised rolled steel long-link chain, 11 mm diameter, safe working load 0.8 ton. Suitable for general purposes including guards, fences and accommodation ladder slings. Order by total length in metres required.

CHAIN LONG LINK GENERAL USE, GALV 13MM SWL 1.2TON

IMPA 231105 MTR

Galvanised rolled steel long-link chain, 13 mm diameter, safe working load 1.2 ton. Suitable for general purposes including guards, fences and accommodation ladder slings. Order by total length in metres required.

CHAIN LONG LINK GENERAL USE, GALV 16MM SWL 1.8TON

IMPA 231106 MTR

Galvanised rolled steel long-link chain, 16 mm diameter, safe working load 1.8 ton. Suitable for general purposes including guards, fences and accommodation ladder slings. Order by total length in metres required.

CHAIN LONG LINK GENERAL USE, GALV 19MM SWL 2.5TON

IMPA 231107 MTR

Galvanised rolled steel long-link chain, 19 mm diameter, safe working load 2.5 ton. Suitable for general purposes including guards, fences and accommodation ladder slings. Order by total length in metres required.

CHAIN SHORT LINK GENERAL USE, GALV 6MM SWL 0.2TON

IMPA 231111 MTR

Galvanised rolled steel short-link chain, 6 mm diameter, safe working load 0.2 ton. Suitable for general purposes including guards, fences and accommodation ladder slings. Order by total length in metres required.

CHAIN SHORT LINK GENERAL USE, GALV 8MM SWL 0.4TON

IMPA 231112 MTR

Galvanised rolled steel short-link chain, 8 mm diameter, safe working load 0.4 ton. Suitable for general purposes including guards, fences and accommodation ladder slings. Order by total length in metres required.

CHAIN SHORT LINK GENERAL USE, GALV 9MM SWL 0.6TON

IMPA 231113 MTR

Galvanised rolled steel short-link chain, 9 mm diameter, safe working load 0.6 ton. Suitable for general purposes including guards, fences and accommodation ladder slings. Order by total length in metres required.

CHAIN SHORT LINK GENERAL USE, GALV 11MM SWL 0.8TON

IMPA 231114 MTR

Galvanised rolled steel short-link chain, 11 mm diameter, safe working load 0.8 ton. Suitable for general purposes including guards, fences and accommodation ladder slings. Order by total length in metres required.

CHAIN SHORT LINK GENERAL USE, GALV 13MM SWL 1.2TON

IMPA 231115 MTR

Galvanised rolled steel short-link chain, 13 mm diameter, safe working load 1.2 ton. Suitable for general purposes including guards, fences and accommodation ladder slings. Order by total length in metres required.

CHAIN SHORT LINK GENERAL USE, GALV 16MM SWL 1.8TON

IMPA 231116 MTR

Galvanised rolled steel short-link chain, 16 mm diameter, safe working load 1.8 ton. Suitable for general purposes including guards, fences and accommodation ladder slings. Order by total length in metres required.

CHAIN SHORT LINK GENERAL USE, GALV 19MM SWL 2.5TON

IMPA 231117 MTR

Galvanised rolled steel short-link chain, 19 mm diameter, safe working load 2.5 ton. Suitable for general purposes including guards, fences and accommodation ladder slings. Order by total length in metres required.

CHAIN S.STEEL WELDED CURB, BODY DIA 2MM 8.7 X 3.4MM

IMPA 231121 MTR

Stainless steel welded curb chain, body diameter 2 mm, link size 8.7 × 3.4 mm, suitable for towing, binding and tie-down applications; specify material, working load and required length when ordering.

CHAIN S.STEEL DOUBLE LOOP COIL, BODY DIAM 2MM 28 X 5.5MM

IMPA 231122 MTR

Stainless steel double loop coil chain, body diameter 2 mm, link size 28 × 5.5 mm, suitable for towing, binding and tie-down applications; specify material, working load and required length when ordering.

CHAIN S. STEEL HEAVY LINK, BODY DIAM 4MM 26 X 6.0MM

IMPA 231123 MTR

Stainless steel heavy link chain, body diameter 4 mm, link size 26 × 6.0 mm, suitable for towing, binding and tie-down applications; specify material, working load and required length when ordering.

CHAIN S. STEEL HEAVY LINK, BODY DIAM 5MM 27 X 8.0MM

IMPA 231124 MTR

Stainless steel heavy link chain, body diameter 5 mm, link size 27 × 8.0 mm, suitable for towing, binding and tie-down applications; specify material, working load and required length when ordering.

CHAIN S. STEEL HEAVY LINK, BODY DIAM 6MM 31 X 9.0MM

IMPA 231125 MTR

Stainless steel heavy link chain, body diameter 6 mm, link size 31 × 9.0 mm, suitable for towing, binding and tie-down applications; specify material, working load and required length when ordering.

CHAIN STAINLESS STEEL SASH, THICK 0.5MM 15.2X2.2X5.5MM

IMPA 231126 MTR

Stainless steel sash chain, thickness 0.5 mm, link size 15.2 × 2.2 × 5.5 mm, suitable for towing, binding and tie-down applications; specify material, working load and required length when ordering.

CHAIN STAINLESS STEEL SASH, THICK 0.7MM 14.8X2.7X6.4MM

IMPA 231127 MTR

Stainless steel sash chain, thickness 0.7 mm, link size 14.8 × 2.7 × 6.4 mm, suitable for towing, binding and tie-down applications; specify material, working load and required length when ordering.

CHAIN STAINLESS STEEL SASH, THICK 0.7MM 14.4X4.0X8.0MM

IMPA 231128 MTR

Stainless steel sash chain, thickness 0.7 mm, link size 14.4 × 4.0 × 8.0 mm, suitable for towing, binding and tie-down applications; specify material, working load and required length when ordering.

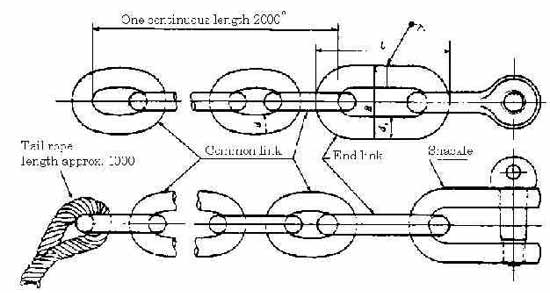

CHAIN STOPPER 8MMX2MTR, FOR CARGO HANDLING

IMPA 231131 LN

Chain stopper 8 mm × 2 m for cargo handling; one end fitted with tail rope, opposite end with link and shackle.

CHAIN STOPPER 10MMX2MTR, FOR CARGO HANDLING

IMPA 231132 LN

Chain stopper 10 mm × 2 m for cargo handling; one end fitted with tail rope, opposite end with link and shackle.

CHAIN STOPPER 6MMX2MTR, FOR MOORING

IMPA 231135 LN

Chain stopper 6 mm × 2 m for mooring; one end fitted with tail rope, opposite end with link and shackle.

CHAIN STOPPER 8MMX2MTR, FOR MOORING

IMPA 231136 LN

Chain stopper 8 mm × 2 m for mooring; one end fitted with tail rope, opposite end with link and shackle.

CHAIN STOPPER 10MMX2MTR, FOR MOORING

IMPA 231137 LN

2 metre chain stopper, 10 mm diameter, fitted with tail rope at one end and end link with shackle at the other; for securing mooring and cargo handling wire ropes.

CHAIN STOPPER 12MMX2MTR, FOR MOORING

IMPA 231138 LN

2 metre chain stopper, 12 mm diameter, fitted with tail rope at one end and end link with shackle at the other; for securing mooring and cargo handling wire ropes.

CHAIN STOPPER 14MMX2MTR, FOR MOORING

IMPA 231139 LN

2 metre chain stopper, 14 mm diameter, fitted with tail rope at one end and end link with shackle at the other; for securing mooring and cargo handling wire ropes.

CHAIN STOPPER 16MMX2MTR, FOR MOORING

IMPA 231140 LN

2 metre chain stopper, 16 mm diameter, fitted with tail rope at one end and end link with shackle at the other; for securing mooring and cargo handling wire ropes.

CHAIN BRASS WELDED CURB, BODY DIAM 2MM 8.9 X 3.4MM

IMPA 231141 MTR

Brass welded curb chain, body diameter 2 mm, link size 8.9 × 3.4 mm, suitable for towing, binding and tie-down applications; specify material, working load and required length when ordering.

CHAIN BRASS DOUBLE LOOP COIL, BODY DIAM 2MM 28 X 5.5MM

IMPA 231142 MTR

Brass double loop coil chain, body diameter 2 mm, link size 28 × 5.5 mm, suitable for towing, binding and tie-down applications; specify material, working load and required length when ordering.

CHAIN BRASS SASH, THICK 0.5MM 15.2X2.2X5.5MM

IMPA 231143 MTR

Brass sash chain, thickness 0.5 mm, link size 15.2 × 2.2 × 5.5 mm, suitable for towing, binding and tie-down applications; specify material, working load and required length when ordering.

CHAIN BRASS SASH, THICK 0.7MM 14.8X2.7X6.4MM

IMPA 231144 MTR

Brass sash chain, thickness 0.7 mm, link size 14.8 × 2.7 × 6.4 mm, suitable for towing, binding and tie-down applications; specify material, working load and required length when ordering.

CHAIN BRASS SASH, THICK 0.8MM 14.4X4.0X8.0MM

IMPA 231145 MTR

Brass sash chain, thickness 0.8 mm, link size 14.4 × 4.0 × 8.0 mm, suitable for towing, binding and tie-down applications; specify material, working load and required length when ordering.

CONNECTING LINK SPLIT BLACK, 8MM

IMPA 231151 PCE

Drop-forged, heat-treated split connecting link, 8 mm, black steel. Used for temporary or permanent chain repair by replacing individual links. Specify galvanised or black finish when ordering.

CONNECTING LINK SPLIT BLACK, 9MM

IMPA 231152 PCE

Drop-forged, heat-treated split connecting link, 9 mm, black steel. Used for temporary or permanent chain repair by replacing individual links. Specify galvanised or black finish when ordering.

CONNECTING LINK SPLIT BLACK, 11MM

IMPA 231153 PCE

Drop forged, heat treated steel split connecting link for chain repair or joining. 11MM. Available in black or galvanised finish; specify finish when ordering.

CONNECTING LINK SPLIT BLACK, 13MM

IMPA 231154 PCE

Drop forged, heat treated steel split connecting link for chain repair or joining. 13MM. Available in black or galvanised finish; specify finish when ordering.

CONNECTING LINK SPLIT BLACK, 16MM

IMPA 231155 PCE

Drop forged, heat treated steel split connecting link for chain repair or joining. 16MM. Available in black or galvanised finish; specify finish when ordering.
