IMPA 23 23. Rigging Equipment & General Deck Items

Cargo Hooks

Browse the product families and items within the "Cargo Hooks" sub-group of the IMPA marine catalogue, and order them from verified suppliers via Geomarine.

Families

Items

Product families

Cargo Hooks Seattle Pattern 3 Cargo Hooks Swivel Eye 5 Cargo Hooks with Shackle 4 Cargo Hooks with Swivel Eye 4 Hoist Hooks 7 Hooks Hoist Eye 7 Hooks Safety Latch 9 Latch Lock Hooks Swivel Type 6 Regular Swivel Forged Steel 10

Items in this sub-group

55 items

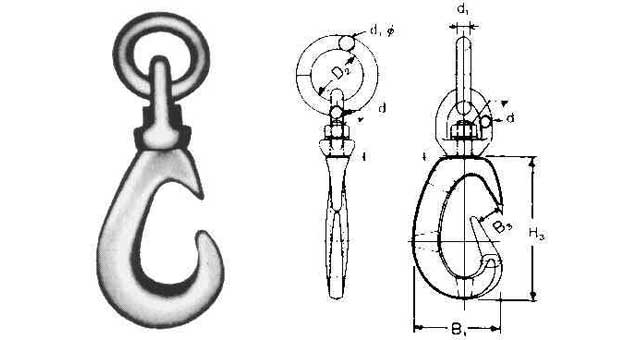

CARGO HOOK WITH SWIVEL, EYE & RING SWL 1TON

IMPA 231201 PCE

Cargo hook fabricated from high-tensile heat-treated carbon steel, SWL 1 tonne, fitted with swivel eye and ring, supplied in mill finish.

CARGO HOOK WITH SWIVEL, EYE & RING SWL 2TON

IMPA 231202 PCE

Cargo hook fabricated from high-tensile heat-treated carbon steel, SWL 2 tonnes, fitted with swivel eye and ring, supplied in mill finish.

CARGO HOOK WITH SWIVEL, EYE & RING SWL 3TON

IMPA 231203 PCE

Cargo hook fabricated from high-tensile heat-treated carbon steel, SWL 3 tonnes, fitted with swivel eye and ring, supplied in mill finish.

CARGO HOOK WITH SWIVEL, EYE & RING SWL 5TON

IMPA 231204 PCE

Cargo hook fabricated from high-tensile heat-treated carbon steel, SWL 5 tonnes, fitted with swivel eye and ring, supplied in mill finish.

CARGO HOOK WITH SHACKLE&RING, SWL 1TON

IMPA 231206 PCE

High tensile carbon steel cargo hook, SWL 1 ton, heat treated, includes countersunk screw pin shackle and ring, natural finish.

CARGO HOOK WITH SHACKLE&RING, SWL 2TON

IMPA 231207 PCE

High tensile carbon steel cargo hook, SWL 2 ton, heat treated, includes countersunk screw pin shackle and ring, natural finish.

CARGO HOOK WITH SHACKLE&RING, SWL 3TON

IMPA 231208 PCE

High tensile carbon steel cargo hook, SWL 3 ton, heat treated, includes countersunk screw pin shackle and ring, natural finish.

CARGO HOOK WITH SHACKLE&RING, SWL 5TON

IMPA 231209 PCE

High tensile carbon steel cargo hook, SWL 5 ton, heat treated, includes countersunk screw pin shackle and ring, natural finish.

HOOK CARGO SEATTLE PATTERN, SWL 3TON

IMPA 231211 PCE

Drop forged steel cargo hook, Seattle pattern, SWL 3 ton, with swivel eye, ring and dual swivel connections in natural finish.

HOOK CARGO SEATTLE PATTERN, SWL 5TON

IMPA 231212 PCE

Drop forged steel cargo hook, Seattle pattern, SWL 5 ton, with swivel eye, ring and dual swivel connections in natural finish.

HOOK CARGO SEATTLE PATTERN, SWL 10TON

IMPA 231213 PCE

Drop forged steel cargo hook, Seattle pattern, SWL 10 ton, with swivel eye, ring and dual swivel connections in natural finish.

HOIST HOOK WITH EYE SWL 1/2TON

IMPA 231221 PCE

Drop-forged, heat-treated steel hoist hook with eye, SWL 0.5 tonne. Standard pattern without safety pin.

HOIST HOOK WITH EYE SWL 1TON

IMPA 231222 PCE

Drop-forged, heat-treated steel hoist hook with eye, SWL 1 tonne. Standard pattern without safety pin.

HOIST HOOK WITH EYE SWL 2TON

IMPA 231223 PCE

Drop-forged, heat-treated steel hoist hook with eye, SWL 2 tonne. Standard pattern without safety pin.

HOIST HOOK WITH EYE SWL 3TON

IMPA 231224 PCE

Drop-forged, heat-treated steel hoist hook with eye, SWL 3 tonne. Standard pattern without safety pin.

HOIST HOOK WITH EYE SWL 5TON

IMPA 231225 PCE

Drop-forged, heat-treated steel hoist hook with eye, SWL 5 tonne. Standard pattern without safety pin.

HOIST HOOK WITH EYE SWL 8TON

IMPA 231226 PCE

Drop-forged, heat-treated steel hoist hook with eye, SWL 8 tonne. Standard pattern without safety pin.

HOIST HOOK WITH EYE SWL 10TON

IMPA 231227 PCE

Drop-forged, heat-treated steel hoist hook with eye, SWL 10 tonne. Standard pattern without safety pin.

HOIST EYE HOOK WITH LATCH, SWL 1/2TON

IMPA 231231 PCE

Drop-forged, heat-treated hoist eye hook with spring safety latch. SWL ½ ton.

HOIST EYE HOOK WITH LATCH, SWL 1TON

IMPA 231232 PCE

Drop-forged, heat-treated hoist eye hook with spring safety latch. SWL 1 ton.

HOIST EYE HOOK WITH LATCH, SWL 2TON

IMPA 231233 PCE

Drop-forged, heat-treated hoist eye hook with spring safety latch. SWL 2 ton.

HOIST EYE HOOK WITH LATCH, SWL 3TON

IMPA 231234 PCE

Drop-forged, heat-treated hoist eye hook with spring safety latch. SWL 3 ton.

HOIST EYE HOOK WITH LATCH, SWL 5TON

IMPA 231235 PCE

Drop-forged, heat-treated hoist eye hook with spring safety latch. SWL 5 ton.

HOIST EYE HOOK WITH LATCH, SWL 8TON

IMPA 231236 PCE

Drop-forged, heat-treated hoist eye hook with spring safety latch. SWL 8 ton.

HOIST EYE HOOK WITH LATCH, SWL 10TON

IMPA 231237 PCE

Drop-forged, heat-treated hoist eye hook with spring safety latch. SWL 10 ton.

HOOK SAFETY LATCH SWL 1.2TON

IMPA 231241 PCE

Drop-forged and heat-treated safety latch hook with SWL 1.2 tonne. Self-closing mechanism; release button required to open.

HOOK SAFETY LATCH SWL 3.2TON

IMPA 231242 PCE

Drop-forged and heat-treated safety latch hook with SWL 3.2 tonnes. Self-closing mechanism; release button required to open.

HOOK SAFETY LATCH SWL 5.3TON

IMPA 231243 PCE

Drop-forged and heat-treated safety latch hook with SWL 5.3 tonnes. Self-closing mechanism; release button required to open.

HOOK SAFETY LATCH SWL 8TON

IMPA 231244 PCE

Drop-forged and heat-treated safety latch hook with SWL 8 tonnes. Self-closing mechanism; release button required to open.

HOOK SAFETY LATCH SWL 2TON

IMPA 231245 PCE

Drop-forged and heat-treated safety latch hook with SWL 2 tonnes. Self-closing mechanism; release button required to open.

HOOK SAFETY LATCH SWL 10TON

IMPA 231246 PCE

Drop-forged and heat-treated safety latch hook with SWL 10 tonnes. Self-closing mechanism; release button required to open.

HOOK SAFETY LATCH SWL 12TON

IMPA 231247 PCE

HOOK SAFETY LATCH SWL 17TON

IMPA 231248 PCE

Drop-forged and heat-treated safety latch hook with SWL 17 tonnes. Self-closing mechanism; release button required to open.

HOOK SAFETY LATCH SWL 20TON

IMPA 231249 PCE

Drop-forged and heat-treated safety latch hook with SWL 20 tonnes. Self-closing mechanism; release button required to open.

CARGO HOOK SWIVEL EYE WITH, LATCH SWL 1TON

IMPA 231251 PCE

Drop-forged, heat-treated cargo hook with swivel eye and safety latch. SWL 1 ton. Specify safe working load requirement when ordering.

CARGO HOOK SWIVEL EYE WITH, LATCH SWL 1.5TON

IMPA 231252 PCE

Drop-forged, heat-treated cargo hook with swivel eye and safety latch. SWL 1.5 ton. Specify safe working load requirement when ordering.

CARGO HOOK SWIVEL EYE WITH, LATCH SWL 2TON

IMPA 231253 PCE

Drop-forged, heat-treated cargo hook with swivel eye and safety latch. SWL 2 ton. Specify safe working load requirement when ordering.

CARGO HOOK SWIVEL EYE WITH, LATCH SWL 3TON

IMPA 231254 PCE

Drop-forged, heat-treated cargo hook with swivel eye and safety latch. SWL 3 ton. Specify safe working load requirement when ordering.

CARGO HOOK SWIVEL EYE WITH, LATCH SWL 5TON

IMPA 231255 PCE

Drop-forged, heat-treated cargo hook with swivel eye and safety latch. SWL 5 ton. Specify safe working load requirement when ordering.

CARGO HOOK SWIVEL EYE WITH, LATCH LOCK WLL 1.2TON

IMPA 231261 PCE

Drop-forged, heat-treated steel cargo hook with swivel eye and latch-lock safety mechanism, WLL 1.2 ton. Trigger-button release unlocks the hook when disengaged.

Back to 23. Rigging Equipment & General Deck Items →
