IMPA 85 85. Welding Equipment

Electrodes for Nickel, Nickel-Alloys and Nickel-Alloy Steels

Browse the product families and items within the "Electrodes for Nickel, Nickel-Alloys and Nickel-Alloy Steels" sub-group of the IMPA marine catalogue, and order them from verified suppliers via Geomarine.

Families

Items

Product families

Atlantic CHN337 2 FOR Nickel & Nickel-Alloy 1 Gouging Electrodes 18 Nittetsu Yawata Weld 182AC 4 Ovens for Welding Rod 2 Storage Containers for Welding Rod 2

Items in this sub-group

29 items

ELECTRODE YAWATA WELD 182AC, 2.6MM 2.5KG FOR NI-ALLOY STEEL

IMPA 850836 PA

Nickel-alloy steel electrode, 2.6 mm diameter, 2.5 kg packet. High manganese content provides crack-resistance for thick-plate and hardfacing applications including nuclear plant components.

ELECTRODE YAWATA WELD 182AC, 3.2MM 2.5KG FOR NI-ALLOY STEEL

IMPA 850837 PA

Nickel-alloy steel electrode, 3.2 mm diameter, 2.5 kg packet. High manganese content provides crack-resistance for thick-plate and hardfacing applications including nuclear plant components.

ELECTRODE YAWATA WELD 182AC, 4.0MM 5KG FOR NI-ALLOY STEEL

IMPA 850838 PA

Nickel-alloy steel electrode, 4.0 mm diameter, 5 kg packet. High manganese content provides crack-resistance for thick-plate and hardfacing applications including nuclear plant components.

ELECTRODE YAWATA WELD 182AC, 5.0MM 5KG FOR NI-ALLOY STEEL

IMPA 850839 PA

Nickel-alloy steel electrode, 5.0 mm diameter, 5 kg packet. High manganese content provides crack-resistance for thick-plate and hardfacing applications including nuclear plant components.

ELECTRODE, FOR NICKEL & NICKEL-ALLOY

IMPA 850965 KGM

Welding electrode for nickel, nickel-alloy and nickel-alloy steel.

ELECTRODE DC POINTED GOUGING, 4X305MM(5/32"X12") 150-200AMP

IMPA 850966 PCE

Carbon gouging electrode with copper coating, 4 × 305 mm (5/32" × 12"), 150–200 ampere rating. Requires 380 V DC power source.

ELECTRODE DC POINTED GOUGING, 5X305MM(3/16"X12") 200-250AMP

IMPA 850967 PCE

Carbon gouging electrode with copper coating, 5 × 305 mm (3/16" × 12"), 200–250 ampere rating. Requires 380 V DC power source.

ELECTRODE DC POINTED GOUGING, 6.3X305MM(1/4"X12") 250-300AMP

IMPA 850968 PCE

Carbon gouging electrode with copper coating, 6.3 × 305 mm (1/4" × 12"), 250–300 ampere rating. Requires 380 V DC power source.

ELECTRODE DC POINTED GOUGING, 8X305MM(5/16"X12") 350-400AMP

IMPA 850969 PCE

Carbon gouging electrode with copper coating, 8 × 305 mm (5/16" × 12"), 350–400 ampere rating. Requires 380 V DC power source.

ELECTRODE DC POINTED GOUGING, 10X305MM(3/8"X12") 400-450AMP

IMPA 850970 PCE

Carbon electrode with copper coating, 10×305 mm, rated 400–450 A DC. For use with 380 V DC power source; moisture content <0.4%.

ELECTRODE DC POINTED GOUGING, 13X305MM(1/2"X12") 600-700AMP

IMPA 850971 PCE

Carbon electrode with copper coating, 13×305 mm, rated 600–700 A DC. For use with 380 V DC power source; moisture content <0.4%.

ELECTRODE DC POINTED GOUGING, 13X355MM(1/2"X14") 600-700AMP

IMPA 850972 PCE

Carbon electrode with copper coating, 13×355 mm, rated 600–700 A DC. For use with 380 V DC power source; moisture content <0.4%.

ELECTRODE DC JOINTED GOUGING, 8X355MM(5/16"X14") 450AMP

IMPA 850973 PCE

Jointed carbon electrode with copper coating, 8×355 mm, rated 450 A DC. Segments connect end-to-end for extended use; 380 V DC, <0.4% moisture.

ELECTRODE DC JOINTED GOUGING, 10X355MM(3/8"X14") 500AMP

IMPA 850974 PCE

Jointed carbon electrode with copper coating, 10×355 mm, rated 500 A DC. Segments connect end-to-end for extended use; 380 V DC, <0.4% moisture.

ELECTRODE DC JOINTED GOUGING, 11X355MM(7/16"X14") 600AMP

IMPA 850975 PCE

Jointed carbon electrode with copper coating, 11×355 mm, rated 600 A DC. Segments connect end-to-end for extended use; 380 V DC, <0.4% moisture.

ELECTRODE DC JOINTED GOUGING, 13X355MM(1/2"X14") 750AMP

IMPA 850976 PCE

Jointed carbon electrode with copper coating, 13×355 mm, rated 750 A DC. Segments connect end-to-end for extended use; 380 V DC, <0.4% moisture.

ELECTRODE DC JOINTED GOUGING, 15X355MM(5/8"X14") 1000AMP

IMPA 850977 PCE

Jointed carbon electrode with copper coating, 15×355 mm, rated 1000 A DC. Segments connect end-to-end for extended use; 380 V DC, <0.4% moisture.

ELECTRODE DC JOINTED GOUGING, 19X355MM(3/4"X14") 1300AMP

IMPA 850978 PCE

Jointed carbon electrode with copper coating, 19×355 mm, rated 1300 A DC. Segments connect end-to-end for extended use; 380 V DC, <0.4% moisture.

ELECTRODE DC JOINTED GOUGING, 10X430MM(3/8"X17") 550AMP

IMPA 850979 PCE

Jointed carbon electrode with copper coating, 10×430 mm, rated 550 A DC. Segments connect end-to-end for extended use; 380 V DC, <0.4% moisture.

ELECTRODE DC JOINTED GOUGING, 13X430MM(1/2"X17") 750AMP

IMPA 850980 PCE

Jointed carbon electrode with copper coating, 13×430 mm, rated 750 A DC. Segments connect end-to-end for extended use; 380 V DC, <0.4% moisture.

ELECTRODE DC JOINTED GOUGING, 16X430MM(5/8"X17") 1000AMP

IMPA 850981 PCE

Jointed carbon electrode with copper coating, 16×430 mm, rated 1000 A DC. Segments connect end-to-end for extended use; 380 V DC, <0.4% moisture.

ELECTRODE DC JOINTED GOUGING, 19X430MM(3/4"X17") 1300AMP

IMPA 850982 PCE

Jointed carbon electrode with copper coating, 19×430 mm, rated 1300 A DC. Segments connect end-to-end for extended use; 380 V DC, <0.4% moisture.

ELECTRODE DC FLAT GOUGING, 5X15X305MM 300-400AMP

IMPA 850983 PCE

Flat carbon electrode with copper coating, 5×15×305 mm, rated 300–400 A DC. For use with 380 V DC power source; moisture content <0.4%.

ELECTRODE CHN337 3.2MM 2KG, FOR NICKEL/NICKEL-ALLOY STEEL

IMPA 851655 PA

Welding electrode CHN337, 3.2 mm, 2 kg. Ni70Cr15 heat-resisting composition with manganese and niobium for nickel-base and dissimilar alloy welding. Crack-resistant.

ELECTRODE CHN337 4.0MM 2KG, FOR NICKEL/NICKEL-ALLOY STEEL

IMPA 851656 PA

Welding electrode CHN337, 4.0 mm, 2 kg. Ni70Cr15 heat-resisting composition with manganese and niobium for nickel-base and dissimilar alloy welding. Crack-resistant.

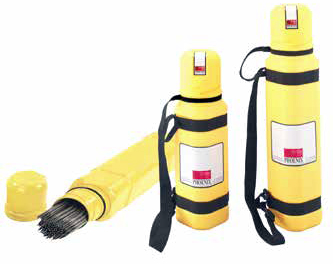

CONTAINER STORAGE FOR WELDING, ROD 350MM WITH STRAP

IMPA 851657 PCE

Yellow waterproof storage container for 350 mm welding rods with carrying strap; diamond-shaped body prevents rolling, O-ring sealed cap protects contents from moisture and contaminants.

CONTAINER STORAGE FOR WELDING, ROD 450MM WITH STRAP

IMPA 851658 PCE

Yellow waterproof storage container for 450 mm welding rods with carrying strap; diamond-shaped body prevents rolling, O-ring sealed cap protects contents from moisture and contaminants.

OVEN FOR WELDING ROD TYPE2, STORAGE CAPACITY 10KGS

IMPA 851659 SET

Portable electrode oven, 10 kg storage capacity for 14" or 18" rods. Dual voltage 120/240 V heating with adjustable thermostat (38–149 °C), rod elevator, and safety yellow finish. Meets EN and IEC standards.

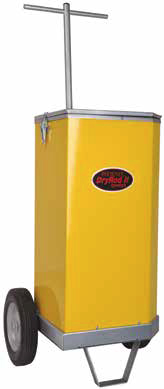

OVEN FOR WELDING ROD TYPE5, STORAGE CAPACITY 25KGS

IMPA 851660 SET

Portable electrode oven, 25 kg storage capacity for 14" or 18" rods. Dual voltage 120/240 V heating with adjustable thermostat (38–149 °C), rod elevator, wheels with pull handle, and safety yellow finish. Meets EN and IEC standards.
