IMPA 81 Packings

Tank Lid Packing Pilot Lidpack 3500

"Tank Lid Packing Pilot Lidpack 3500 " items from the IMPA marine catalogue with IMPA codes and units of measure — order for your vessel from verified suppliers via Geomarine.

Supply these items

No account needed — tell us the port and we’ll source it for your vessel.

Items

10 items

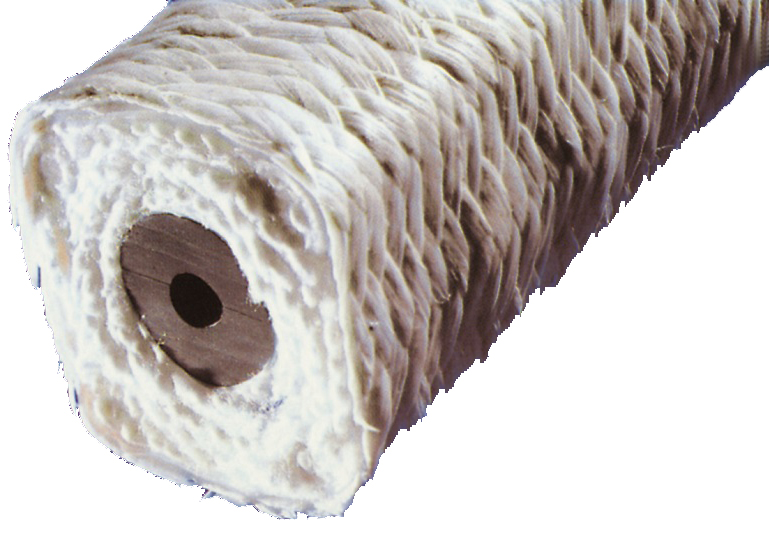

PACKING TANK LID PILOT LIDPACK, NO.3800 SQUARE 20X20MM

IMPA 810721 MTR

Pilot Lidpack 3800 square section 20×20 mm packing for marine cargo and chemical tank lids. PTFE-covered core allows welded joints to form continuous seals. Operating range: up to 100 °C, 1 bar pressure, pH 1–14. Suitable for acids, alkalis, oils, solvents and edible products. Sold by the metre in coils or cut to length.

PACKING TANK LID PILOT LIDPACK, NO.3800 SQUARE 25X25MM

IMPA 810722 MTR

Pilot Lidpack 3800 square section 25×25 mm packing for marine cargo and chemical tank lids. PTFE-covered core allows welded joints to form continuous seals. Operating range: up to 100 °C, 1 bar pressure, pH 1–14. Suitable for acids, alkalis, oils, solvents and edible products. Sold by the metre in coils or cut to length.

PACKING TANK LID PILOT LIDPACK, NO.3800 SQUARE 35X35MM

IMPA 810723 MTR

Pilot Lidpack 3800 square section 35×35 mm packing for marine cargo and chemical tank lids. PTFE-covered core allows welded joints to form continuous seals. Operating range: up to 100 °C, 1 bar pressure, pH 1–14. Suitable for acids, alkalis, oils, solvents and edible products. Sold by the metre in coils or cut to length.

PACKING TANK LID PILOT LIDPACK, NO.3800 SQUARE 38X38MM

IMPA 810724 MTR

Pilot Lidpack 3800 square section 38×38 mm packing for marine cargo and chemical tank lids. PTFE-covered core allows welded joints to form continuous seals. Operating range: up to 100 °C, 1 bar pressure, pH 1–14. Suitable for acids, alkalis, oils, solvents and edible products. Sold by the metre in coils or cut to length.

PACKING TANK LID PILOT LIDPACK, NO.3800 SQUARE 40X40MM

IMPA 810725 MTR

Pilot Lidpack 3800 square section 40×40 mm packing for marine cargo and chemical tank lids. PTFE-covered core allows welded joints to form continuous seals. Operating range: up to 100 °C, 1 bar pressure, pH 1–14. Suitable for acids, alkalis, oils, solvents and edible products. Sold by the metre in coils or cut to length.

PACKING TANK LID PILOT LIDPACK, NO.3800 RECTANGULAR 20X15MM

IMPA 810726 MTR

Pilot Lidpack 3800 rectangular section 20×15 mm packing for marine cargo and chemical tank lids. PTFE-covered core allows welded joints to form continuous seals. Operating range: up to 100 °C, 1 bar pressure, pH 1–14. Suitable for acids, alkalis, oils, solvents and edible products. Sold by the metre in coils or cut to length.

PACKING TANK LID PILOT LIDPACK, NO.3800 RECTANGULAR 30X20MM

IMPA 810727 MTR

Pilot Lidpack 3800 rectangular section 30×20 mm packing for marine cargo and chemical tank lids. PTFE-covered core allows welded joints to form continuous seals. Operating range: up to 100 °C, 1 bar pressure, pH 1–14. Suitable for acids, alkalis, oils, solvents and edible products. Sold by the metre in coils or cut to length.

PACKING TANK LID PILOT LIDPACK, NO.3800 RECTANGULAR 35X25MM

IMPA 810728 MTR

Pilot Lidpack 3800 rectangular section 35×25 mm packing for marine cargo and chemical tank lids. PTFE-covered core allows welded joints to form continuous seals. Operating range: up to 100 °C, 1 bar pressure, pH 1–14. Suitable for acids, alkalis, oils, solvents and edible products. Sold by the metre in coils or cut to length.

PACKING TANK LID PILOT LIDPACK, NO.3800 RECTANGULAR 40X30MM

IMPA 810729 MTR

Pilot Lidpack 3800 rectangular section 40×30 mm packing for marine cargo and chemical tank lids. PTFE-covered core allows welded joints to form continuous seals. Operating range: up to 100 °C, 1 bar pressure, pH 1–14. Suitable for acids, alkalis, oils, solvents and edible products. Sold by the metre in coils or cut to length.

PACKING TANK LID WITH FURTHER, DETAIL

IMPA 810730 PCE

Pre-welded packing rings ready for installation on tank lids.
