Packings
Artificial Fiber Braided White Gland Packing for Rotating Equipment
Artificial Fiber Braided White Gland Packing for Rotating Equipment is a group of 15 IMPA-coded items (codes 810472–810486) under Packings in the Packing & Jointing section (IMPA 81). All of them are priced per box.
Buying guide

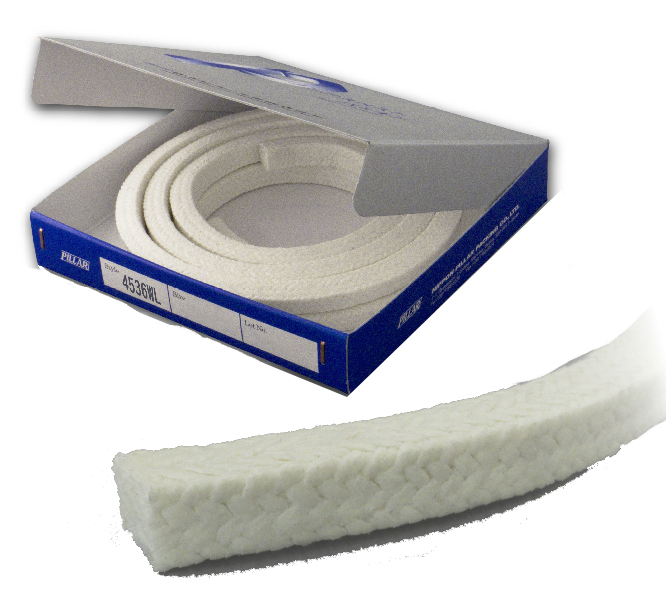

Gland packing is braided rope pushed in rings into a stuffing box to seal a rotating or reciprocating shaft. This group holds white braided synthetic-fibre, non-asbestos packing for water and oil service on rotating equipment, boxed by square section from 5 mm upward.
It is used on centrifugal and reciprocating pumps that have no mechanical seal — sea-water, bilge, ballast and fire pumps. The engineer repacks a gland when leakage can no longer be adjusted out, and raises the packing by section size.
How to specify it
Size it from the stuffing box: cross-section = (box bore − shaft or sleeve diameter) ÷ 2. State that section in mm, the length or box quantity, and the service (fluid, temperature, pressure, shaft speed) so the supplier can confirm the grade.[1]
Order enough for a full set of rings plus spares. When repacking, joints are staggered 180° for a two-ring set, 120° for three and 90° for four or more, and the gland is first run with liberal leakage and tightened slowly.[1]
Rules and certificates
Packing must be asbestos-free: SOLAS regulation II-1/3-5 prohibits any installation of asbestos-containing material on all ships from 1 January 2011, and IMO lists joints and cords among items where asbestos is still found.[2]
Questions buyers ask
- How do I work out the packing size?
- Measure the stuffing-box bore and the shaft or sleeve, subtract and halve. That is the square section to order.
- Why does a newly packed gland need to leak?
- The leakage lubricates and cools the packing. Start with liberal leakage and tighten the gland nuts slowly and evenly to an acceptable rate.
Sources
Published by Sherif Awad, founder of GeoMarineHub — in ship supply since 1990, a family business since 1981 (45 years). Last checked .
At a glance
Part of Packing & Jointing (IMPA section 81): Gaskets, gland packing, jointing sheet, O-rings, oil seals and sealing tapes.
It is one of 33 groups under Packings; the others include Grand Packing Threebond #5910 All Purpose, High-Intensity Aramid Fiber Braided Gland Packing for Slurry Pump, Non-Asbestos Gland Packing Carbon Fiber Based - Valqua No.6201, Non-Asbestos Gland Packing Carbon Fiber Based - Valqua No.6232, Non-Asbestos Gland Packing Carbon Fiber Based - Valqua No.6262 and 27 more.
Post the ones you need as a requirement and verified suppliers activated at your port bid on them — sealed, so nobody sees another bid.
