IMPA 81 Packings

Packing Pillarfoil Braided (Mark V) for Valves

"Packing Pillarfoil Braided (Mark V) for Valves" items from the IMPA marine catalogue with IMPA codes and units of measure — order for your vessel from verified suppliers via Geomarine.

Supply these items

No account needed — tell us the port and we’ll source it for your vessel.

Items

15 items

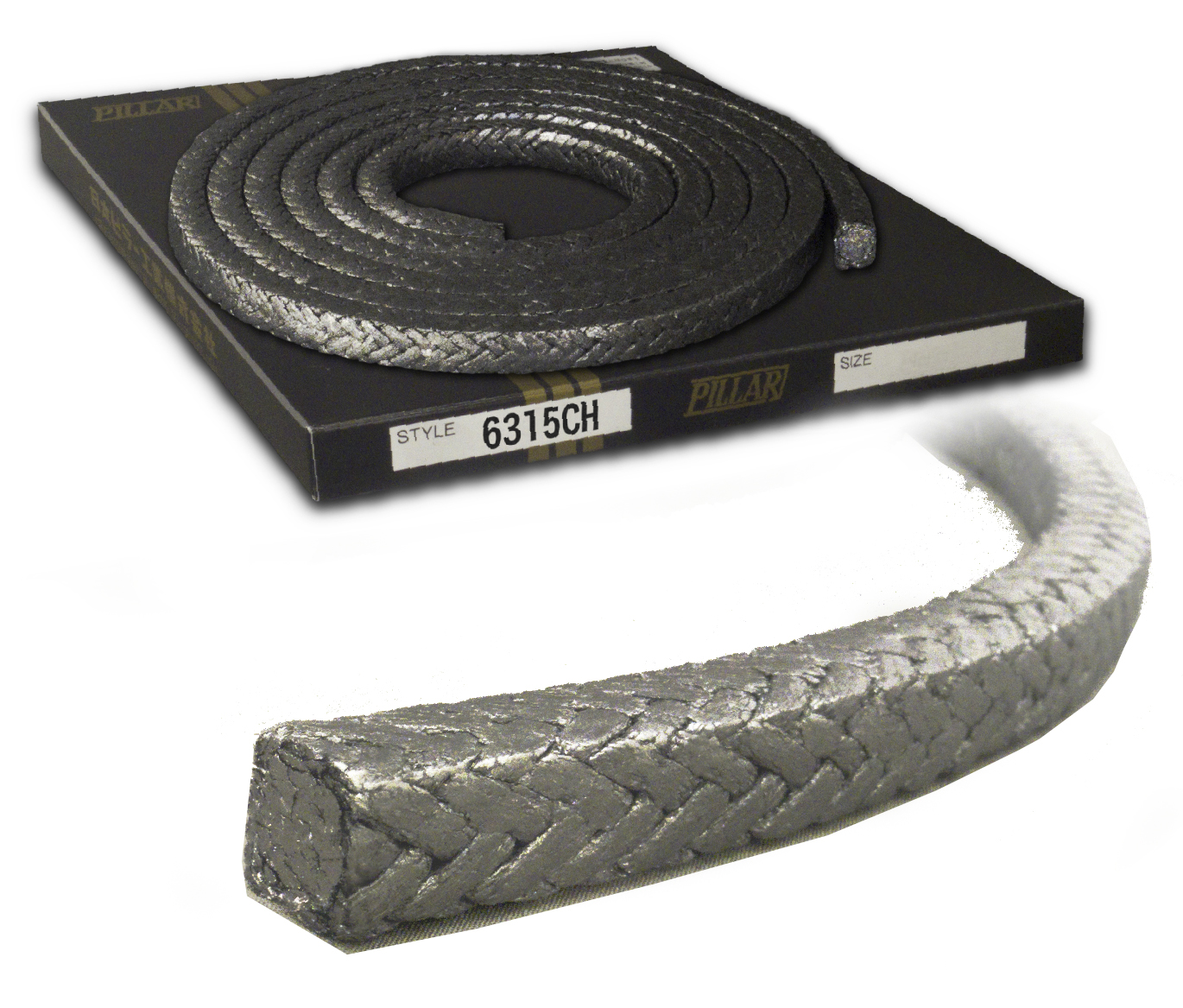

PACKING PILLARFOIL BRAIDED, PILLAR NO.6315CH 3.0MMX3MTR

IMPA 811361 BX

Pillar No. 6315CH braided gland packing with expanded graphite yarn core and stainless wire reinforcement, 3.0 mm×3 m. Temperature range −200 to 600 °C (450 °C in oxygen), pressure to 25.9 MPaG, Class 1500.

PACKING PILLARFOIL BRAIDED, PILLAR NO.6315CH 5MMX3MTR

IMPA 811362 BX

Pillar No. 6315CH braided gland packing with expanded graphite yarn core and stainless wire reinforcement, 5 mm×3 m. Temperature range −200 to 600 °C (450 °C in oxygen), pressure to 25.9 MPaG, Class 1500.

PACKING PILLARFOIL BRAIDED, PILLAR NO.6315CH 6.5MMX3MTR

IMPA 811363 BX

Pillar No. 6315CH braided gland packing with expanded graphite yarn core and stainless wire reinforcement, 6.5 mm×3 m. Temperature range −200 to 600 °C (450 °C in oxygen), pressure to 25.9 MPaG, Class 1500.

PACKING PILLARFOIL BRAIDED, PILLAR NO.6315CH 8MMX3MTR

IMPA 811364 BX

Pillar No. 6315CH braided gland packing with expanded graphite yarn core and stainless wire reinforcement, 8 mm×3 m. Temperature range −200 to 600 °C (450 °C in oxygen), pressure to 25.9 MPaG, Class 1500.

PACKING PILLARFOIL BRAIDED, PILLAR NO.6315CH 9.5MMX3MTR

IMPA 811365 BX

Pillar No. 6315CH braided gland packing with expanded graphite yarn core and stainless wire reinforcement, 9.5 mm×3 m. Temperature range −200 to 600 °C (450 °C in oxygen), pressure to 25.9 MPaG, Class 1500.

PACKING PILLARFOIL BRAIDED, PILLAR NO.6315CH 11MMX3MTR

IMPA 811366 BX

Pillar No. 6315CH braided gland packing with expanded graphite yarn core and stainless wire reinforcement, 11 mm×3 m. Temperature range −200 to 600 °C (450 °C in oxygen), pressure to 25.9 MPaG, Class 1500.

PACKING PILLARFOIL BRAIDED, PILLAR NO.6315CH 12.5MMX3MTR

IMPA 811367 BX

Pillar No. 6315CH braided gland packing with expanded graphite yarn core and stainless wire reinforcement, 12.5 mm×3 m. Temperature range −200 to 600 °C (450 °C in oxygen), pressure to 25.9 MPaG, Class 1500.

PACKING PILLARFOIL BRAIDED, PILLAR NO.6315CH 14.5MMX3MTR

IMPA 811368 BX

Pillar No. 6315CH braided gland packing with expanded graphite yarn core and stainless wire reinforcement, 14.5 mm×3 m. Temperature range −200 to 600 °C (450 °C in oxygen), pressure to 25.9 MPaG, Class 1500.

PACKING PILLARFOIL BRAIDED, PILLAR NO.6315CH 16MMX3MTR

IMPA 811369 BX

Pillar No. 6315CH braided gland packing with expanded graphite yarn core and stainless wire reinforcement, 16 mm×3 m. Temperature range −200 to 600 °C (450 °C in oxygen), pressure to 25.9 MPaG, Class 1500.

PACKING PILLARFOIL BRAIDED, PILLAR NO.6315CH 17.5MMX3MTR

IMPA 811370 BX

Pillar No. 6315CH braided gland packing with expanded graphite yarn core and stainless wire reinforcement, 17.5 mm×3 m. Temperature range −200 to 600 °C (450 °C in oxygen), pressure to 25.9 MPaG, Class 1500.

PACKING PILLARFOIL BRAIDED, PILLAR NO.6315CH 19MMX3MTR

IMPA 811371 BX

Pillar No. 6315CH braided gland packing with expanded graphite yarn core and stainless wire reinforcement, 19 mm×3 m. Temperature range −200 to 600 °C (450 °C in oxygen), pressure to 25.9 MPaG, Class 1500.

PACKING PILLARFOIL BRAIDED, PILLAR NO.6315CH 20.5MMX3MTR

IMPA 811372 BX

Pillar No. 6315CH braided gland packing with expanded graphite yarn core and stainless wire reinforcement, 20.5 mm×3 m. Temperature range −200 to 600 °C (450 °C in oxygen), pressure to 25.9 MPaG, Class 1500.

PACKING PILLARFOIL BRAIDED, PILLAR NO.6315CH 22MMX3MTR

IMPA 811373 BX

Pillar No. 6315CH braided gland packing; expanded graphite yarn with stainless steel reinforcement, 22 mm × 3 m. Surface lubricated and graphite-coated to reduce valve stem friction. Operating range: −200 to 600 °C (450 °C in oxygen), pressure to 25.9 MPaG, Class 1500.

PACKING PILLARFOIL BRAIDED, PILLAR NO.6315CH 24MMX3MTR

IMPA 811374 BX

Pillar No. 6315CH braided gland packing; expanded graphite yarn with stainless steel reinforcement, 24 mm × 3 m. Surface lubricated and graphite-coated to reduce valve stem friction. Operating range: −200 to 600 °C (450 °C in oxygen), pressure to 25.9 MPaG, Class 1500.

PACKING PILLARFOIL BRAIDED, PILLAR NO.6315CH 25.5MMX3MTR

IMPA 811375 BX

Pillar No. 6315CH braided gland packing; expanded graphite yarn with stainless steel reinforcement, 25.5 mm × 3 m. Surface lubricated and graphite-coated to reduce valve stem friction. Operating range: −200 to 600 °C (450 °C in oxygen), pressure to 25.9 MPaG, Class 1500.
