IMPA 81 Packings

Packing Pillar #6711 Non-asbestos Braided

"Packing Pillar #6711 Non-asbestos Braided " items from the IMPA marine catalogue with IMPA codes and units of measure — order for your vessel from verified suppliers via Geomarine.

Supply these items

No account needed — tell us the port and we’ll source it for your vessel.

Items

10 items

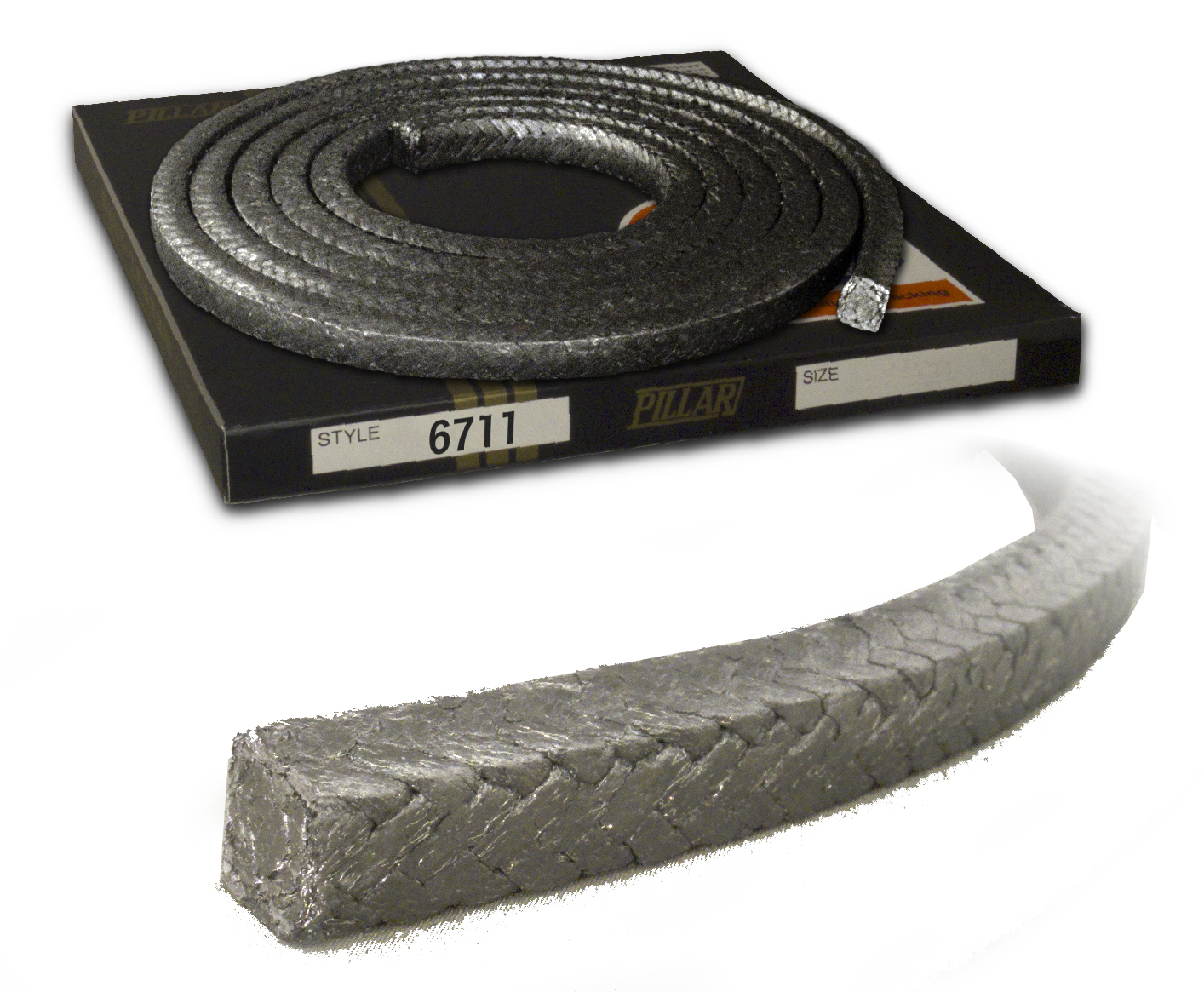

PACKING NON ASBESTOS HI-TEMP, HI-PRESSURE #6711 3MMX3MTR

IMPA 810581 BX

Non-asbestos packing type #6711, 3 mm × 3 m: braided expanded graphite yarn reinforced with NCF600 wire. Rated −200 to 600 °C (−200 to 450 °C in oxygen atmosphere) and 25.9 MPaG (Class 1500); requires no adaptor packing.

PACKING NON ASBESTOS HI-TEMP, HI-PRESSURE #6711 5MMX3MTR

IMPA 810582 BX

Non-asbestos packing type #6711, 5 mm × 3 m: braided expanded graphite yarn reinforced with NCF600 wire. Rated −200 to 600 °C (−200 to 450 °C in oxygen atmosphere) and 25.9 MPaG (Class 1500); requires no adaptor packing.

PACKING NON ASBESTOS HI-TEMP, HI-PRESSURE #6711 6.5MMX3MTR

IMPA 810583 BX

Non-asbestos packing type #6711, 6.5 mm × 3 m: braided expanded graphite yarn reinforced with NCF600 wire. Rated −200 to 600 °C (−200 to 450 °C in oxygen atmosphere) and 25.9 MPaG (Class 1500); requires no adaptor packing.

PACKING NON ASBESTOS HI-TEMP, HI-PRESSURE #6711 8MMX3MTR

IMPA 810584 BX

Non-asbestos packing type #6711, 8 mm × 3 m: braided expanded graphite yarn reinforced with NCF600 wire. Rated −200 to 600 °C (−200 to 450 °C in oxygen atmosphere) and 25.9 MPaG (Class 1500); requires no adaptor packing.

PACKING NON ASBESTOS HI-TEMP, HI-PRESSURE #6711 9.5MMX3MTR

IMPA 810585 BX

Non-asbestos packing type #6711, 9.5 mm × 3 m: braided expanded graphite yarn reinforced with NCF600 wire. Rated −200 to 600 °C (−200 to 450 °C in oxygen atmosphere) and 25.9 MPaG (Class 1500); requires no adaptor packing.

PACKING NON ASBESTOS HI-TEMP, HI-PRESSURE #6711 11MMX3MTR

IMPA 810586 BX

Non-asbestos packing type #6711, 11 mm × 3 m: braided expanded graphite yarn reinforced with NCF600 wire. Rated −200 to 600 °C (−200 to 450 °C in oxygen atmosphere) and 25.9 MPaG (Class 1500); requires no adaptor packing.

PACKING NON ASBESTOS HI-TEMP, HI-PRESSURE #6711 12.5MMX3MTR

IMPA 810587 BX

Non-asbestos packing type #6711, 12.5 mm × 3 m: braided expanded graphite yarn reinforced with NCF600 wire. Rated −200 to 600 °C (−200 to 450 °C in oxygen atmosphere) and 25.9 MPaG (Class 1500); requires no adaptor packing.

PACKING NON ASBESTOS HI-TEMP, HI-PRESSURE #6711 14.5MMX3MTR

IMPA 810588 BX

Non-asbestos packing type #6711, 14.5 mm × 3 m: braided expanded graphite yarn reinforced with NCF600 wire. Rated −200 to 600 °C (−200 to 450 °C in oxygen atmosphere) and 25.9 MPaG (Class 1500); requires no adaptor packing.

PACKING NON ASBESTOS HI-TEMP, HI-PRESSURE #6711 16MMX3MTR

IMPA 810589 BX

Non-asbestos packing type #6711, 16 mm × 3 m: braided expanded graphite yarn reinforced with NCF600 wire. Rated −200 to 600 °C (−200 to 450 °C in oxygen atmosphere) and 25.9 MPaG (Class 1500); requires no adaptor packing.

PACKING NON ASBESTOS HI-TEMP, HI-PRESSURE #6711 19MMX3MTR

IMPA 810591 BX

Non-asbestos packing type #6711, 19 mm × 3 m: braided expanded graphite yarn reinforced with NCF600 wire. Rated −200 to 600 °C (−200 to 450 °C in oxygen atmosphere) and 25.9 MPaG (Class 1500); requires no adaptor packing.

Other families in Packings

Artificial Fiber Braided White Gland Packing for Rotating Equipment 15 Grand Packing Threebond #5910 All Purpose 1 High-Intensity Aramid Fiber Braided Gland Packing for Slurry Pump 7 Non-Asbestos Gland Packing Carbon Fiber Based - Valqua No.6201 16 Non-Asbestos Gland Packing Carbon Fiber Based - Valqua No.6232 15 Non-Asbestos Gland Packing Carbon Fiber Based - Valqua No.6262 16 Packing Beldam Pilotpack #67 Lighthouse 12 Packing Graphite Braided 8 Packing PTFE Graphite 8 Packing Pillar #426F PTFE Ramie 15 Packing Pillar #4505L PTFE Fiber 10 Packing Pillar #4519 Non-asbestos Braided 8

Back to 81. Packing & Jointing →
