IMPA 81 Packings

Packing Pillar #6527L Carbon Fiber

"Packing Pillar #6527L Carbon Fiber" items from the IMPA marine catalogue with IMPA codes and units of measure — order for your vessel from verified suppliers via Geomarine.

Supply these items

No account needed — tell us the port and we’ll source it for your vessel.

Items

15 items

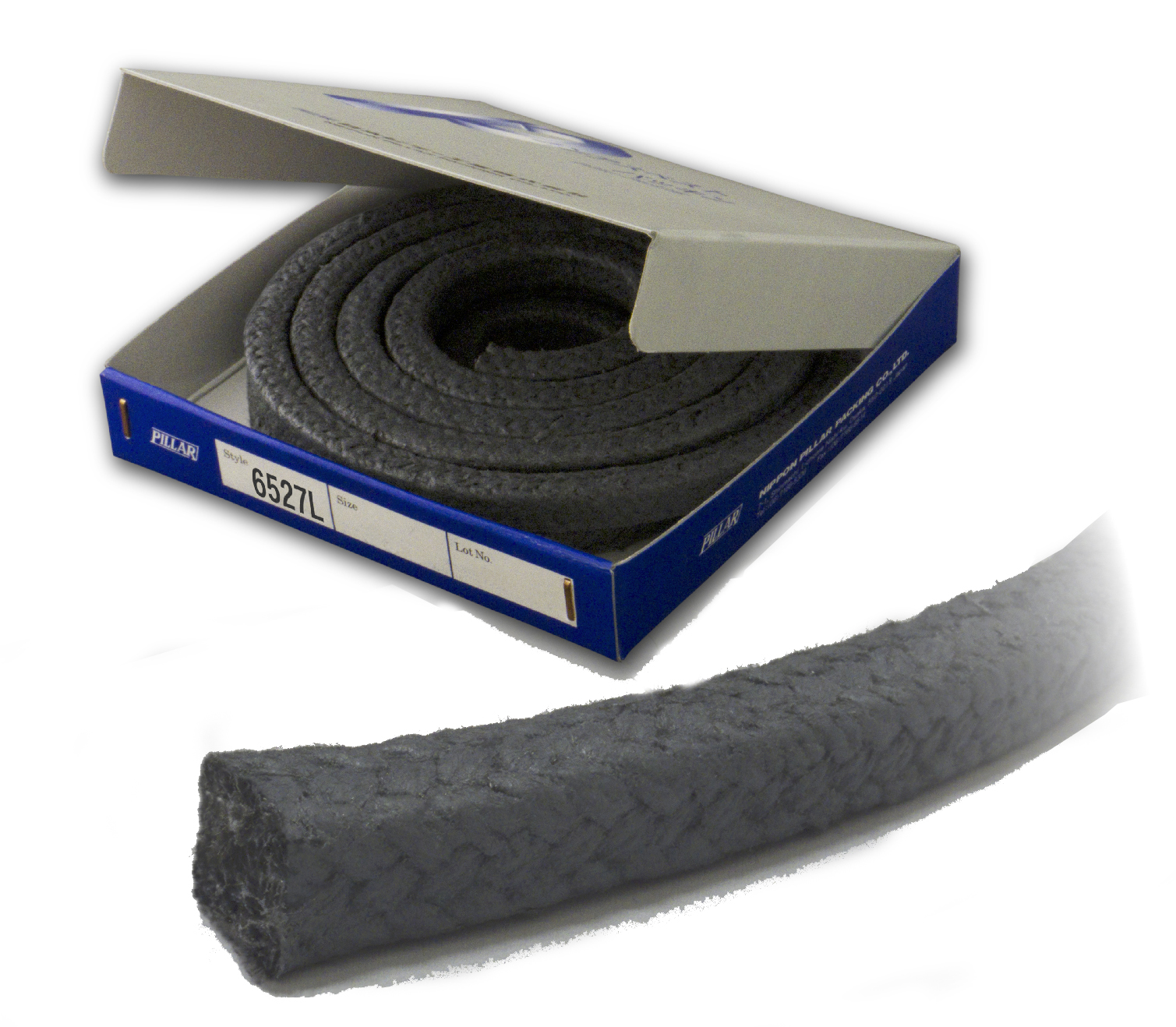

PACKING CARBON FIBER PILLAR, NO.6527L 5MMX3MTR

IMPA 810516 BX

Carbon fibre braided packing No. 6527L, 5 mm × 3 metre, lubricant-treated for pumps and agitators; temperature to 350°C, pressure 1.6 MPa, velocity 10 m/s, pH 0–14.

PACKING CARBON FIBER PILLAR, NO.6527L 6.5MMX3MTR

IMPA 810517 BX

Carbon fibre braided packing No. 6527L, 6.5 mm × 3 m, with integral lubricant. Operates across pH 0–14, to 350 °C, 1.6 MPa, 10 m/s velocity, PV 9.8 MPa·m/s. Suitable for pumps, agitators, and contact with water, oils, solvents, strong acids and alkalis.

PACKING CARBON FIBER PILLAR, NO.6527L 8MMX3MTR

IMPA 810518 BX

Carbon fibre braided packing No. 6527L, 8 mm × 3 m, with integral lubricant. Operates across pH 0–14, to 350 °C, 1.6 MPa, 10 m/s velocity, PV 9.8 MPa·m/s. Suitable for pumps, agitators, and contact with water, oils, solvents, strong acids and alkalis.

PACKING CARBON FIBER PILLAR, NO.6527L 9.5MMX3MTR

IMPA 810519 BX

Carbon fibre braided packing No. 6527L, 9.5 mm × 3 m, with integral lubricant. Operates across pH 0–14, to 350 °C, 1.6 MPa, 10 m/s velocity, PV 9.8 MPa·m/s. Suitable for pumps, agitators, and contact with water, oils, solvents, strong acids and alkalis.

PACKING CARBON FIBER PILLAR, NO.6527L 10MMX3MTR

IMPA 810520 BX

Carbon fibre braided packing No. 6527L, 10 mm × 3 m, with integral lubricant. Operates across pH 0–14, to 350 °C, 1.6 MPa, 10 m/s velocity, PV 9.8 MPa·m/s. Suitable for pumps, agitators, and contact with water, oils, solvents, strong acids and alkalis.

PACKING CARBON FIBER PILLAR, NO.6527L 11MMX3MTR

IMPA 810545 BX

Carbon fibre braided packing No. 6527L, 11 mm × 3 m, with integral lubricant. Operates across pH 0–14, to 350 °C, 1.6 MPa, 10 m/s velocity, PV 9.8 MPa·m/s. Suitable for pumps, agitators, and contact with water, oils, solvents, strong acids and alkalis.

PACKING CARBON FIBER PILLAR, NO.6527L 12.5MMX3MTR

IMPA 810561 BX

Carbon fibre braided packing No. 6527L, 12.5 mm × 3 m, with integral lubricant. Operates across pH 0–14, to 350 °C, 1.6 MPa, 10 m/s velocity, PV 9.8 MPa·m/s. Suitable for pumps, agitators, and contact with water, oils, solvents, strong acids and alkalis.

PACKING CARBON FIBER PILLAR, NO.6527L 14.5MMX3MTR

IMPA 810562 BX

Carbon fibre braided packing No. 6527L, 14.5 mm × 3 m, with integral lubricant. Operates across pH 0–14, to 350 °C, 1.6 MPa, 10 m/s velocity, PV 9.8 MPa·m/s. Suitable for pumps, agitators, and contact with water, oils, solvents, strong acids and alkalis.

PACKING CARBON FIBER PILLAR, NO.6527L 16MMX3MTR

IMPA 810563 BX

Carbon fibre braided packing No. 6527L, 16 mm × 3 m, with integral lubricant. Operates across pH 0–14, to 350 °C, 1.6 MPa, 10 m/s velocity, PV 9.8 MPa·m/s. Suitable for pumps, agitators, and contact with water, oils, solvents, strong acids and alkalis.

PACKING CARBON FIBER PILLAR, NO.6527L 17.5MMX3MTR

IMPA 810564 BX

Carbon fibre braided packing No. 6527L, 17.5 mm × 3 m, with integral lubricant. Operates across pH 0–14, to 350 °C, 1.6 MPa, 10 m/s velocity, PV 9.8 MPa·m/s. Suitable for pumps, agitators, and contact with water, oils, solvents, strong acids and alkalis.

PACKING CARBON FIBER PILLAR, NO.6527L 19MMX3MTR

IMPA 810596 BX

Carbon fibre braided packing No. 6527L, 19 mm × 3 m, with integral lubricant. Operates across pH 0–14, to 350 °C, 1.6 MPa, 10 m/s velocity, PV 9.8 MPa·m/s. Suitable for pumps, agitators, and contact with water, oils, solvents, strong acids and alkalis.

PACKING CARBON FIBER PILLAR, NO.6527L 20.5MMX3MTR

IMPA 810597 BX

Carbon fibre braided packing No. 6527L, 20.5 mm × 3 m, with integral lubricant. Operates across pH 0–14, to 350 °C, 1.6 MPa, 10 m/s velocity, PV 9.8 MPa·m/s. Suitable for pumps, agitators, and contact with water, oils, solvents, strong acids and alkalis.

PACKING CARBON FIBER PILLAR, NO.6527L 22MMX3MTR

IMPA 810598 BX

Carbon fibre braided packing No. 6527L, 22 mm × 3 m, with integral lubricant. Operates across pH 0–14, to 350 °C, 1.6 MPa, 10 m/s velocity, PV 9.8 MPa·m/s. Suitable for pumps, agitators, and contact with water, oils, solvents, strong acids and alkalis.

PACKING CARBON FIBER PILLAR, NO.6527L 24MMX3MTR

IMPA 810599 BX

Carbon fibre braided packing No. 6527L, 24 mm × 3 m, with integral lubricant. Operates across pH 0–14, to 350 °C, 1.6 MPa, 10 m/s velocity, PV 9.8 MPa·m/s. Suitable for pumps, agitators, and contact with water, oils, solvents, strong acids and alkalis.

PACKING CARBON FIBER PILLAR, NO.6527L 25.5MMX3MTR

IMPA 810600 BX

Carbon fibre braided packing No. 6527L, 25.5 mm × 3 m, with integral lubricant. Operates across pH 0–14, to 350 °C, 1.6 MPa, 10 m/s velocity, PV 9.8 MPa·m/s. Suitable for pumps, agitators, and contact with water, oils, solvents, strong acids and alkalis.
