IMPA 81 Packings

Packing Pillar #4527L Special PTFE Fiber

"Packing Pillar #4527L Special PTFE Fiber " items from the IMPA marine catalogue with IMPA codes and units of measure — order for your vessel from verified suppliers via Geomarine.

Supply these items

No account needed — tell us the port and we’ll source it for your vessel.

Items

13 items

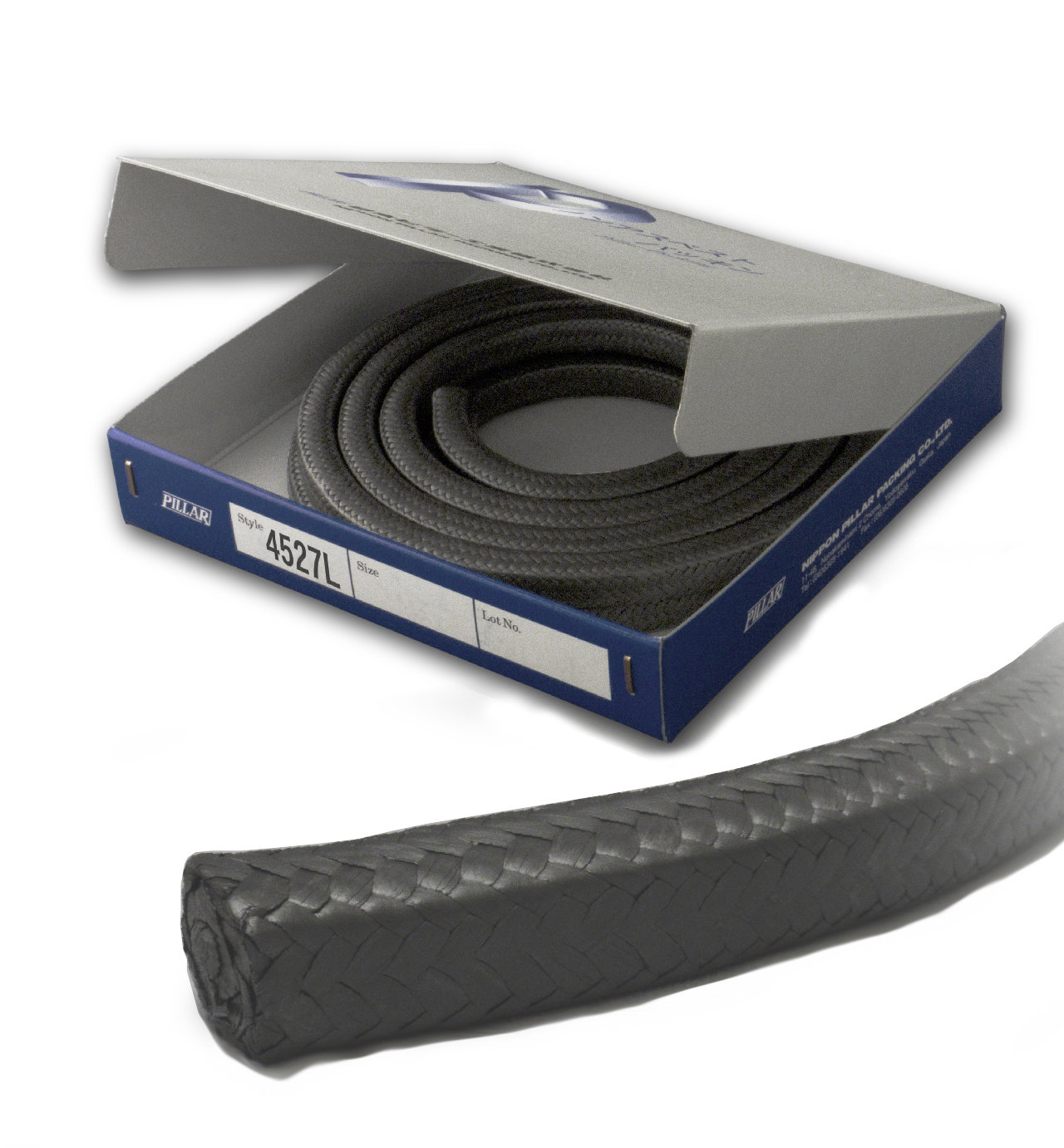

PACKING NON ASBESTOS CHEMICAL, PUMP PILLAR NO.4527L 5MMX3MTR

IMPA 810521 BX

Braided packing Pillar No. 4527L, PTFE fibre with graphite and lubricant, 5 mm × 3 metres. Suitable for chemical transfer pumps; pH 0−14, temperature −100 to 260°C (external cooling required above 80°C), pressure to 1.2 MPaG, velocity to 20 m/s, PV to 12.3 MPaG·m/s.

PACKING NON ASBESTOS CHEMICAL, PUMP PILLARNO.4527L 6.5MMX3MTR

IMPA 810522 BX

Braided packing Pillar No. 4527L, PTFE fibre with graphite and lubricant, 6.5 mm × 3 metres. Suitable for chemical transfer pumps; pH 0−14, temperature −100 to 260°C (external cooling required above 80°C), pressure to 1.2 MPaG, velocity to 20 m/s, PV to 12.3 MPaG·m/s.

PACKING NON ASBESTOS CHEMICAL, PUMP PILLAR NO.4527L 8MMX3MTR

IMPA 810523 BX

Braided packing Pillar No. 4527L, PTFE fibre with graphite and lubricant, 8 mm × 3 metres. Suitable for chemical transfer pumps; pH 0−14, temperature −100 to 260°C (external cooling required above 80°C), pressure to 1.2 MPaG, velocity to 20 m/s, PV to 12.3 MPaG·m/s.

PACKING NON ASBESTOS CHEMICAL, PUMP PILLARNO.4527L 9.5MMX3MTR

IMPA 810524 BX

Braided packing Pillar No. 4527L, PTFE fibre with graphite and lubricant, 9.5 mm × 3 metres. Suitable for chemical transfer pumps; pH 0−14, temperature −100 to 260°C (external cooling required above 80°C), pressure to 1.2 MPaG, velocity to 20 m/s, PV to 12.3 MPaG·m/s.

PACKING NON ASBESTOS CHEMICAL, PUMP PILLAR NO.4527L 10MMX3MTR

IMPA 810525 BX

Pillar No. 4527L pump packing, 10 mm × 3 m, non-asbestos construction with PTFE fibre, graphite and lubricant in interlocked braid. Suitable for chemical transfer pumps; pH 0–14, −100 to 260 °C (external cooling required above 80 °C), 1.2 MPaG pressure, 20 m/s velocity, PV 12.3 MPaG·m/s.

PACKING NON ASBESTOS CHEMICAL, PUMP PILLAR NO.4527L 11MMX3MTR

IMPA 810526 BX

Pillar No. 4527L pump packing, 11 mm × 3 m, non-asbestos construction with PTFE fibre, graphite and lubricant in interlocked braid. Suitable for chemical transfer pumps; pH 0–14, −100 to 260 °C (external cooling required above 80 °C), 1.2 MPaG pressure, 20 m/s velocity, PV 12.3 MPaG·m/s.

PACKING NON ASBESTOS CHEMICAL, PUMP PILR NO.4527L 12.5MMX3MTR

IMPA 810527 BX

Pillar No. 4527L pump packing, 12.5 mm × 3 m, non-asbestos construction with PTFE fibre, graphite and lubricant in interlocked braid. Suitable for chemical transfer pumps; pH 0–14, −100 to 260 °C (external cooling required above 80 °C), 1.2 MPaG pressure, 20 m/s velocity, PV 12.3 MPaG·m/s.

PACKING NON ASBESTOS CHEMICAL, PUMP PILR NO.4527L 14.5MMX3MTR

IMPA 810528 BX

Pillar No. 4527L pump packing, 14.5 mm × 3 m, non-asbestos construction with PTFE fibre, graphite and lubricant in interlocked braid. Suitable for chemical transfer pumps; pH 0–14, −100 to 260 °C (external cooling required above 80 °C), 1.2 MPaG pressure, 20 m/s velocity, PV 12.3 MPaG·m/s.

PACKING NON ASBESTOS CHEMICAL, PUMP PILLAR NO.4527L 16MMX3MTR

IMPA 810529 BX

Pillar No. 4527L pump packing, 16 mm × 3 m, non-asbestos construction with PTFE fibre, graphite and lubricant in interlocked braid. Suitable for chemical transfer pumps; pH 0–14, −100 to 260 °C (external cooling required above 80 °C), 1.2 MPaG pressure, 20 m/s velocity, PV 12.3 MPaG·m/s.

PACKING NON ASBESTOS CHEMICAL, PUMP PILR NO.4527L 17.5MMX3MTR

IMPA 810530 BX

Pillar No. 4527L pump packing, 17.5 mm × 3 m, non-asbestos construction with PTFE fibre, graphite and lubricant in interlocked braid. Suitable for chemical transfer pumps; pH 0–14, −100 to 260 °C (external cooling required above 80 °C), 1.2 MPaG pressure, 20 m/s velocity, PV 12.3 MPaG·m/s.

PACKING NON ASBESTOS CHEMICAL, PUMP PILLAR NO.4527L 19MMX3MTR

IMPA 810531 BX

Pillar No. 4527L pump packing, 19 mm × 3 m, non-asbestos construction with PTFE fibre, graphite and lubricant in interlocked braid. Suitable for chemical transfer pumps; pH 0–14, −100 to 260 °C (external cooling required above 80 °C), 1.2 MPaG pressure, 20 m/s velocity, PV 12.3 MPaG·m/s.

PACKING NON ASBESTOS CHEMICAL, PUMP PILR NO.4527L 20.5MMX3MTR

IMPA 810532 BX

Pillar No. 4527L pump packing, 20.5 mm × 3 m, non-asbestos construction with PTFE fibre, graphite and lubricant in interlocked braid. Suitable for chemical transfer pumps; pH 0–14, −100 to 260 °C (external cooling required above 80 °C), 1.2 MPaG pressure, 20 m/s velocity, PV 12.3 MPaG·m/s.

PACKING NON ASBESTOS CHEMICAL, PUMP PILLAR NO.4527L 22MMX3MTR

IMPA 810533 BX

Pillar No. 4527L pump packing, 22 mm × 3 m, non-asbestos construction with PTFE fibre, graphite and lubricant in interlocked braid. Suitable for chemical transfer pumps; pH 0–14, −100 to 260 °C (external cooling required above 80 °C), 1.2 MPaG pressure, 20 m/s velocity, PV 12.3 MPaG·m/s.
