IMPA 81 Gaskets / Joint Sheets

Valflon (PTFE) Gasket

"Valflon (PTFE) Gasket" items from the IMPA marine catalogue with IMPA codes and units of measure — order for your vessel from verified suppliers via Geomarine.

Supply these items

No account needed — tell us the port and we’ll source it for your vessel.

Items

12 items

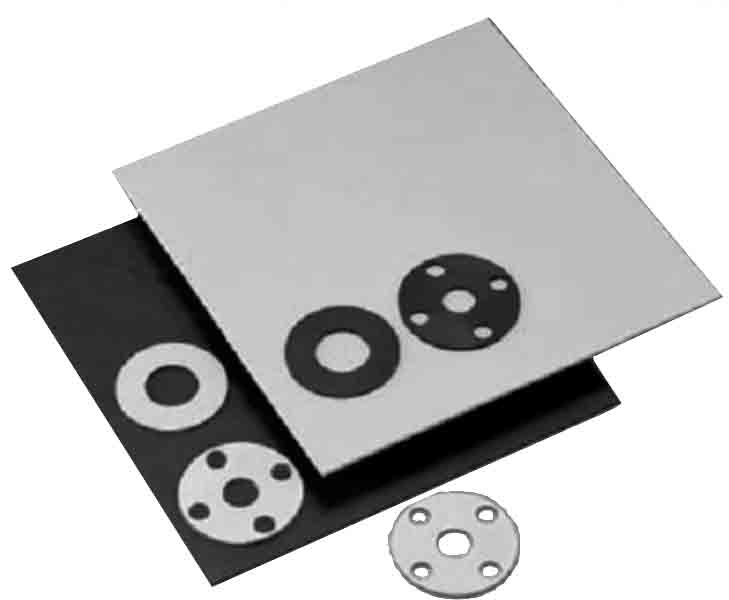

SHEET VAFLONPTFE GASKET VALQUA, VALQUALON 7020 1.0X1000X1000MM

IMPA 815631 ST

Valqua® No. 7020 PTFE-blended gasket sheet, 1.0 × 1000 × 1000 mm, with inorganic filler for creep resistance. Operating range −200 to 200 °C, max 4 MPa; suitable for water, steam, oil, solvents, acids, liquefied and cryogenic gases. JPI/ASME/ANSI compliant.

SHEET VAFLONPTFE GASKET VALQUA, VALQUALON 7020 1.5X1000X1000MM

IMPA 815632 ST

Valqua® No. 7020 PTFE-blended gasket sheet, 1.5 × 1000 × 1000 mm, with inorganic filler for creep resistance. Operating range −200 to 200 °C, max 4 MPa; suitable for water, steam, oil, solvents, acids, liquefied and cryogenic gases. JPI/ASME/ANSI compliant.

SHEET VAFLONPTFE GASKET VALQUA, VALQUALON 7020 2.0X1270X1,270MM

IMPA 815633 ST

Valqua® No. 7020 PTFE-blended gasket sheet, 2.0 × 1270 × 1,270 mm, with inorganic filler for creep resistance. Operating range −200 to 200 °C, max 4 MPa; suitable for water, steam, oil, solvents, acids, liquefied and cryogenic gases. JPI/ASME/ANSI compliant.

SHEET VAFLONPTFE GASKET VALQUA, VALQUALON 7020 3.0X1270X1,270MM

IMPA 815634 ST

Valqua® No. 7010-EX PTFE gasket sheet, 3.0 × 1270 × 1,270 mm, with improved anti-creep characteristics. Operating range −50 to 150 °C, max 1 MPa; suitable for water, steam, oil, solvents and corrosive liquids. JPI/ASME/ANSI compliant.

SHEET VAFLONPTFE GASKET BLACK, VALQUALON7026 1.5X1270X1,270MM

IMPA 815635 ST

Valqua® No. 7026 black PTFE-blended gasket sheet, 1.5 × 1270 × 1,270 mm, formulated for alkali resistance. Operating range −200 to 200 °C, max 4 MPa; handles water, steam, oil, solvents, alkali solutions, liquefied and cryogenic gases. JPI/ASME/ANSI compliant.

SHEET VAFLONPTFE GASKET BLACK, VALQUALON7026 2.0X1270X1,270MM

IMPA 815636 ST

Valqua® No. 7026 black PTFE-blended gasket sheet, 2.0 × 1270 × 1,270 mm, formulated for alkali resistance. Operating range −200 to 200 °C, max 4 MPa; handles water, steam, oil, solvents, alkali solutions, liquefied and cryogenic gases. JPI/ASME/ANSI compliant.

SHEET VAFLONPTFE GASKET BLACK, VALQUALON7026 3.0X1270X1,270MM

IMPA 815637 ST

Valqua® No. 7026 black PTFE-blended gasket sheet, 3.0 × 1270 × 1,270 mm, formulated for alkali resistance. Operating range −200 to 200 °C, max 4 MPa; handles water, steam, oil, solvents, alkali solutions, liquefied and cryogenic gases. JPI/ASME/ANSI compliant.
