IMPA 81 Gaskets / Joint Sheets

High Performance Non-Asbestos Sheet - Valqua No.GF-300

"High Performance Non-Asbestos Sheet - Valqua No.GF-300" items from the IMPA marine catalogue with IMPA codes and units of measure — order for your vessel from verified suppliers via Geomarine.

Supply these items

No account needed — tell us the port and we’ll source it for your vessel.

Items

3 items

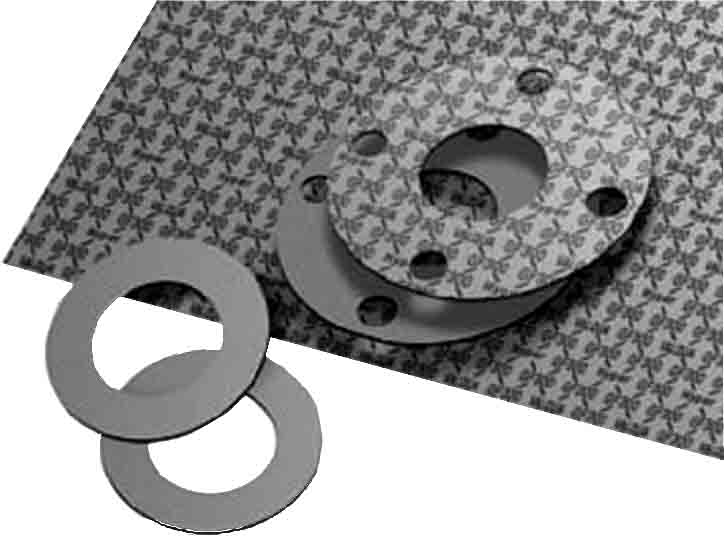

SHEET NON-AS VALQUA HI-PERFORM, GF300 1.0X1,270X1,270MM

IMPA 815601 ST

Valqua® GF300 PTFE-bound gasket sheet (rubber-free), 1.0 mm × 1,270 × 1,270 mm. Temperature range −200 to 300°C; maximum pressure 3.5 MPa. Suitable for flanges, valve bonnets, towers, tanks, pressure vessels and heat exchangers. JPI (ASME/ANSI) compliant.

SHEET NON-AS VALQUA HI-PERFORM, GF300 1.5X1,270X1,270MM

IMPA 815602 ST

Valqua® GF300 PTFE-bound gasket sheet (rubber-free), 1.5 mm × 1,270 × 1,270 mm. Temperature range −200 to 300°C; maximum pressure 3.5 MPa. Suitable for flanges, valve bonnets, towers, tanks, pressure vessels and heat exchangers. JPI (ASME/ANSI) compliant.

SHEET NON-AS VALQUA HI-PERFORM, GF300 3.0X1,500X1,500MM

IMPA 815603 ST

Valqua® GF300 PTFE-bound gasket sheet (rubber-free), 3.0 mm × 1,500 × 1,500 mm. Temperature range −200 to 300°C; maximum pressure 3.5 MPa. Suitable for flanges, valve bonnets, towers, tanks, pressure vessels and heat exchangers. JPI (ASME/ANSI) compliant.
