IMPA 81 Gaskets / Joint Sheets

Joint Sheets Gasket Non-asbestos Graphite

"Joint Sheets Gasket Non-asbestos Graphite " items from the IMPA marine catalogue with IMPA codes and units of measure — order for your vessel from verified suppliers via Geomarine.

Supply these items

No account needed — tell us the port and we’ll source it for your vessel.

Items

6 items

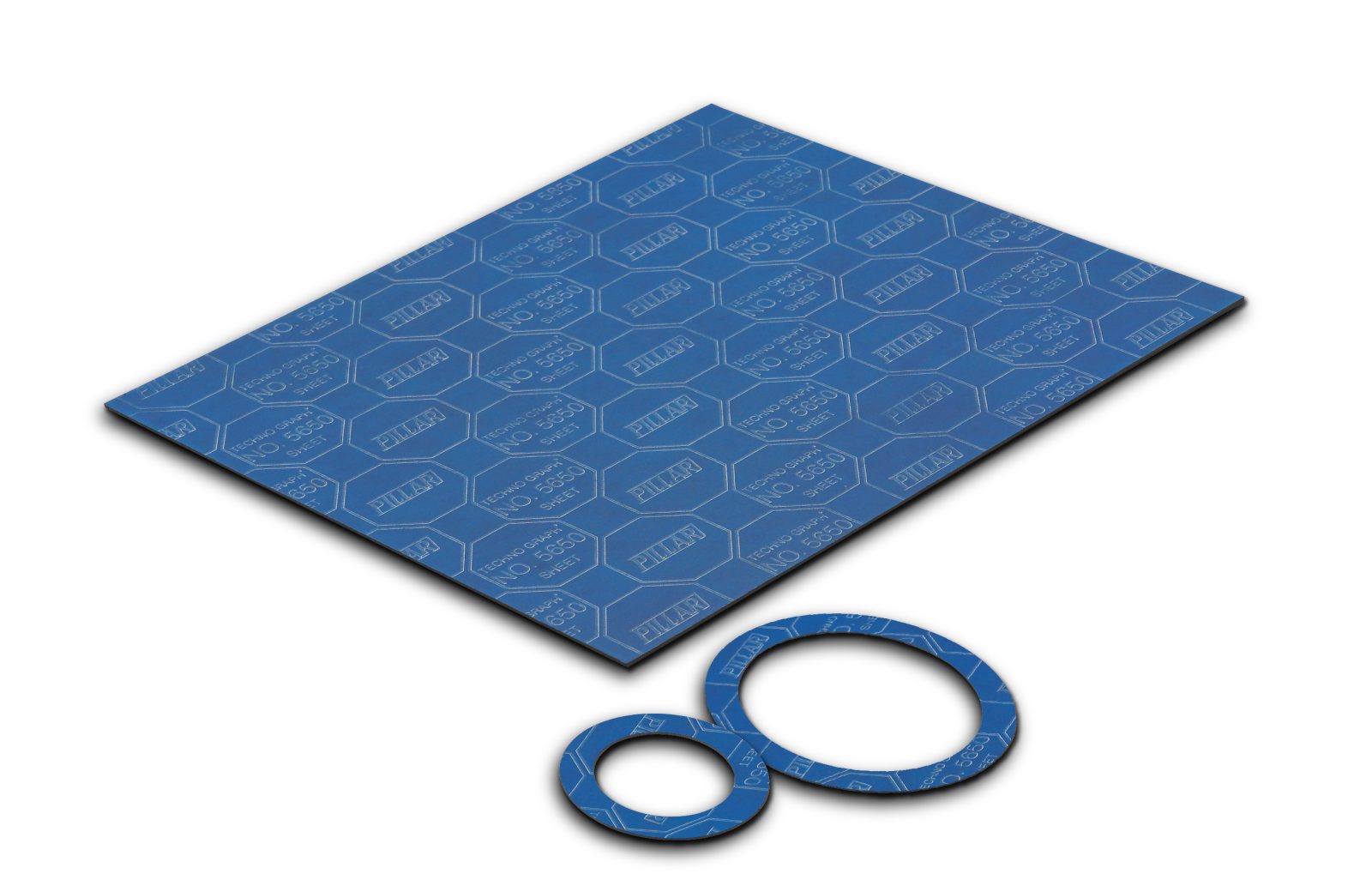

JOINT SHEET NON-ASBESTOS, PILLAR NO.5650 0.5X1500X1500MM

IMPA 811124 ST

Pillar No. 5650 non-asbestos joint sheet gasket (graphite, aramid fibre, rubber binder), 0.5 mm thick, 1,500 × 1,500 mm. Temperature range −100 to 260°C, pressure to 5.2 MPaG (ASME Class 300). For pipe flanges, hatches, and valve bonnets, particularly saturated vapour applications.

JOINT SHEET NON-ASBESTOS, PILLAR NO.5650 0.8X1500X1500MM

IMPA 811125 ST

Pillar No. 5650 non-asbestos joint sheet gasket (graphite, aramid fibre, rubber binder), 0.8 mm thick, 1,500 × 1,500 mm. Temperature range −100 to 260°C, pressure to 5.2 MPaG (ASME Class 300). For pipe flanges, hatches, and valve bonnets, particularly saturated vapour applications.

JOINT SHEET NON-ASBESTOS, PILLAR NO.5650 1.0X1500X2000MM

IMPA 811126 ST

Pillar No. 5650 non-asbestos joint sheet gasket (graphite, aramid fibre, rubber binder), 1.0 mm thick, 1,500 × 2,000 mm. Temperature range −100 to 260°C, pressure to 5.2 MPaG (ASME Class 300). For pipe flanges, hatches, and valve bonnets, particularly saturated vapour applications.

JOINT SHEET NON-ASBESTOS, PILLAR NO.5650 1.5X1500X2000MM

IMPA 811127 ST

Pillar No. 5650 non-asbestos joint sheet gasket (graphite, aramid fibre, rubber binder), 1.5 mm thick, 1,500 × 2,000 mm. Temperature range −100 to 260°C, pressure to 5.2 MPaG (ASME Class 300). For pipe flanges, hatches, and valve bonnets, particularly saturated vapour applications.

JOINT SHEET NON-ASBESTOS, PILLAR NO.5650 2.0X1500X2000MM

IMPA 811128 ST

Pillar No. 5650 non-asbestos joint sheet gasket (graphite, aramid fibre, rubber binder), 2.0 mm thick, 1,500 × 2,000 mm. Temperature range −100 to 260°C, pressure to 5.2 MPaG (ASME Class 300). For pipe flanges, hatches, and valve bonnets, particularly saturated vapour applications.

JOINT SHEET NON-ASBESTOS, PILLAR NO.5650 3.0X1500X2000MM

IMPA 811129 ST

Pillar No. 5650 non-asbestos joint sheet gasket (graphite, aramid fibre, rubber binder), 3.0 mm thick, 1,500 × 2,000 mm. Temperature range −100 to 260°C, pressure to 5.2 MPaG (ASME Class 300). For pipe flanges, hatches, and valve bonnets, particularly saturated vapour applications.
