Butterfly Valves Lock Lever Actuator
Butterfly Valves Lock Lever Actuator is a group of 15 IMPA-coded items (codes 752201–752247) under Butterfly Valves in the Valves & Cocks section (IMPA 75). All of them are priced per piece. The list runs through imperial sizes from 1-1/2" to 8".
Buying guide

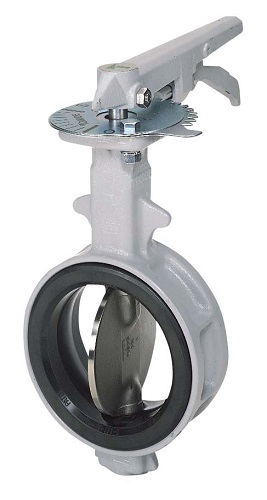

Butterfly valves with a lock lever are quarter-turn valves: a disc on a shaft swings across the bore and a notched lever holds it open, shut or at a set position. The group covers wafer-type bodies, clamped between two pipe flanges, and semi-lugged bodies, in inch sizes.
They are the compact isolation valve of sea-water, fresh-water and ballast branch lines where a gear box is not needed. The engineer raises them as renewals when the seat liner wears and the valve passes, or when a lever or shaft seizes.
How to specify it
Give the size, the body type (wafer or semi-lugged), the flange standard and class the valve must fit between (JIS 5K/10K, DIN PN10/16 or ANSI 150), the body, disc and seat materials, and the service fluid. A wafer valve is located by the flange bolts, so the flange drilling it is made for matters as much as the size.
Quote the face-to-face length of the valve being replaced. ISO 5752 standardises face-to-face dimensions of metallic valves with flanged or wafer ends so that a valve from a different maker fits without pipe modifications; name the series given on the old valve’s data so the offer matches it.[1]
Questions buyers ask
- Wafer or lugged — which do I need?
- Match what is fitted. A wafer body is clamped between the two flanges by the flange bolts; a semi-lugged body has bolt lugs cast on. The catalogue lists them as separate items.
- Will a butterfly valve from another maker fit the same gap?
- Only if it is built to the same face-to-face series. ISO 5752 exists for that interchangeability, so state the series and the old valve’s length on the requisition.
Published by Sherif Awad, founder of GeoMarineHub — in ship supply since 1990, a family business since 1981 (45 years). Last checked .
At a glance
Part of Valves & Cocks (IMPA section 75): Globe, gate, check, ball and butterfly valves, cocks and strainers, by standard, rating and material.
It is one of 6 groups under Butterfly Valves; the others include Butterfly Valves, Butterfly Valves Center Handle Actuator, Butterfly Valves Double Flanged Worm Gear Actuator, Butterfly Valves Double Flanged with Gear Box, Butterfly Valves Worm Gear Actuator.
Post the ones you need as a requirement and verified suppliers activated at your port bid on them — sealed, so nobody sees another bid.
- Items
- 15
- IMPA codes
- 752201–752247
- Priced
- per piece
- Sizes
- 1-1/2" – 8"
