IMPA 67 Gratings

Gratings Fiberglass Phenolic Duragrid

"Gratings Fiberglass Phenolic Duragrid" items from the IMPA marine catalogue with IMPA codes and units of measure — order for your vessel from verified suppliers via Geomarine.

Supply these items

No account needed — tell us the port and we’ll source it for your vessel.

Items

1 items

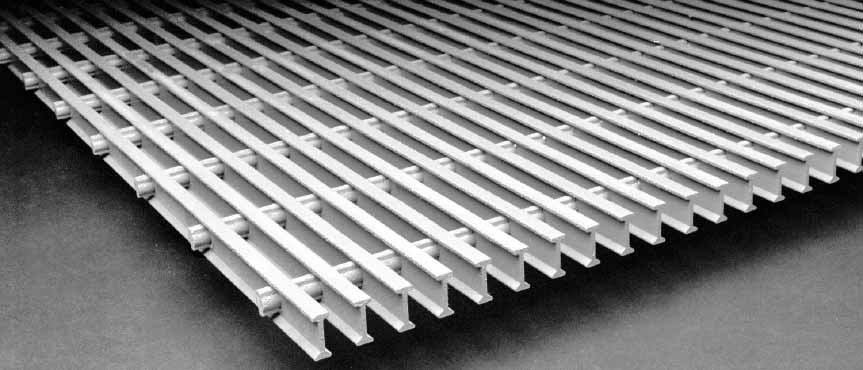

GRATING FIBERGLASS PHENOLIC, WITH FURTHER DETAILS

IMPA 673821 ST

Fibreglass phenolic composite walkway grating for marine use; standard panels 3 ft × 20 ft, 4 ft × 20 ft or 1 m × 6 m; thickness 1.5 in (38 mm); weight 3.2 lbs/SF (15.6 kg/m²); uniform load capacity 312 PSFU (14.9 kN/m²) at 6:1 safety factor; concentrated load 700 PSC (10.2 kN/m) at 5:1; corrosion and fire resistant; cuts with standard hand tools; order by square footage or square metre area and specify hardware (clips and bolts, 4 per panel or per m²).
