IMPA 65 65. Measuring Tools

Engine Indicators

Browse the product families and items within the "Engine Indicators" sub-group of the IMPA marine catalogue, and order them from verified suppliers via Geomarine.

Families

Items

Product families

Crankshaft Distortion Gauges 1 Electronic Indicator Systems 1 Electronic Peak Pressure Gauges 2 Engine Indicators 17 Engine Peak Indicators 2 Indicator Cord 1 Indicator Paper 6 Pen Type Vibration Testers 1 Piezoelectric Pressure Sensors 4 Planimeters 1 Sigma Meters 1

Items in this sub-group

37 items

ENGINE INDICATOR MAX 350 RPM, 40KGF/CM2

IMPA 652601 PCE

Engine indicator, 350 RPM maximum, 40 kgf/cm² range; measures cylinder pressure in reciprocating engines, steam engines and compressors for performance evaluation and horsepower calculation.

ENGINE INDICATOR MAX 350 RPM, 50KGF/CM2

IMPA 652602 PCE

Engine indicator, 350 RPM maximum, 50 kgf/cm² range; measures cylinder pressure in reciprocating engines, steam engines and compressors for performance evaluation and horsepower calculation.

ENGINE INDICATOR MAX 350 RPM, 60KGF/CM2

IMPA 652603 PCE

Engine indicator, 350 RPM maximum, 60 kgf/cm² range; measures cylinder pressure in reciprocating engines, steam engines and compressors for performance evaluation and horsepower calculation.

ENGINE INDICATOR MAX 350 RPM, 70KGF/CM2

IMPA 652604 PCE

Engine indicator, 350 RPM maximum, 70 kgf/cm² range; measures cylinder pressure in reciprocating engines, steam engines and compressors for performance evaluation and horsepower calculation.

ENGINE INDICATOR MAX 350 RPM, 80KGF/CM2

IMPA 652605 PCE

Engine indicator, 350 RPM maximum, 80 kgf/cm² range; measures cylinder pressure in reciprocating engines, steam engines and compressors for performance evaluation and horsepower calculation.

ENGINE INDICATOR MAX 350 RPM, 100KGF/CM2

IMPA 652606 PCE

Engine indicator, 350 RPM maximum, 100 kgf/cm² range; measures cylinder pressure in reciprocating engines, steam engines and compressors for performance evaluation and horsepower calculation.

ENGINE INDICATOR MAX 350 RPM, 120KGF/CM2

IMPA 652607 PCE

Engine indicator, 350 RPM maximum, 120 kgf/cm² range; measures cylinder pressure in reciprocating engines, steam engines and compressors for performance evaluation and horsepower calculation.

ENGINE INDICATOR MAX 350 RPM, 140KGF/CM2

IMPA 652608 PCE

Pressure recording instrument for reciprocating engines, rated to 350 RPM maximum and 140 kgf/cm². Monitors cylinder pressure in internal combustion engines, steam engines and compressors to assess performance uniformity and calculate power output.

ENGINE INDICATOR MAX 350 RPM, 160KGF/CM2

IMPA 652609 PCE

Pressure recording instrument for reciprocating engines, rated to 350 RPM maximum and 160 kgf/cm². Monitors cylinder pressure in internal combustion engines, steam engines and compressors to assess performance uniformity and calculate power output.

ENGINE INDICATOR MAX 600 RPM, 40KGF/CM2

IMPA 652611 PCE

Pressure recording instrument for reciprocating engines, rated to 600 RPM maximum and 40 kgf/cm². Monitors cylinder pressure in internal combustion engines, steam engines and compressors to assess performance uniformity and calculate power output.

ENGINE INDICATOR MAX 600 RPM, 50KGF/CM2

IMPA 652612 PCE

Pressure recording instrument for reciprocating engines, rated to 600 RPM maximum and 50 kgf/cm². Monitors cylinder pressure in internal combustion engines, steam engines and compressors to assess performance uniformity and calculate power output.

ENGINE INDICATOR MAX 600 RPM, 60KGF/CM2

IMPA 652613 PCE

Pressure recording instrument for reciprocating engines, rated to 600 RPM maximum and 60 kgf/cm². Monitors cylinder pressure in internal combustion engines, steam engines and compressors to assess performance uniformity and calculate power output.

ENGINE INDICATOR MAX 600 RPM, 70KGF/CM2

IMPA 652614 PCE

Pressure recording instrument for reciprocating engines, rated to 600 RPM maximum and 70 kgf/cm². Monitors cylinder pressure in internal combustion engines, steam engines and compressors to assess performance uniformity and calculate power output.

ENGINE INDICATOR MAX 600 RPM, 85KGF/CM2

IMPA 652615 PCE

Pressure recording instrument for reciprocating engines, rated to 600 RPM maximum and 85 kgf/cm². Monitors cylinder pressure in internal combustion engines, steam engines and compressors to assess performance uniformity and calculate power output.

ENGINE INDICATOR MAX 600 RPM, 100KGF/CM2

IMPA 652616 PCE

Pressure recording instrument for reciprocating engines, rated to 600 RPM maximum and 100 kgf/cm². Monitors cylinder pressure in internal combustion engines, steam engines and compressors to assess performance uniformity and calculate power output.

ENGINE INDICATOR MAX 600 RPM, 130KGF/CM2

IMPA 652617 PCE

Pressure recording instrument for reciprocating engines, rated to 600 RPM maximum and 130 kgf/cm². Monitors cylinder pressure in internal combustion engines, steam engines and compressors to assess performance uniformity and calculate power output.

ENGINE INDICATOR MAX 600 RPM, 150KGF/CM2

IMPA 652618 PCE

Pressure recording instrument for reciprocating engines, rated to 600 RPM maximum and 150 kgf/cm². Monitors cylinder pressure in internal combustion engines, steam engines and compressors to assess performance uniformity and calculate power output.

PLANIMETER F/ENGINE INDICATOR

IMPA 652621 SET

Planimeter for measuring average effective pressure from engine indicator diagrams and determining areas of plane figures up to 65 × 130 mm; graduation 1 cm² with accuracy to 0.1 cm².

ENGINE PEAK INDICATOR, WITH HANDLE 150KGF/CM2

IMPA 652632 PCE

Engine peak indicator with handle, 150 kgf/cm² capacity. Comprises check valve, oil-filled pressure gauge, and exhaust valve for direct reading of maximum peak pressure without diagram analysis; includes handle for convenient operation.

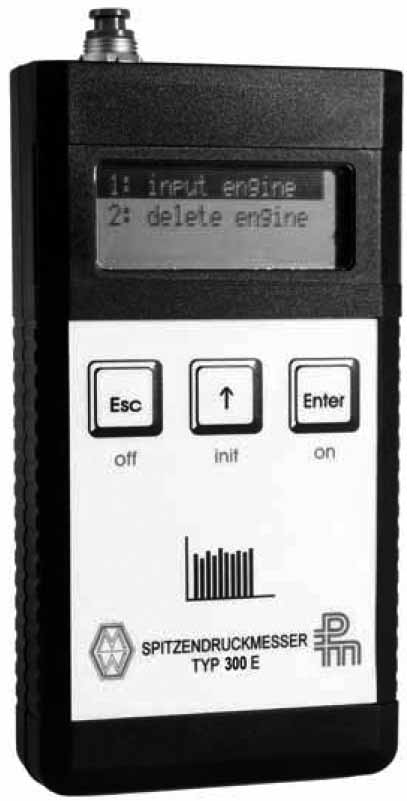

PEAK PRESSURE GAUGE ELECTRONIC, BAEWERT 300E 300BAR 30-3000RPM

IMPA 652635 SET

Baewert 300E electronic peak pressure gauge, 300 bar, 30–3000 rpm range; three-key menu operation for up to 64 cylinders with storage of peak pressure and calculated rotational speed; results displayed as column chart and numerical values; data transfer to PC capable.

PEAK PRESSURE GAUGE ELECTRONIC, BAEWERT 300E WITH SOFTWARE

IMPA 652636 SET

Baewert 300E electronic peak pressure gauge with software, 300 bar, 30–3000 rpm range; three-key menu operation for up to 64 cylinders with storage of peak pressure, rotational speed, date and time; results displayed as column chart and numerical values; PC data transfer and archiving capable.

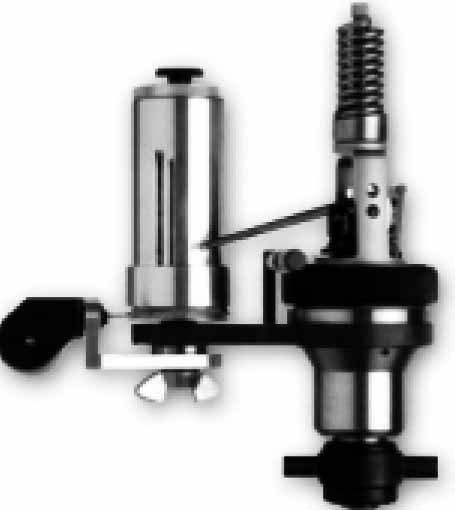

PEAK PRESSURE GAUGE MECHANICAL, BAEWERT TYPE 200/3 20-200BAR

IMPA 652638 PCE

Baewert mechanical peak pressure gauge, type 200/3, 20–200 bar range. Oil-filled instrument for measuring maximum engine peak pressure with direct dial reading; includes check and exhaust valves.

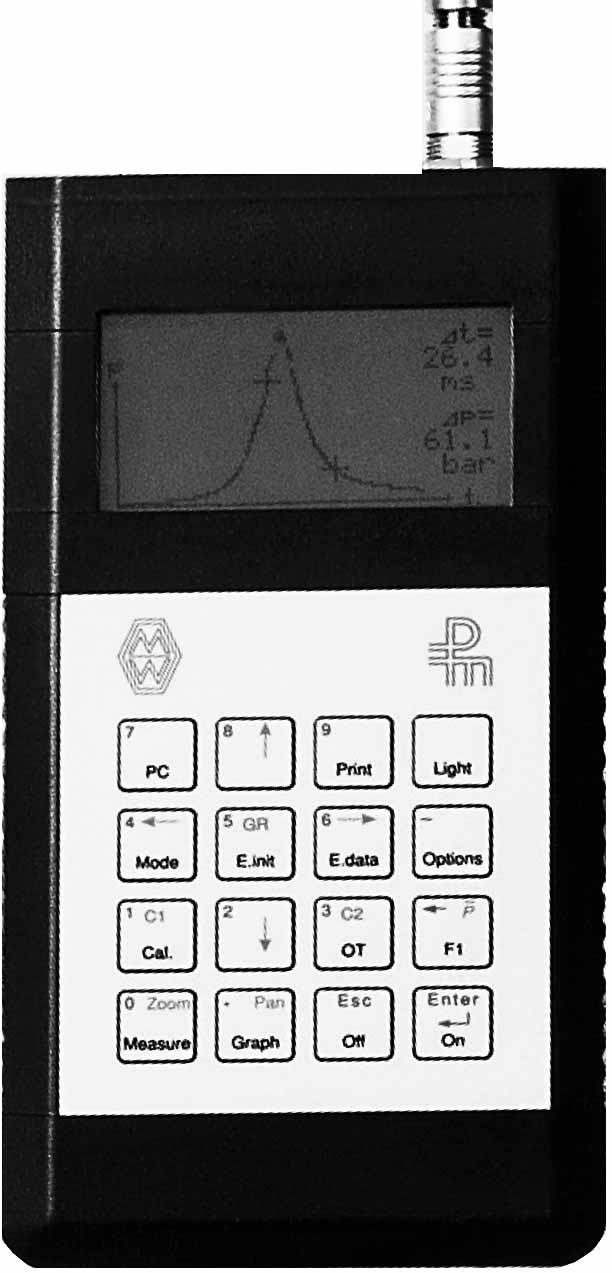

ELECTRONIC INDICATOR SYSTEM, BAEWERT HLV2005MK 0-300BAR

IMPA 652641 SET

Microprocessor-controlled combustion pressure indicator system BAEWERT HLV2005MK, 0–300 bar range. Records cylinder pressure cycles via serial interface to PC; generates p-V graphs, computes mean indicated pressures and individual/total engine power, with data export capability to Excel and standard formats.

SENSOR PIEZOELECTRIC PRESSURE, LDE25 FOR BAEWERT HLV 2005 MK

IMPA 652642 PCE

Piezoelectric pressure sensor model LDE25, designed for Baewert HLV 2005 MK applications.

SENSOR PIEZOELECTRIC PRESSURE, QDE25/L FOR BAEWERT HLV2005MK

IMPA 652643 PCE

Piezoelectric pressure sensor model QDE25/L, designed for Baewert HLV 2005 MK applications.

SENSOR PIEZOELECTRIC PRESSURE, QD200 FOR BAEWERT HLV 2005 MK

IMPA 652644 PCE

Piezoelectric pressure sensor model QD200, designed for Baewert HLV 2005 MK applications.

SENSOR PIEZOELECTRIC PRESSURE, LDE30/H FOR BAEWERT HLV2005MK

IMPA 652645 PCE

Piezoelectric pressure sensor model LDE30/H, designed for Baewert HLV 2005 MK applications.

SIGMA-METER 130X200MM

IMPA 652651 PCE

Sigma-meter, 130 × 200 mm plastic scale plate for calculating main diesel engine mean effective pressure from indicator cards; transparent sliding overlays enable rapid, precise addition of pressure readings (P1–P10); lightweight and compact.

INDICATOR PAPER M-2L, METALLIC WHITE 50'S 65X181MM

IMPA 652654 PCE

Engine pressure indicator recording paper, metallic white, 65 × 181 mm, supplied in pads of 50 sheets.

INDICATOR PAPER M-2, METALLIC WHITE 50'S 66X146MM

IMPA 652655 PCE

Recording paper pad of 50 sheets, 66×146 mm, for engine pressure indicator use. Available in metallic white or red.

INDICATOR PAPER M-2 50'S, 66X146MM NEW TYPE

IMPA 652656 PCE

Recording paper pad of 50 sheets, 66×146 mm, new type, for engine pressure indicator use. Available in white or red.

INDICATOR PAPER M-3 50'S, 55X113MM NEW TYPE

IMPA 652657 PCE

Recording paper pad of 50 sheets, 55×113 mm, new type, for engine pressure indicator use. Available in white or red.

INDICATOR PAPER M-3, METALLIC WHITE 50'S 55X113MM

IMPA 652658 PCE

Recording paper pad of 50 sheets, 55×113 mm, for engine pressure indicator use. Available in metallic white or red.

INDICATOR PAPER W-3, METALLIC WHITE 50'S 35X113MM

IMPA 652659 PCE

Recording paper pad of 50 sheets, 35×113 mm, for engine pressure indicator use. Available in metallic white or red.

INDICATOR CORD

IMPA 652660 MTR

Indicator cord with wire centre, designed for engine pressure indicator applications.

CRANK DISTORTION DIAL GAUGE, 100-500MM 0.01MM GRADUATION

IMPA 652670 SET

Internal crankshaft dial gauge for measuring web distortion and shaft deflection without engine dismantling; range 100–500 mm with 0.01 mm graduation; includes six rods and one extension rod.

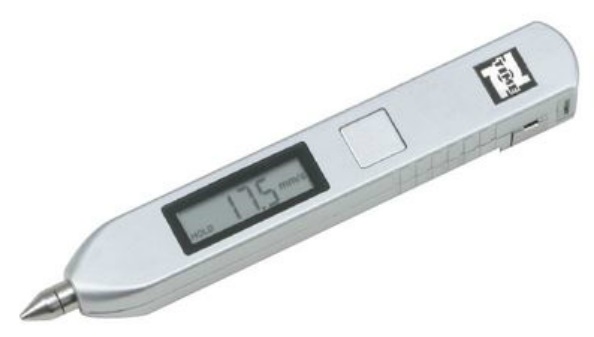

TESTER VIBRATION PEN TYPE, TA415EB 0.01–199.9MM/S(RMS)

IMPA 652671 SET

Handheld vibration tester model TA415EB, measures 0.01–199.9 mm/s (RMS). Detects bearing wear, misalignment and imbalance in motors, pumps and machinery; holds reading for 40 seconds with automatic shut-off.
