IMPA 65 65. Measuring Tools

Detecting Instruments

Browse the product families and items within the "Detecting Instruments" sub-group of the IMPA marine catalogue, and order them from verified suppliers via Geomarine.

Families

Items

Product families

Cable Break Position Locators 1 Emissions Analysers 1 Karl Fischer Moisture Titrators 3 Lub Oil Test Kit 1 Marine Portable Water Test Kits 1 Pinhole and Holiday Detectors 2 Portable Tank Condition Detecting System 1 Sound Level Meters 1 Thermal Imagers 1 Thermal Imagers Intrinsically Safe 1 Titra-lub TBN Test Kit 1 Ultrasonic Liquefied Gas Level Indicator 2 Ultrasonic Watertight Integrity Test Indicator 1 Viscosity Meters 7

Items in this sub-group

24 items

CABLE BREAK POSITION LOCATOR

IMPA 652750 SET

Cable fault locator for 2-wire and coaxial cables; operates by signal transmission between conductors with capacity measurement and meter readout; determines break location and cable length, checks circuit continuity.

THERMAL IMAGER -30 - 650DEG.C, MODEL TG-301

IMPA 652755 SET

Thermal imaging camera, range −30 to 650 °C, model TG-301. Features 16,384-pixel thermal resolution, 30:1 distance-to-spot ratio with laser pointer, and integrated 5-LED flashlight. Response time less than 300 ms.

THERMAL IMAGER INTRINSICALLY, SAFE DRAEGER UCF 7000 (50HZ)

IMPA 652756 SET

Draeger UCF 7000 thermal imaging camera (50 Hz), ATEX Zone 1 intrinsically safe; three selectable modes (Fire, Persons, ThermalScan); includes freeze-frame snapshot function, integrated laser pointer, USB 2.0 interface for configuration and image transfer; suitable for firefighting and search operations in low-visibility conditions.

DETECTOR PINHOLE & HOLIDAY, MODEL TRS-250

IMPA 652763 SET

Model TRS-250 coating integrity detector for identifying pinholes and defects in non-conductive films on metal surfaces; transistorised low-frequency pulse generator with variable output voltage, metre readout, indirect grounding capability, supplied in portable PVC case.

DETECTOR PINHOLE & HOLIDAY, MODEL TRS-70

IMPA 652767 SET

Model TRS-70 coating integrity detector for identifying pinholes and defects in non-conductive films on metal surfaces; transistorised low-frequency pulse generator with variable output voltage, metre readout, indirect grounding capability, supplied in portable PVC case.

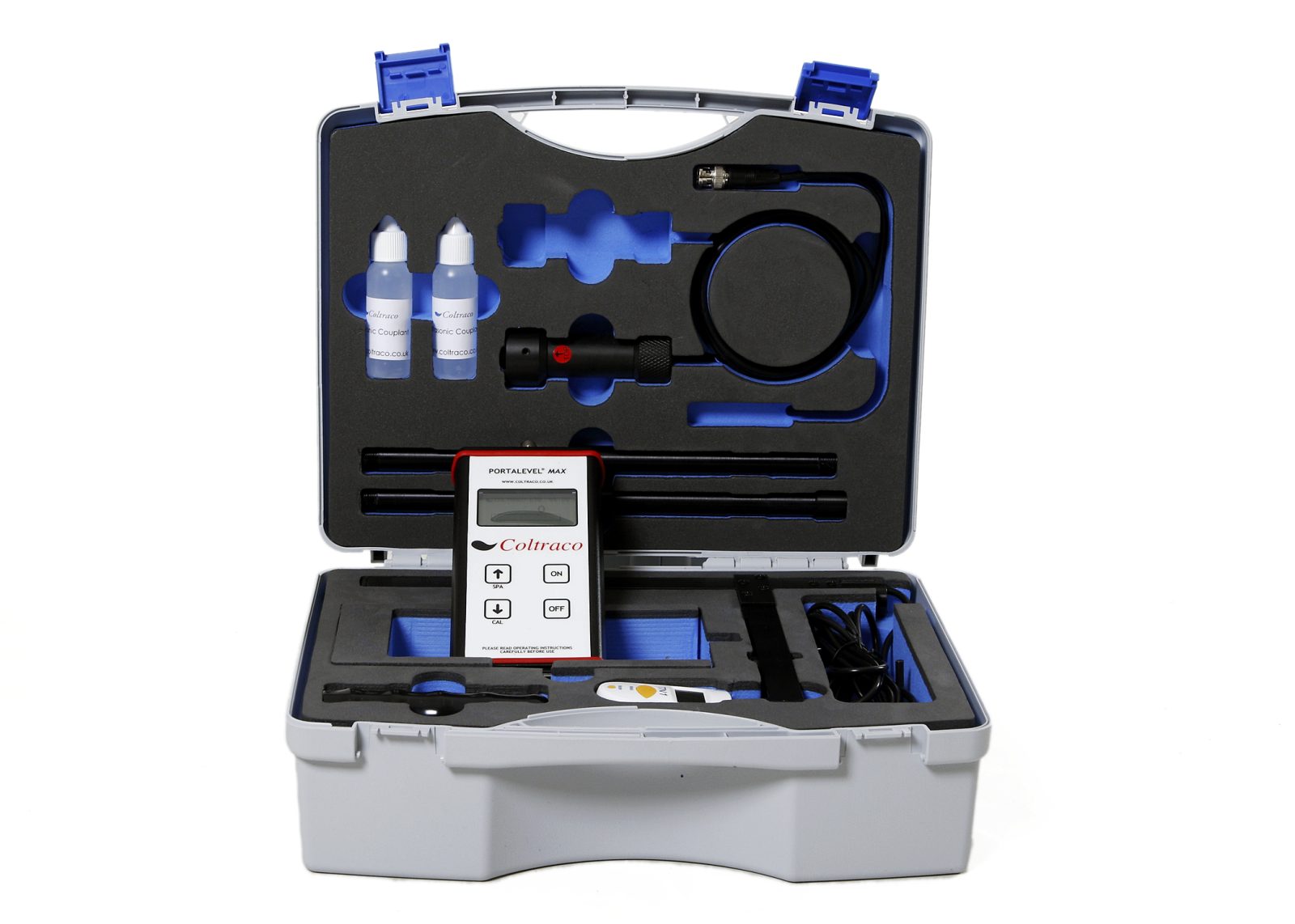

LEVEL INDICATOR ULTRASONIC FOR, LIQUEFIED GAS PORTALEVEL MAX

IMPA 652776 SET

Ultrasonic level indicator for fire suppression cylinders (Portalevel Max Marine). Measures CO₂, FM-200, NOVEC 1230 and other extinguishing agents with ±1.5 mm accuracy. Includes standard 20 mm or mini 12 mm extension rod for multi-banked cylinder access. RINA, UL and NATO approved.

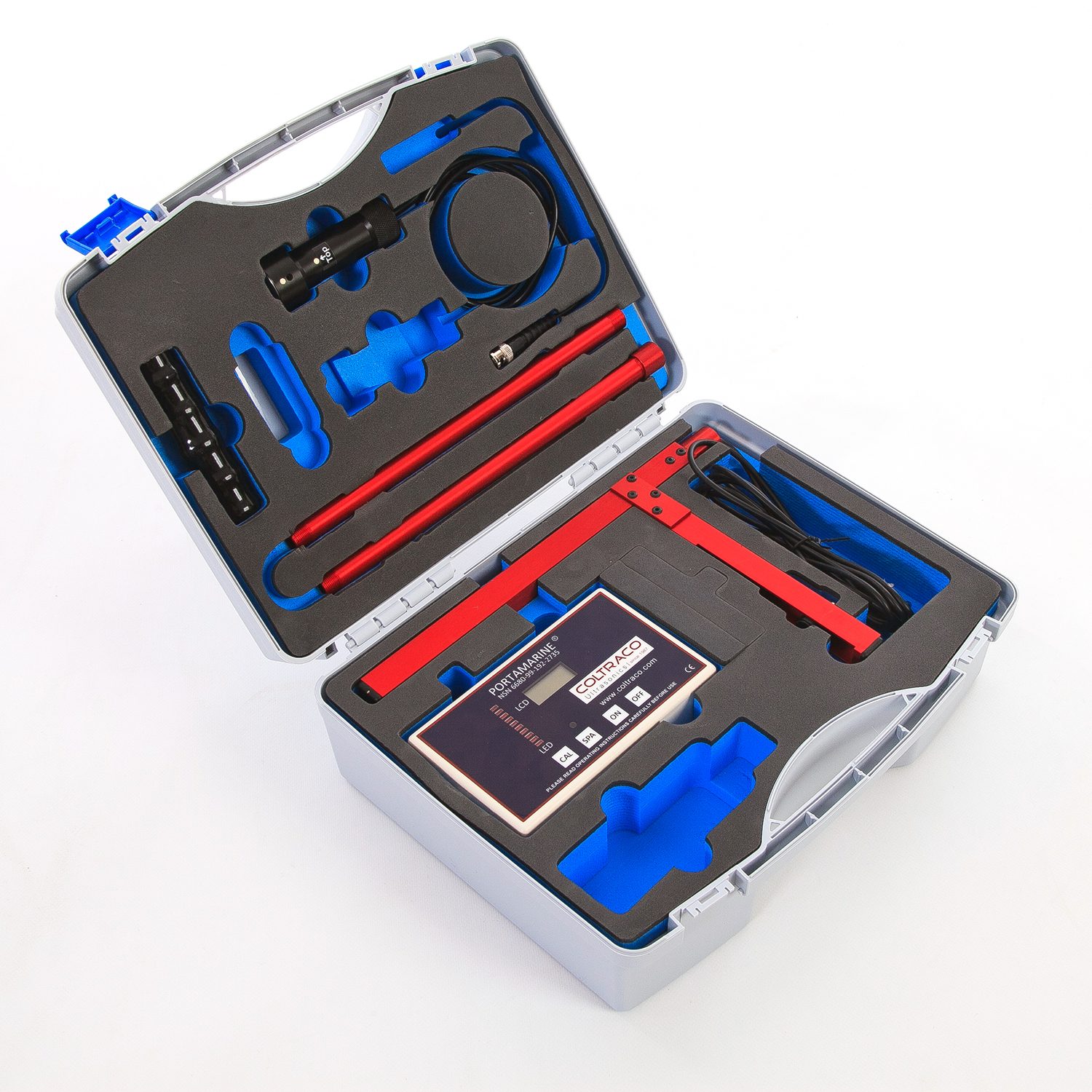

LEVEL INDICATOR ULTRASONIC FOR, LIQUEFIED GAS PORTAMARINE

IMPA 652777 SET

Ultrasonic level indicator for fire suppression cylinders (Portamarine). Measures CO₂, FM-200, NOVEC 1230 and clean agent systems with ±1.5 mm accuracy. Includes carrying strap and choice of standard 20 mm or compact 12 mm extension rod for multi-banked cylinder inspection. RINA, UL and NATO approved.

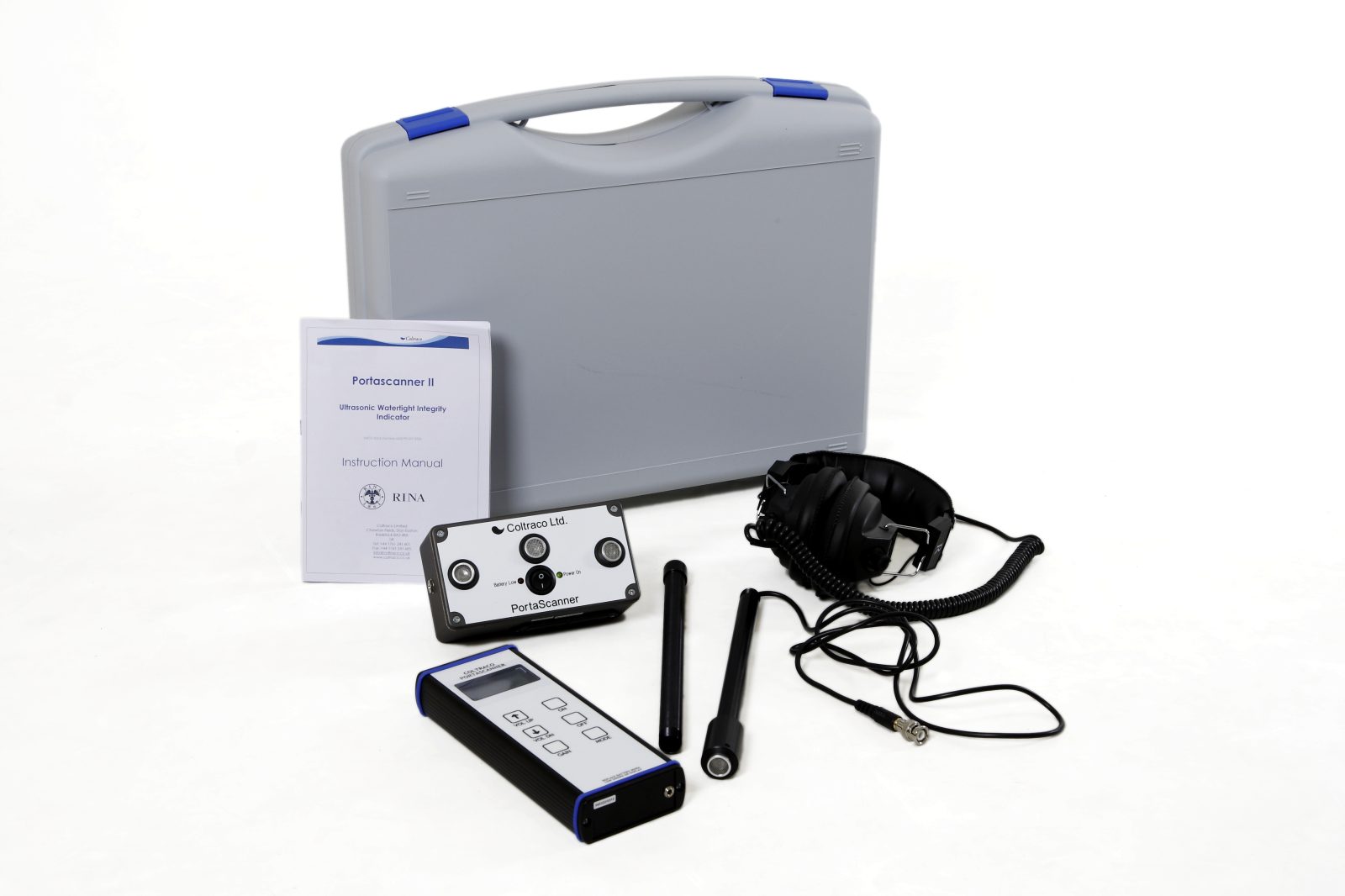

ULTRASONIC WATERTGHT INDICATOR, PORTASCANNER

IMPA 652778 SET

Ultrasonic watertight integrity tester (Portascanner) for compartment doors, hatches, and bulkheads; pinpoint accuracy to 0.06 mm. RINA and NATO approved; supplied with receiver, generator, extension wand, headphones and case.

PORTABLE TANK CONDITION, DETECTING SYSTEM

IMPA 652781 SET

Portable tank condition gauge for SOLAS and MARPOL compliance; measures cargo level, oil–water interface, temperature and tank bottom water; range 0–30/35 m ullage, 0–100 °C temperature; 4.3 kg; rechargeable 2.4 V battery; includes carrying bag, sink weight, dry check adaptor, charger; optional gas and oil sampling units available.

VISCOSITY METER 50-2000MPA/S, WITH STANDARD ROTOR NO.1 & 2

IMPA 652801 SET

Viscosity meter measuring 50–2000 mPa/s range with rotors No. 1 and 2; rapid ten-second measurement for oils, fats, paints and liquids. Specify fluid type and temperature when ordering.

ROTOR NO.0 10-100MPA/S

IMPA 652803 PCE

Rotor No. 0 for viscosity meter, 10–100 mPa/s range.

ROTOR NO.1 50-500MPA/S

IMPA 652804 PCE

Rotor No. 1 for viscosity meter, 50–500 mPa/s range.

ROTOR NO.2 200-2000MPA/S

IMPA 652805 PCE

Rotor No. 2 for viscosity meter, 200–2000 mPa/s range.

ROTOR NO.3 1000-10000MPA/S

IMPA 652806 PCE

Rotor No. 3 for viscosity meter, 1000–10 000 mPa/s range.

ROTOR NO.4 5000-50000MPA/S

IMPA 652807 PCE

Rotor No. 4 for viscosity meter, 5000–50 000 mPa/s range.

ROTOR NO.5 20000-200000MPA/S

IMPA 652808 PCE

Rotor No. 5 for viscosity meter, 20 000–200 000 mPa/s range.

TEST KIT TITRA-LUBE TBN 20 PKG

IMPA 652821 CT

TBN test kit (20 tests per carton) for total base number analysis in mineral and synthetic lubricating oils. Includes disposable sampling syringe; provides colourimetric TBN determination 0–20 mg KOH per gram, requires no calibration or hazardous chemicals.

TEST KIT LUB OIL CHECK 5, FOR 5 DIFFERENT TESTS

IMPA 652822 SET

Portable test kit for assessing lubricating oil condition via five parameters: water content, base number, viscosity, salt water contamination and soot contamination. Enables onboard trend monitoring to support maintenance scheduling and engine component longevity.

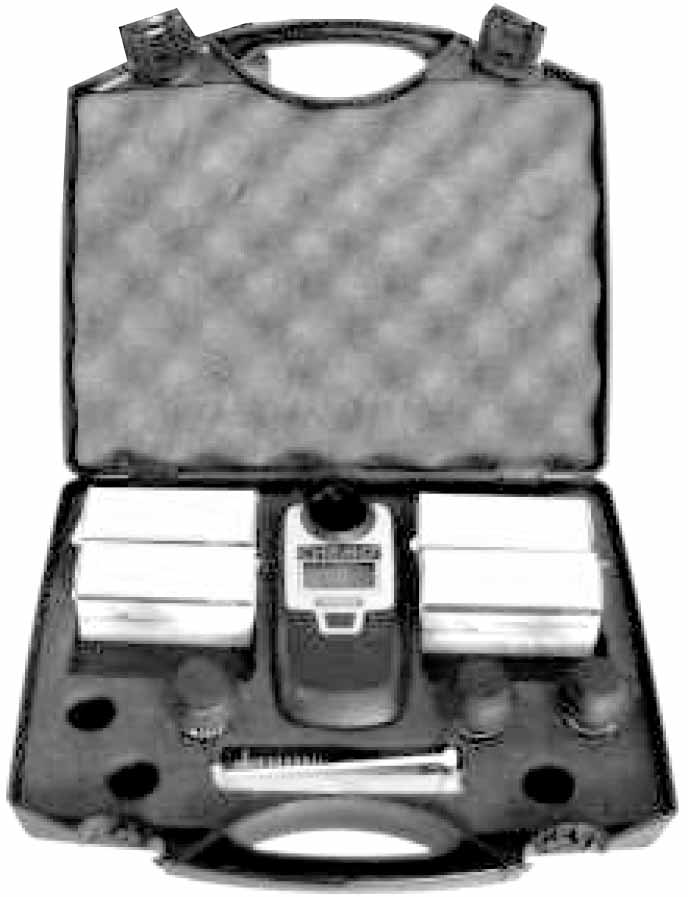

TEST KIT WATER MARINE PORTABLE

IMPA 652825 SET

Portable marine water test kit for monitoring shipboard drinking water quality in accordance with WHO guidelines, ILO 178 (2009), MLC 2006 and IHR 2005 requirements; includes tests for tank and distribution system samples.

TITRATOR MOISTURE KARL FISCHER, VOLMETRIC MOISTURE MKV-710M

IMPA 652831 SET

Volumetric Karl Fischer moisture titrator system (MKV-710M) supporting up to four simultaneous titrators via wireless connection, 8.4-inch colour touchscreen, results exportable to PDF, automatic solvent changeover, and scan mode for optimised evaporation temperature.

TITRATOR MOISTURE KARL FISCHER, COULOMETRIC MKC-710M

IMPA 652833 SET

Coulometric Karl Fischer moisture titrator system (MKC-710M) supporting up to four simultaneous titrators via wireless connection, 8.4-inch colour touchscreen, results exportable to PDF, automatic solvent changeover, and scan mode for optimised evaporation temperature.

TITRATOR MOISTURE KARL FISCHER, HYBRID MKH-700

IMPA 652834 SET

Hybrid Karl Fischer moisture titrator (MKH-700) combining volumetric and coulometric methods with automatic method selection, electrolytic factor measurement without pure water, and electronic record data management.

SOUND LEVEL METER 30-120DB, (3 STEPS) 20-8,000HZ #1067

IMPA 652901 SET

Noise measurement instrument covering 30–120 dB range (three selectable scales), 20–8,000 Hz frequency response, model #1067. Features 3.5-digit LCD display with maximum hold function and over/under scale indicators. Conforms to JIS C-1502 and IEC 60651 Type II.

ANALYSER EMISSIONS PORTABLE, RASI 901-MK

IMPA 652902 SET

RASI 901-MK portable marine emissions analyser kit with electrochemical sensors for O₂, CO, CO₂, NOx (NO+NO₂), SO₂ and hydrocarbon measurement; heated sampling line included. Supports MARPOL Annex VI and NOx Technical Code compliance verification.
