IMPA 21 21. Rope & Hawsers

Mooring Links & Shackles

Browse the product families and items within the "Mooring Links & Shackles" sub-group of the IMPA marine catalogue, and order them from verified suppliers via Geomarine.

Families

Items

Product families

Fairlead Shackles Mandal 2 Mooring Links Boss Link 10 Mooring Links Tonsberg 3 Socket Mooring Wire Roller Pin Type 1 Socketing Resin "Wirelock" 3

Items in this sub-group

19 items

LINK TIMM BOSS WITH BOLT 120T, B/S:120TON W/N.K. CERTIFICATE

IMPA 211141 PCE

Stainless steel mooring link, 120 ton breaking strain, fitted with bolt. Connects wire or UHMW rope to fibre forerunner. DNV proof-tested; recommended working load 33% MBL, normal working load 20% MBL.

LINK TIMM BOSS WITH BOLT 165T, B/S:165TON W/N.K. CERTIFICATE

IMPA 211142 PCE

Stainless steel mooring link, 165 ton breaking strain, fitted with bolt. Connects wire or UHMW rope to fibre forerunner. DNV proof-tested; recommended working load 33% MBL, normal working load 20% MBL.

LINK TIMM BOSS W/ROLLER 120T, B/S:120TON W/N.K. CERTIFICATE

IMPA 211143 PCE

Stainless steel mooring link, 120 ton breaking strain, fitted with roller. Connects wire or UHMW rope to fibre forerunner. DNV proof-tested; recommended working load 33% MBL, normal working load 20% MBL.

LINK TIMM BOSS W/ROLLER 165T, B/S:165TON W/N.K. CERTIFICATE

IMPA 211144 PCE

Stainless steel mooring link, 165 ton breaking strain, fitted with roller. Connects wire or UHMW rope to fibre forerunner. DNV proof-tested; recommended working load 33% MBL, normal working load 20% MBL.

LINK TIMM BOSS WITH BOLT 140T, B/S:140TON W/N.K. CERTIFICATE

IMPA 211145 PCE

Stainless steel mooring link, 140 ton breaking strain, fitted with bolt. Connects wire or UHMW rope to fibre forerunner. DNV proof-tested; recommended working load 33% MBL, normal working load 20% MBL.

LINK TIMM BOSS WITH BOLT 180T, B/S:180TON W/N.K. CERTIFICATE

IMPA 211146 PCE

Stainless steel mooring link, 180 ton breaking strain, fitted with bolt. Connects wire or UHMW rope to fibre forerunner. DNV proof-tested; recommended working load 33% MBL, normal working load 20% MBL.

LINK TIMM BOSS WITH BOLT 250T, B/S:250TON W/N.K. CERTIFICATE

IMPA 211147 PCE

Stainless steel mooring link, 250 ton breaking strain, fitted with bolt. Connects wire or UHMW rope to fibre forerunner. DNV proof-tested; recommended working load 33% MBL, normal working load 20% MBL.

LINK TIMM BOSS W/ROLLER 140T, B/S:140TON W/N.K. CERTIFICATE

IMPA 211148 PCE

Stainless steel mooring link, 140 ton breaking strain, fitted with roller. Connects wire or UHMW rope to fibre forerunner. DNV proof-tested; recommended working load 33% MBL, normal working load 20% MBL.

LINK TIMM BOSS W/ROLLER 180T, B/S:180TON W/N.K. CERTIFICATE

IMPA 211149 PCE

Stainless steel mooring link, 180 ton breaking strain, fitted with roller. Connects wire or UHMW rope to fibre forerunner. DNV proof-tested; recommended working load 33% MBL, normal working load 20% MBL.

LINK TIMM BOSS W/ROLLER 250T, B/S:250TON W/N.K. CERTIFICATE

IMPA 211150 PCE

Stainless steel mooring link, 250 ton breaking strain, fitted with roller. Connects wire or UHMW rope to fibre forerunner. DNV proof-tested; recommended working load 33% MBL, normal working load 20% MBL.

LINK MOORING TONSBERG 90T, WITH DNV CERTIFICATE

IMPA 211151 PCE

Compact galvanised steel mooring link, 90 tonne working load, with DNV proof certification. Connects wire rope to fibre forerunner; each unit individually tested and certified.

LINK MOORING TONSBERG 120T, WITH DNV CERTIFICATE

IMPA 211152 PCE

Compact galvanised steel mooring link, 120 tonne working load, with DNV proof certification. Connects wire rope to fibre forerunner; each unit individually tested and certified.

LINK MOORING TONSBERG 180T

IMPA 211153 PCE

Galvanised steel mooring link for connecting wire rope to fibre forerunner. Available in 90T, 120T, and 180T; 300T on request. Individually DNV proof-tested and certified.

SHACKLE FAIRLEAD MANDAL 90M, WITH DNV CERTIFICATE

IMPA 211156 PCE

Stainless steel mooring shackle, 90 mm, with steel wire rope around sheave and fibre rope body; DNV proof tested and certified.

SHACKLE FAIRLEAD MANDAL 120M, WITH DNV CERTIFICATE

IMPA 211157 PCE

Stainless steel mooring shackle, 120 mm, with steel wire rope around sheave and fibre rope body; DNV proof tested and certified.

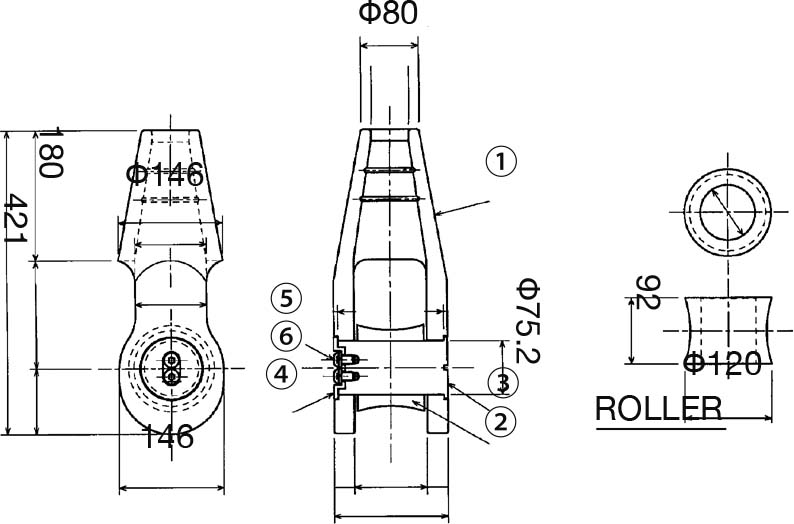

SOCKET ROLLER PIN TYPE 0-42, CARBON & ALLOY STEEL

IMPA 211171 PCE

Carbon and alloy steel roller socket (0-42) with detachable pin and roller for direct connection of synthetic mooring tail rope to wire rope; pre-attachment by factory recommended or field installation via Wirelock socketing media.

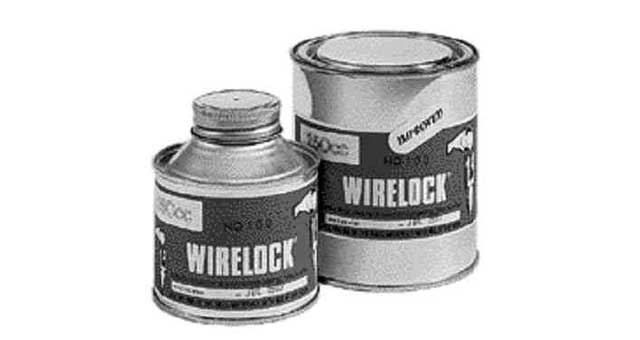

RESIN WIRE SOCKETING WIRELOCK, 250CC

IMPA 211175 SET

Two-part resin socketing kit 250 cc for wire rope terminations with roller sockets; achieves full strength with steel and galvanised wire rope; cure time one hour before service.

RESIN WIRE SOCKETING WIRELOCK, 500CC

IMPA 211176 SET

Two-part resin socketing kit 500 cc for wire rope terminations with roller sockets; achieves full strength with steel and galvanised wire rope; cure time one hour before service.

RESIN WIRE SOCKETING WIRELOCK, 1000CC

IMPA 211177 SET

Two-part resin socketing kit 1000 cc for wire rope terminations with roller sockets; achieves full strength with steel and galvanised wire rope; cure time one hour before service.
