IMPA 79 Plug & Receptacles

Plugs & Receptacles Watertight 3-pin U.S.C.G. R&S type

"Plugs & Receptacles Watertight 3-pin U.S.C.G. R&S type" items from the IMPA marine catalogue with IMPA codes and units of measure — order for your vessel from verified suppliers via Geomarine.

Supply these items

No account needed — tell us the port and we’ll source it for your vessel.

Items

11 items

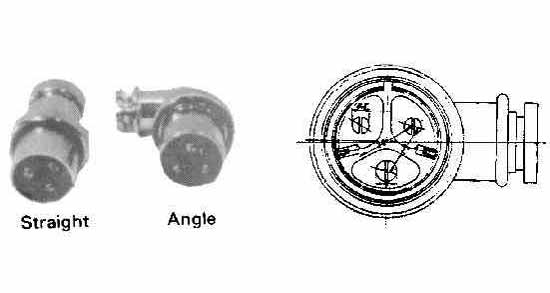

PLUG WATERTIGHT 3PIN STRAIGHT, USCG TYPE R&S BRASS

IMPA 792851 PCE

Watertight 3-pin straight plug, USCG Type R&S, brass construction with cast iron receptacle box and synthetic rubber seal. Rated 250V, 10 amp; pins 6.8 mm and 5.3 mm diameter.

PLUG WATERTIGHT 3PIN ANGLE, USCG TYPE R&S BRASS

IMPA 792852 PCE

Watertight 3-pin angled plug, USCG Type R&S, brass construction with cast iron receptacle box and synthetic rubber seal. Rated 250V, 10 amp; pins 6.8 mm and 5.3 mm diameter.

RECEPTACLE WATERTIGHT 3PIN, USCG TYPE R&S CAST-IRON

IMPA 792856 PCE

Cast iron receptacle box with synthetic rubber seal and brass plug, 250V 10A rating. Pin configuration: one 6.8 mm and two 5.3 mm diameter.

RECEPTACLE W/SWITCH WATERTIGHT, 3PIN USCG TYPE R&S CAST-IRON

IMPA 792857 PCE

Cast iron receptacle box with integral switch, synthetic rubber seal and brass plug, 250V 10A rating. Pin configuration: one 6.8 mm and two 5.3 mm diameter.

STRAIGHT PLUG&RECEPTACLE 3PIN, WATERTIGHT USCG TYPE R&S

IMPA 792861 SET

Straight-entry 3-pin plug and receptacle set, cast iron with synthetic rubber sealing, 250V 10A, USCG type R&S.

ANGLE PLUG&RECEPTACLE 3PIN, WATERTIGHT USCG TYPE R&S

IMPA 792862 SET

Angled-entry 3-pin plug and receptacle set, cast iron with synthetic rubber sealing, 250V 10A, USCG type R&S.

STRAIGHT PLUG&RECEPTACLE 3PIN, W/SWITCH W/T USCG TYPE R&S

IMPA 792863 SET

Straight-entry 3-pin plug and receptacle set with built-in switch, cast iron with synthetic rubber sealing, 250V 10A, USCG type R&S.

ANGLE PLUG&RECEPTACLE 3PIN, W/SWITCH W/T USCG TYPE R&S

IMPA 792864 SET

Angled-entry 3-pin plug and receptacle set with built-in switch, cast iron with synthetic rubber sealing, 250V 10A, USCG type R&S.

INTERIOR FOR 3PIN PLUG, USCG TYPE R&S

IMPA 792866 PCE

Replacement interior assembly for 3-pin plug, USCG type R&S.

INTERIOR FOR 3PIN RECEPTACLE, USCG TYPE R&S

IMPA 792867 PCE

Replacement interior assembly for 3-pin receptacle, USCG type R&S.

SWITCH INTERIOR FOR RECEPTACLE, USCG TYPE R&S

IMPA 792868 PCE

Replacement interior assembly with switch function for 3-pin receptacle, USCG type R&S.
