IMPA 69 Bolts

Square Neck Bolts Cap Head

"Square Neck Bolts Cap Head " items from the IMPA marine catalogue with IMPA codes and units of measure — order for your vessel from verified suppliers via Geomarine.

Supply these items

No account needed — tell us the port and we’ll source it for your vessel.

Items

1 items

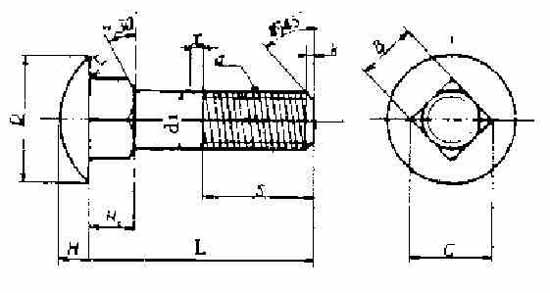

BOLT CAP HEAD SQUARE NECK, WITH FURTHER DETAIL

IMPA 691001 PCE

Cap head square neck bolt (CODE 691001). Available in nominal sizes M5×0.8 through M16 with specified dimensions: M5 (d1=5, D=11.5–17, H=2.5–5.5, B=6, L=25–50); M6 (d1=6, D=14–20, H=3–6, B=5, L=30–75); M8 (d1=8, D=18–26, H=4–7, B=8, L=35–100); M10 (d1=10, D=22–32, H=5–8, B=10, L=40–100); M12 (d1=12, D=26–38, H=6–9, B=12, L=45–130); M16 (d1=16, D=32, H=10, B=16, L=55–140). Order by specifying material, nominal size, thread pitch and length.

Other families in Bolts

Brass Hexagon Head Bolts 391 Brass Hexagon Head Bolts and Nuts 391 Cap Screws Hexagon Socket Head 1 Dog Bolts 1 Eye Bolts Steel 10 Socket Screws Button Head 1 Socket Screws Flat Head 1 Stainless Steel Hexagon Head Bolts 391 Stainless Steel Hexagon Head Bolts and Nuts 391 Stud Bolts 1 Studs Whole Thread 42 U-bolts Ship's Steel Pipe 48

Back to 69. Screws & Nuts →
