IMPA 49 49. Hardware

Cabinet Door Accessories

Browse the product families and items within the "Cabinet Door Accessories" sub-group of the IMPA marine catalogue, and order them from verified suppliers via Geomarine.

Families

Items

Product families

Barrel Bolts 1 Cabinet Catches 4 Cabinet Knobs 3 Cabinet Pulls 3 Cupboard Adjusters 1 Door Keepers 1 Fixed Knobs 2 Friction Latches 1 Ring Pull Latches 2 Seal Plate and Cover 1 Steel Locker Handles 1 Tight Door Clip Handles for Weather Tight Door 1

Items in this sub-group

21 items

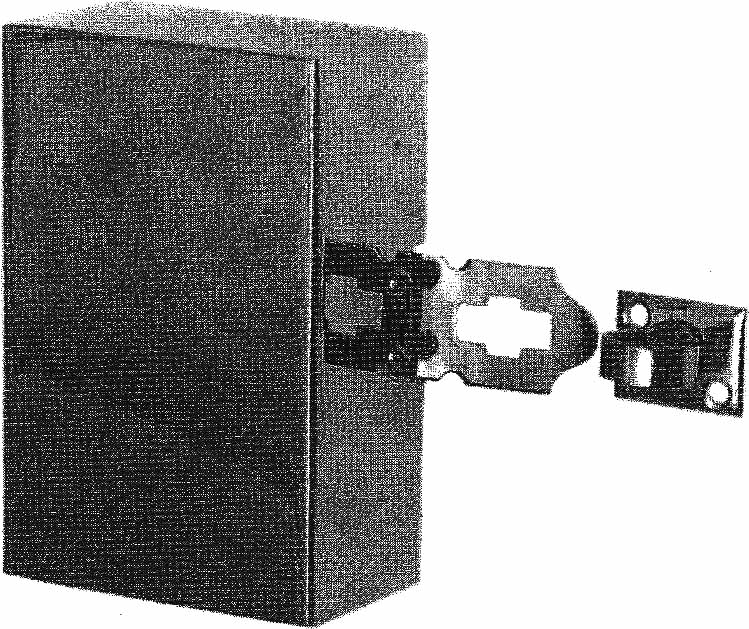

SEAL PLATE & COVER S. STEEL, 60X30X90MM FOR BOND STORE ROOM

IMPA 490653 PCE

Stainless steel seal plate and cover, 60 × 30 × 90 mm, fixed to bonded store room door and frame; accepts padlock cylinder. Includes ø4.1 mm × 8 screws.

CABINET PULL BRASS A-TYPE 75MM

IMPA 490801 PCE

Brass cabinet pull, A-type, 75 mm between screw holes; for drawers and cabinet doors. Specify mounting hole centres when ordering.

CABINET PULL BRASS A-TYPE, 100MM

IMPA 490802 PCE

Brass cabinet pull, A-type, 100 mm between screw holes; for drawers and cabinet doors. Specify mounting hole centres when ordering.

CABINET PULL BRASS A-TYPE, 125MM

IMPA 490803 PCE

Brass cabinet pull, A-type, 125 mm between screw holes; for drawers and cabinet doors. Specify mounting hole centres when ordering.

CABINET KNOB BRASS W/FLANGE, KNOB DIA 16MM

IMPA 490821 PCE

Brass cabinet knob with flange; knob diameter 16 mm.

CABINET KNOB BRASS W/FLANGE, KNOB DIA 22MM

IMPA 490822 PCE

Brass cabinet knob with flange; knob diameter 22 mm.

CABINET KNOB BRASS W/FLANGE, KNOB DIA 30MM

IMPA 490823 PCE

Brass cabinet knob with flange; knob diameter 30 mm.

STEEL LOCKER HANDLE

IMPA 490826 PCE

Replacement steel locker handle, zinc alloy die-cast construction with steel components.

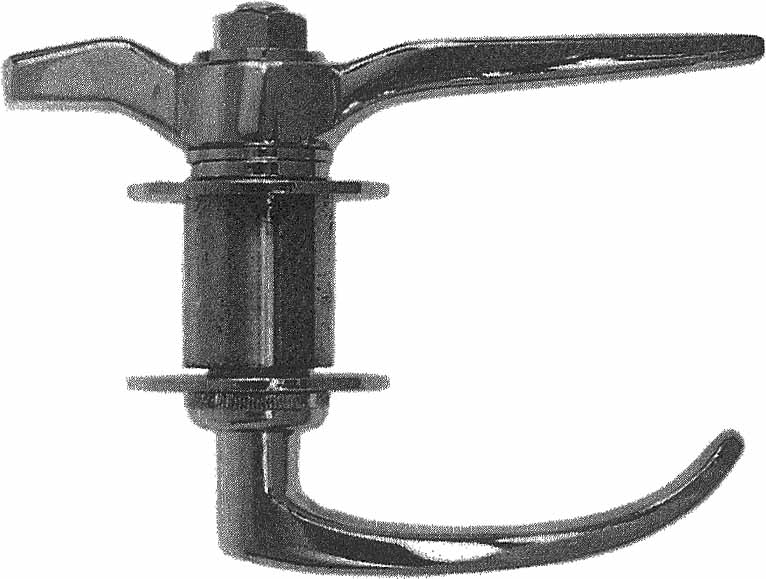

HANDLE CLIP TIGHT DOOR BRASS

IMPA 490828 PCE

Brass handle clip designed for entrance doors requiring secure weathertight sealing on deck or in engine spaces.

CABINET CATCH STAINLESS STEEL, B-TYPE

IMPA 490831 SET

Stainless steel B-type cabinet catch. Functions as a stopper for cabinet and filing cabinet doors in closed position; also suitable for drawer application when mounted to drawer rear.

CABINET CATCH PHOSPHOR BRONZE, C-TYPE

IMPA 490832 SET

Phosphor bronze C-type cabinet catch; holds cabinet doors and drawers in closed position when fitted to backside.

CABINET CATCH PHOSPHOR BRONZE, D-TYPE

IMPA 490833 SET

Phosphor bronze D-type cabinet catch; holds cabinet doors and drawers in closed position when fitted to backside.

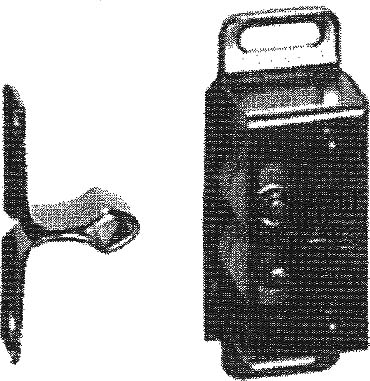

BOX CATCH STEEL & PLASTIC, BASE SIZE 15MMX47MM

IMPA 490834 SET

Steel and plastic box catch, base size 15 mm × 47 mm; secures cabinet doors and drawers in closed position.

DRAWER KEEPER STAINLESS STEEL, 12X45MM

IMPA 490836 PCE

Stainless steel drawer catch, 12 × 45 mm plate, fitted with two ø3.1 mm screws. Prevents cabinet doors opening due to vessel motion.

FIXED KNOB FOR TURNBUCKLE, HANDLE DIA 30MM

IMPA 490846 PCE

Decorative fixed knob for turnbuckle on double-leaf doors, 30 mm handle diameter.

FIXED KNOB FOR TURNBUCKLE, HANDLE DIA 40MM

IMPA 490847 PCE

Decorative fixed knob for turnbuckle on double-leaf doors, 40 mm handle diameter.

FRICTION LATCH CABINET DOOR, 19X53MM

IMPA 490903 SET

Stainless steel friction latch for cabinet doors, plate size 19 × 53 mm with ø 2.7 mm × 4 screws.

RING PULL LATCH CABINET DOOR, 15X45X68MM

IMPA 490905 PCE

Zinc alloy die-cast ring pull latch for cabinet doors, 15 × 45 × 68 mm. Functions as door holder or handle.

RING PULL LATCH CABINET DOOR, 20X75X60MM

IMPA 490906 PCE

Zinc alloy die-cast latch mechanism with ring pull, 20×75×60 mm, functioning as both door hold and handle.

BARREL BOLT FOR CABINET, PLATE SIZE 27X43MM

IMPA 490913 SET

Barrel bolt for cabinet doors, plate size 27 × 43 mm. Steel and zinc alloy die-cast construction for double-leaf doors; fastening screws ø 2.7 mm × 8.

CUPBOARD ADJUSTER, MAXIMUM LENGTH 166MM

IMPA 490916 PCE

Brass overhead door hold-open device to prevent cabinet doors slamming in rough sea conditions; maximum extended length 166 mm; includes ø3.1 mm × 4 screws.
