IMPA 23 Hatch Cover Parts

Balancing Roller Assembly 22.09 above 4 tons

"Balancing Roller Assembly 22.09 above 4 tons" items from the IMPA marine catalogue with IMPA codes and units of measure — order for your vessel from verified suppliers via Geomarine.

Supply these items

No account needed — tell us the port and we’ll source it for your vessel.

Items

7 items

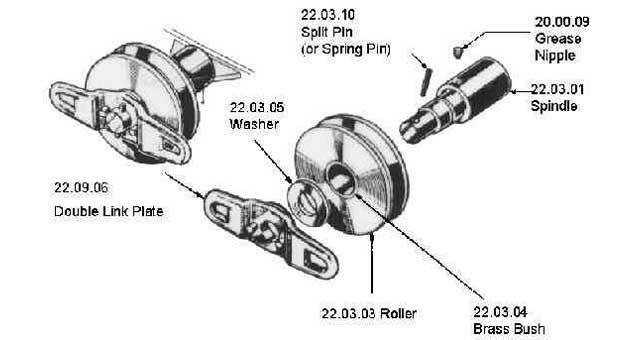

MACGREGOR HATCH BALANCE ROLLER, ASS'Y 4TON #22.09 W/D'BLEPLATE

IMPA 233306 SET

MacGregor hatch balance roller assembly, 4 tonne capacity, #22.09 with double link plate for single-pull and MacGregor covers.

MACGREGOR HATCH SPINDLE, #22.03.01

IMPA 233307 PCE

MacGregor hatch spindle, #22.03.01, for single-pull and MacGregor covers 4 tonnes and above with single link plate.

MACGREGOR HATCH ROLLER, #22.03.03

IMPA 233308 PCE

Roller component for MacGregor hatch covers exceeding 4 tonnes, single pull configuration with single link plate assembly.

MACGREGOR HATCH BRASS BUSH, #22.03.04

IMPA 233309 PCE

Brass bush component for MacGregor hatch covers exceeding 4 tonnes, single pull configuration with single link plate assembly.

MACGREGOR HATCH WASHER, #22.03.05

IMPA 233310 PCE

Washer component for MacGregor hatch covers exceeding 4 tonnes, single pull configuration with single link plate assembly.

MACGREGOR HATCH SPRING PIN, #22.03.10

IMPA 233311 PCE

Spring pin component for MacGregor hatch covers exceeding 4 tonnes, single pull configuration with single link plate assembly.

MACGREGOR HATCH DOUBLE LINK, PLATE #22.09.06

IMPA 233312 PCE

Double link plate component for MacGregor hatch covers exceeding 4 tonnes, single pull configuration with single link plate assembly.

Other families in Hatch Cover Parts

Balancing Roller Assembly 22.04 2-1/2 - 4 tons 7 Balancing Roller Assembly 22.05 2-1/2 - 4 tons 2 Balancing Roller Assembly 22.10 above 4 tons 2 Cross Joint Wedge Assembly 12.00 5 Eccentric Wheel Assembly 20.00/20.01 20.02/20.03 16 Flush Deck Cleat Assembly 11.50 10 Hatch Wedges 6 Junction Pieces 40.50 & 40.51 6 Oil Jacks for MacGregor Hatch Cover 5 Packing for Macgregor Hatch Cover 4 Quick Acting Cleat Assembly 13.00, 13.01 12 Quick Acting Cleat Assembly 13.02 4
