IMPA 81 81. Packing & Jointing

Gaskets / Joint Sheets

Browse the product families and items within the "Gaskets / Joint Sheets" sub-group of the IMPA marine catalogue, and order them from verified suppliers via Geomarine.

Families

822

Items

Product families

Bi-directional PTFE Sheet Gasket 6 Butterworth Hole Gaskets 1 Clutch Facings 1 Compressed Non-Asbestos Fiber Sheet 18 Expanded Graphite Joint Sheet Gaskets 12 Felt Packing Sheets 18 Flange Gaskets 207 High Performance Non-Asbestos Sheet - Valqua No.GF-300 3 Joint Sheets All Purpose Non-asbestos 1 Joint Sheets Canvas Insertion Rubber 6 Joint Sheets Cortex 4 Joint Sheets Cotton Insertion Rubber 3 Joint Sheets Fiber 7 Joint Sheets Gasket Non-asbestos Graphite 6 Joint Sheets Gaskets (Common Used) 12 Joint Sheets Metal Foil Inserted Graphite #6633 6 Joint Sheets Natural Rubber 12 Joint Sheets Synthetic Rubber 12 Joint Sheets Vegetable Fiber Oil-proof 8 Joint Sheets gasket Non-asbestos Chemical 1 Joint Sheets gasket Non-asbestos Compressed Air 1 Joint Sheets gasket Non-asbestos Exhaust Gas 1 Joint Sheets gasket Non-asbestos Feed/Boiler Water 1 Joint Sheets gasket Non-asbestos Fresh/Condensate Water 1 Joint Sheets gasket Non-asbestos Fuel/Cargo Oil 1 Joint Sheets gasket Non-asbestos Steam 1 Jointing Sheets Aramid Fiber Hybrid Rubber Pillar #5003 4 Jointing Sheets Beldam Universal Non-asbestos #172 6 Jointing Sheets Expanded Graphite Novaphit SSTC 4 Jointing Sheets General Service Non-asbestos #178 6 Leather Sheets 8 Low Creep PTFE Sheet Gasket Mixed with Selectable Fillers 9 Manhole Packing Non-asbestos 4 Non-asbestos Mica Jointing Sheets Pilotseal Jointing (201) 6 Semi-Metallic Gaskets 1 Spiral Wound Gasket Blacktight Valqua No.6590 Series 4 Spiral Wound Gasket Cleantight Valqua No.8590 Series 4 Spiral Wound Gasket Whitetight Valqua No.7590 Series 3 Spiral Wound Gasket with Lines Lined Cleantight Valqua No.8590L Series 4 Spiral Wound Gaskets 384 Valflon (PTFE) Gasket 12 Valflon Envelope Gasket 3 Valquafoil (Expanded Graphite) Gasket 3 Viton Rubber Sheets 7

Items in this sub-group

822 items

GASKET SHEET PTFE LOW CREEP, PILLAR NO.4002 3.0X1500X1500MM

IMPA 811386 ST

PTFE low-creep gasket sheet with fillers, Pillar No.4002, 3.0×1500×1500 mm. Suited to low-torque flange applications with excellent compression fit.

GASKET SHEET PTFE LOW CREEP, PILLAR NO.4003 1.5X1500X1500MM

IMPA 811387 ST

PTFE low-creep gasket sheet with fillers, Pillar No.4003, 1.5×1500×1500 mm. Resists strong alkali and oxygen; suitable for food-contact applications.

GASKET SHEET PTFE LOW CREEP, PILLAR NO.4003 2.0X1500X1500MM

IMPA 811388 ST

PTFE low-creep gasket sheet with fillers, Pillar No.4003, 2.0×1500×1500 mm. Resists strong alkali and oxygen; suitable for food-contact applications.

GASKET SHEET PTFE LOW CREEP, PILLAR NO.4003 3.0X1500X1500MM

IMPA 811389 ST

PTFE low-creep gasket sheet with fillers, Pillar No.4003, 3.0×1500×1500 mm. Resists strong alkali and oxygen; suitable for food-contact applications.

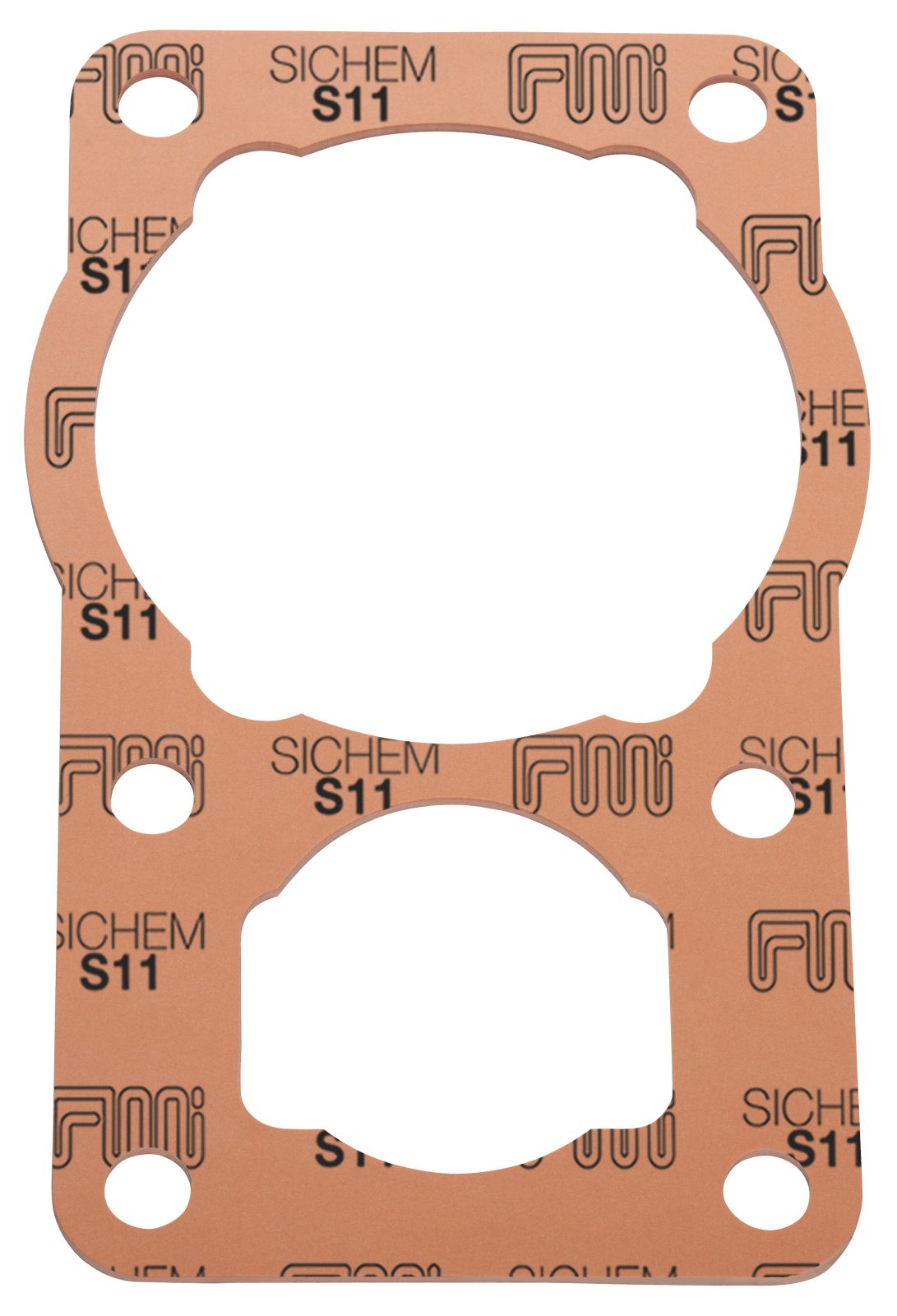

GASKET PTFE BI-DIRECTIONAL, SICHEM S11 1.5X1500X1500MM

IMPA 811390 ST

PTFE-based bi-directional gasket material with silica filler, 1.5×1500×1500 mm. Density 2.2 g/cm³, tensile strength 15 N/mm², suitable for flange connections from −260 °C to +260 °C and pressures to 80 bar. pH range 0–14 (excluding hydrogen fluoride, fluorine compounds, molten alkali metals). FDA-approved for oxygen service to 40 bar/+225 °C; cryogenic-rated per EN 13555.

GASKET PTFE BI-DIRECTIONAL, SICHEM S11 1.5X1750X1750MM

IMPA 811391 ST

PTFE-based bi-directional gasket material with silica filler, 1.5×1750×1750 mm. Density 2.2 g/cm³, tensile strength 15 N/mm², suitable for flange connections from −260 °C to +260 °C and pressures to 80 bar. pH range 0–14 (excluding hydrogen fluoride, fluorine compounds, molten alkali metals). FDA-approved for oxygen service to 40 bar/+225 °C; cryogenic-rated per EN 13555.

GASKET PTFE BI-DIRECTIONAL, SICHEM S11 2.0X1500X1500MM

IMPA 811392 ST

PTFE-based bi-directional gasket material with silica filler, 2.0×1500×1500 mm. Density 2.2 g/cm³, tensile strength 15 N/mm², suitable for flange connections from −260 °C to +260 °C and pressures to 80 bar. pH range 0–14 (excluding hydrogen fluoride, fluorine compounds, molten alkali metals). FDA-approved for oxygen service to 40 bar/+225 °C; cryogenic-rated per EN 13555.

GASKET PTFE BI-DIRECTIONAL, SICHEM S11 2.0X1750X1750MM

IMPA 811393 ST

PTFE-based bi-directional gasket material with silica filler, 2.0×1750×1750 mm. Density 2.2 g/cm³, tensile strength 15 N/mm², suitable for flange connections from −260 °C to +260 °C and pressures to 80 bar. pH range 0–14 (excluding hydrogen fluoride, fluorine compounds, molten alkali metals). FDA-approved for oxygen service to 40 bar/+225 °C; cryogenic-rated per EN 13555.

GASKET PTFE BI-DIRECTIONAL, SICHEM S11 3.0X1500X1500MM

IMPA 811394 ST

PTFE-based bi-directional gasket material with silica filler, 3.0×1500×1500 mm. Density 2.2 g/cm³, tensile strength 15 N/mm², suitable for flange connections from −260 °C to +260 °C and pressures to 80 bar. pH range 0–14 (excluding hydrogen fluoride, fluorine compounds, molten alkali metals). FDA-approved for oxygen service to 40 bar/+225 °C; cryogenic-rated per EN 13555.

GASKET PTFE BI-DIRECTIONAL, SICHEM S11 3.0X1750X1750MM

IMPA 811395 ST

PTFE-based bi-directional gasket material with silica filler, 3.0×1750×1750 mm. Density 2.2 g/cm³, tensile strength 15 N/mm², suitable for flange connections from −260 °C to +260 °C and pressures to 80 bar. pH range 0–14 (excluding hydrogen fluoride, fluorine compounds, molten alkali metals). FDA-approved for oxygen service to 40 bar/+225 °C; cryogenic-rated per EN 13555.

PACKING MANHOLE NON-ASBESTOS, L400XS300XW25.4XT6.4MM

IMPA 811596 PCE

Non-asbestos manhole packing, glass cloth with rubber facing, L400 × S300 × W25.4 × T6.4 mm.

PACKING MANHOLE NON-ASBESTOS, L400XS300XW22.3XT9.6MM

IMPA 811597 PCE

Non-asbestos manhole packing, glass cloth with rubber facing, L400 × S300 × W22.3 × T9.6 mm.

PACKING MANHOLE NON-ASBESTOS, L380XS260XW25.4XT6.4MM

IMPA 811598 PCE

Non-asbestos manhole packing, glass cloth with rubber facing, L380 × S260 × W25.4 × T6.4 mm.

PACKING MANHOLE NON-ASBESTOS, L380XS260XW22.3XT9.6MM

IMPA 811599 PCE

Non-asbestos manhole packing, glass cloth with rubber facing, L380 × S260 × W22.3 × T9.6 mm.

FACING CLUTCH WITH FURTHER, DETAIL

IMPA 811781 PCE

Facing clutch assembly with wire-reinforced resin-moulded construction and heat/wear-resistant synthetic resin impregnation. Custom shapes and sizes available; supply sample or specify full dimensional details when ordering.

GASKET SPIRAL WOUND NONASBESTO, VALQUA 6590 "R" W/MORE DETAILS

IMPA 811803 PCE

Spiral-wound non-asbestos gasket, VALQUA 6590 R, with expanded graphite filler. Temperature range −270 to 450 °C, pressure to 30.0 MPa. Suited to steam, liquefied gas, cryogenic fluids and general services.

GASKET SPIRAL WOUND NONASBESTO, VALQUA 6591 "OR" W/MORE DETAILS

IMPA 811804 PCE

Spiral-wound non-asbestos gasket, VALQUA 6591 OR, with expanded graphite filler. Temperature range −270 to 450 °C, pressure to 30.0 MPa. Suited to steam, liquefied gas, cryogenic fluids and general services.

GASKET SPIRAL WOUND NONASBESTO, VALQUA 6592 IR W/MORE DETAILS

IMPA 811805 PCE

Spiral-wound non-asbestos gasket, VALQUA 6592 IR, with expanded graphite filler. Temperature range −270 to 450 °C, pressure to 30.0 MPa. Suited to steam, liquefied gas, cryogenic fluids and general services.

GASKET SPIRAL WOUND NONASBESTO, VALQUA 6596 IOR W/MORE DETAILS

IMPA 811806 PCE

Spiral wound gasket with expanded graphite filler, VALQUA® No. 6590 Series. Operating range -270 to 450°C, maximum pressure 30.0 MPa. Suitable for water, oil, steam, liquefied gas and cryogenic applications.

GASKET SPIRAL WOUND NONASBESTO, VALQUA 7590 "R" W/MORE DETAILS

IMPA 811807 PCE

Spiral wound gasket (VALQUA 7590 R) with PTFE filler, rated -260 to 300 °C and max 20.0 MPa. Suitable for water, steam, oil, solvents, corrosive liquids and gases including oxygen.

GASKET SPIRAL WOUND NONASBESTO, VALQUA 7592 IR W/MORE DETAILS

IMPA 811808 PCE

Spiral wound gasket (VALQUA 7592 IR) with PTFE filler, rated -260 to 300 °C and max 20.0 MPa. Suitable for water, steam, oil, solvents, corrosive liquids and gases including oxygen.

GASKET SPIRAL WOUND NONASBESTO, VALQUA 7596 IOR W/MORE DETAILS

IMPA 811809 PCE

Spiral wound gasket (VALQUA 7596 IOR) with PTFE filler, rated -260 to 300 °C and max 20.0 MPa. Suitable for water, steam, oil, solvents, corrosive liquids and gases including oxygen.

GASKET FLANGE COPPER WRAPPED, N/A FULL FACE 5KG/CM2 2MM 40A

IMPA 811811 PCE

Copper-wrapped full-face flange gasket, 2 mm thick, 5 kgf/cm² rating, 40 A.

GASKET FLANGE COPPER WRAPPED, N/A FULL FACE 5KG/CM2 2MM 50A

IMPA 811812 PCE

Copper-wrapped full-face flange gasket, 2 mm thick, 5 kgf/cm² rating, 50 A.

GASKET FLANGE COPPER WRAPPED, N/A FULL FACE 5KG/CM2 2MM 65A

IMPA 811813 PCE

Copper-wrapped full-face flange gasket, 2 mm thick, 5 kgf/cm² rating, 65 A.

GASKET FLANGE COPPER WRAPPED, N/A FULL FACE 5KG/CM2 2MM 80A

IMPA 811814 PCE

Copper-wrapped full-face flange gasket, 2 mm thick, 5 kgf/cm² rating, 80 A.

GASKET FLANGE COPPER WRAPPED, N/A FULL FACE 5KG/CM2 2MM 90A

IMPA 811815 PCE

Copper-wrapped full-face flange gasket, 2 mm thick, 5 kgf/cm² rating, 90 A.

GASKET FLANGE COPPER WRAPPED, N/A FULL FACE 5KG/CM2 2MM 100A

IMPA 811816 PCE

Copper-wrapped full-face flange gasket, 2 mm thick, 5 kgf/cm² rating, 100 A.

GASKET FLANGE COPPER WRAPPED, N/A FULL FACE 5KG/CM2 2MM 125A

IMPA 811817 PCE

Copper-wrapped full-face flange gasket, 2 mm thick, 5 kgf/cm² rating, 125 A.

GASKET FLANGE COPPER WRAPPED, N/A FULL FACE 5KG/CM2 2MM 150A

IMPA 811818 PCE

Copper-wrapped full-face flange gasket, 2 mm thick, 5 kgf/cm² rating, 150 A.

GASKET FLANGE COPPER WRAPPED, N/A FULL FACE 5KG/CM2 2MM 175A

IMPA 811819 PCE

Copper-wrapped full-face flange gasket, 2 mm thick, 5 kgf/cm² rating, 175 A.

GASKET FLANGE COPPER WRAPPED, N/A FULL FACE 5KG/CM2 2MM 200A

IMPA 811820 PCE

Copper-wrapped full-face flange gasket, 2 mm thick, 5 kgf/cm² rating, 200 A.

GASKET FLANGE COPPER WRAPPED, N/A FULLFACE 10KG/CM2 2MM 40A

IMPA 811821 PCE

Copper-wrapped full-face flange gasket, rated 10 kgf/cm², 2.0 mm thickness, 40A.

GASKET FLANGE COPPER WRAPPED, N/A FULLFACE 10KG/CM2 2MM 50A

IMPA 811822 PCE

Copper-wrapped full-face flange gasket, rated 10 kgf/cm², 2.0 mm thickness, 50A.

GASKET FLANGE COPPER WRAPPED, N/A FULLFACE 10KG/CM2 2MM 65A

IMPA 811823 PCE

Copper-wrapped full-face flange gasket, rated 10 kgf/cm², 2.0 mm thickness, 65A.

GASKET FLANGE COPPER WRAPPED, N/A FULLFACE 10KG/CM2 2MM 80A

IMPA 811824 PCE

Copper-wrapped full-face flange gasket, rated 10 kgf/cm², 2.0 mm thickness, 80A.

GASKET FLANGE COPPER WRAPPED, N/A FULLFACE 10KG/CM2 2MM 90A

IMPA 811825 PCE

Copper-wrapped full-face flange gasket, rated 10 kgf/cm², 2.0 mm thickness, 90A.

GASKET FLANGE COPPER WRAPPED, N/A FULLFACE 10KG/CM2 2MM 100A

IMPA 811826 PCE

Copper-wrapped full-face flange gasket, rated 10 kgf/cm², 2.0 mm thickness, 100A.

GASKET FLANGE COPPER WRAPPED, N/A FULLFACE 10KG/CM2 2MM 125A

IMPA 811827 PCE

Copper-wrapped full-face flange gasket, rated 10 kgf/cm², 2.0 mm thickness, 125A.

GASKET FLANGE COPPER WRAPPED, N/A FULLFACE 10KG/CM2 2MM 150A

IMPA 811828 PCE

Copper-wrapped full-face flange gasket, rated 10 kgf/cm², 2.0 mm thickness, 150A.
