IMPA 81 81. Packing & Jointing

Gaskets / Joint Sheets

Browse the product families and items within the "Gaskets / Joint Sheets" sub-group of the IMPA marine catalogue, and order them from verified suppliers via Geomarine.

Families

822

Items

Product families

Bi-directional PTFE Sheet Gasket 6 Butterworth Hole Gaskets 1 Clutch Facings 1 Compressed Non-Asbestos Fiber Sheet 18 Expanded Graphite Joint Sheet Gaskets 12 Felt Packing Sheets 18 Flange Gaskets 207 High Performance Non-Asbestos Sheet - Valqua No.GF-300 3 Joint Sheets All Purpose Non-asbestos 1 Joint Sheets Canvas Insertion Rubber 6 Joint Sheets Cortex 4 Joint Sheets Cotton Insertion Rubber 3 Joint Sheets Fiber 7 Joint Sheets Gasket Non-asbestos Graphite 6 Joint Sheets Gaskets (Common Used) 12 Joint Sheets Metal Foil Inserted Graphite #6633 6 Joint Sheets Natural Rubber 12 Joint Sheets Synthetic Rubber 12 Joint Sheets Vegetable Fiber Oil-proof 8 Joint Sheets gasket Non-asbestos Chemical 1 Joint Sheets gasket Non-asbestos Compressed Air 1 Joint Sheets gasket Non-asbestos Exhaust Gas 1 Joint Sheets gasket Non-asbestos Feed/Boiler Water 1 Joint Sheets gasket Non-asbestos Fresh/Condensate Water 1 Joint Sheets gasket Non-asbestos Fuel/Cargo Oil 1 Joint Sheets gasket Non-asbestos Steam 1 Jointing Sheets Aramid Fiber Hybrid Rubber Pillar #5003 4 Jointing Sheets Beldam Universal Non-asbestos #172 6 Jointing Sheets Expanded Graphite Novaphit SSTC 4 Jointing Sheets General Service Non-asbestos #178 6 Leather Sheets 8 Low Creep PTFE Sheet Gasket Mixed with Selectable Fillers 9 Manhole Packing Non-asbestos 4 Non-asbestos Mica Jointing Sheets Pilotseal Jointing (201) 6 Semi-Metallic Gaskets 1 Spiral Wound Gasket Blacktight Valqua No.6590 Series 4 Spiral Wound Gasket Cleantight Valqua No.8590 Series 4 Spiral Wound Gasket Whitetight Valqua No.7590 Series 3 Spiral Wound Gasket with Lines Lined Cleantight Valqua No.8590L Series 4 Spiral Wound Gaskets 384 Valflon (PTFE) Gasket 12 Valflon Envelope Gasket 3 Valquafoil (Expanded Graphite) Gasket 3 Viton Rubber Sheets 7

Items in this sub-group

822 items

JOINT SHEET FELT, 2X1800X1000MM

IMPA 811191 ST

Pressed white sheep hair sheet, 2×1800×1000 mm. Absorbs oil effectively for joint sealing and plugging applications.

JOINT SHEET FELT, 3X1800X1000MM

IMPA 811192 ST

Pressed white sheep hair sheet, 3×1800×1000 mm. Absorbs oil effectively for joint sealing and plugging applications.

JOINT SHEET FELT, 4X1800X1000MM

IMPA 811193 ST

Pressed white sheep hair sheet, 4×1800×1000 mm. Absorbs oil effectively for joint sealing and plugging applications.

JOINT SHEET FELT, 5X1800X1000MM

IMPA 811194 ST

Pressed white sheep hair sheet, 5×1800×1000 mm. Absorbs oil effectively for joint sealing and plugging applications.

JOINT SHEET FELT, 6X1800X1000MM

IMPA 811195 ST

Pressed white sheep hair sheet, 6×1800×1000 mm. Absorbs oil effectively for joint sealing and plugging applications.

JOINT SHEET FELT, 8X1800X1000MM

IMPA 811196 ST

Pressed white sheep hair sheet, 8×1800×1000 mm. Absorbs oil effectively for joint sealing and plugging applications.

JOINT SHEET FELT, 10X1800X1000MM

IMPA 811197 ST

Pressed white sheep hair sheet, 10×1800×1000 mm. Absorbs oil effectively for joint sealing and plugging applications.

JOINT SHEET FELT, 12X1800X1000MM

IMPA 811198 ST

Pressed white sheep hair sheet, 12×1800×1000 mm. Absorbs oil effectively for joint sealing and plugging applications.

JOINT SHEET FELT, 20X1800X1000MM

IMPA 811199 ST

Pressed white sheep hair sheet, 20×1800×1000 mm. Absorbs oil effectively for joint sealing and plugging applications.

JOINT SHEET MICA NON-ASBESTOS, PILOTSEAL 2010.5X1250X1250MM

IMPA 811263 ST

Non-asbestos mica jointing sheet, Pilotseal, 0.5 mm thick, 1250×1250 mm; rated to 900 °C, 20 bar maximum; tensile strength 20 MPa, density 1.72 g/cm³; for hot dry-gas seals, exhaust manifolds, and thermal insulation.

JOINT SHEET MICA NON-ASBESTOS, PILOTSEAL 2011.0X1250X1250MM

IMPA 811264 ST

Non-asbestos mica jointing sheet, Pilotseal, 1.0 mm thick, 1250×1250 mm; rated to 900 °C, 20 bar maximum; tensile strength 20 MPa, density 1.72 g/cm³; for hot dry-gas seals, exhaust manifolds, and thermal insulation.

JOINT SHEET MICA NON-ASBESTOS, PILOTSEAL 2011.3X1250X1250MM

IMPA 811265 ST

Non-asbestos mica jointing sheet, Pilotseal, 1.3 mm thick, 1250×1250 mm; rated to 900 °C, 20 bar maximum; tensile strength 20 MPa, density 1.72 g/cm³; for hot dry-gas seals, exhaust manifolds, and thermal insulation.

JOINT SHEET MICA NON-ASBESTOS, PILOTSEAL 2011.5X1250X1250MM

IMPA 811266 ST

Non-asbestos mica jointing sheet, Pilotseal, 1.5 mm thick, 1250×1250 mm; rated to 900 °C, 20 bar maximum; tensile strength 20 MPa, density 1.72 g/cm³; for hot dry-gas seals, exhaust manifolds, and thermal insulation.

JOINT SHEET MICA NON-ASBESTOS, PILOTSEAL 2012.0X1250X1250MM

IMPA 811267 ST

Non-asbestos mica jointing sheet, Pilotseal, 2.0 mm thick, 1250×1250 mm; rated to 900 °C, 20 bar maximum; tensile strength 20 MPa, density 1.72 g/cm³; for hot dry-gas seals, exhaust manifolds, and thermal insulation.

JOINT SHEET MICA NON-ASBESTOS, PILOTSEAL 2013.0X1250X1250MM

IMPA 811268 ST

Non-asbestos mica jointing sheet, Pilotseal, 3.0 mm thick, 1250×1250 mm; rated to 900 °C, 20 bar maximum; tensile strength 20 MPa, density 1.72 g/cm³; for hot dry-gas seals, exhaust manifolds, and thermal insulation.

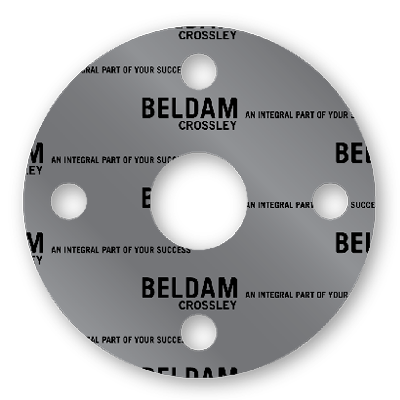

SHEET PACKING NON-ASBESTOS, PILOTSEAL #172 0.5X1500X1500MM

IMPA 811280 ST

Pilotseal #172 non-asbestos compressed jointing sheet, 0.5×1500×1500 mm. Maximum temperature 475°C, pressure 13.8 N/mm² (2000 psi), tensile strength 10.3 N/mm² (1500 psi), density 1.4 g/cm³. Seals steam, water, oils, gases, dilute acids and alkalis.

SHEET PACKING NON-ASBESTOS, PILOTSEAL #172 0.75X1500X1500MM

IMPA 811281 ST

Pilotseal #172 non-asbestos compressed jointing sheet, 0.75×1500×1500 mm. Maximum temperature 475°C, pressure 13.8 N/mm² (2000 psi), tensile strength 10.3 N/mm² (1500 psi), density 1.4 g/cm³. Seals steam, water, oils, gases, dilute acids and alkalis.

SHEET PACKING NON-ASBESTOS, PILOTSEAL #172 1.0X1500X1500MM

IMPA 811282 ST

Pilotseal #172 non-asbestos compressed jointing sheet, 1.0×1500×1500 mm. Maximum temperature 475°C, pressure 13.8 N/mm² (2000 psi), tensile strength 10.3 N/mm² (1500 psi), density 1.4 g/cm³. Seals steam, water, oils, gases, dilute acids and alkalis.

SHEET PACKING NON-ASBESTOS, PILOTSEAL #172 1.5X1500X1500MM

IMPA 811283 ST

Pilotseal #172 non-asbestos compressed jointing sheet, 1.5×1500×1500 mm. Maximum temperature 475°C, pressure 13.8 N/mm² (2000 psi), tensile strength 10.3 N/mm² (1500 psi), density 1.4 g/cm³. Seals steam, water, oils, gases, dilute acids and alkalis.

SHEET PACKING NON-ASBESTOS, PILOTSEAL #172 2.0X1500X1500MM

IMPA 811284 ST

Pilotseal #172 non-asbestos compressed jointing sheet, 2.0×1500×1500 mm. Maximum temperature 475°C, pressure 13.8 N/mm² (2000 psi), tensile strength 10.3 N/mm² (1500 psi), density 1.4 g/cm³. Seals steam, water, oils, gases, dilute acids and alkalis.

SHEET PACKING NON-ASBESTOS, PILOTSEAL #172 3.0X1500X1500MM

IMPA 811285 ST

Pilotseal #172 non-asbestos compressed jointing sheet, 3.0×1500×1500 mm. Maximum temperature 475°C, pressure 13.8 N/mm² (2000 psi), tensile strength 10.3 N/mm² (1500 psi), density 1.4 g/cm³. Seals steam, water, oils, gases, dilute acids and alkalis.

JOINT SHEET EXPANDED GRAPHITE, NOVAPHIT SSTC 1.0X1000X1000MM

IMPA 811286 ST

Expanded graphite gasket sheet (NOVAPHIT SSTC), 1.0 mm thick, 1000×1000 mm, with stainless steel mesh reinforcement, operating range −240 to 550 °C, rated for high-pressure steam, hydrocarbons, solvents, flammable liquids, fuels, gases and chemical media.

JOINT SHEET EXPANDED GRAPHITE, NOVAPHIT SSTC 1.5X1000X1000MM

IMPA 811287 ST

Expanded graphite gasket sheet (NOVAPHIT SSTC), 1.5 mm thick, 1000×1000 mm, with stainless steel mesh reinforcement, operating range −240 to 550 °C, rated for high-pressure steam, hydrocarbons, solvents, flammable liquids, fuels, gases and chemical media.

JOINT SHEET EXPANDED GRAPHITE, NOVAPHIT SSTC 2.0X1000X1000MM

IMPA 811288 ST

Expanded graphite gasket sheet (NOVAPHIT SSTC), 2.0 mm thick, 1000×1000 mm, with stainless steel mesh reinforcement, operating range −240 to 550 °C, rated for high-pressure steam, hydrocarbons, solvents, flammable liquids, fuels, gases and chemical media.

JOINT SHEET EXPANDED GRAPHITE, NOVAPHIT SSTC 3.0X1000X1000MM

IMPA 811289 ST

Expanded graphite gasket sheet (NOVAPHIT SSTC), 3.0 mm thick, 1000×1000 mm, with stainless steel mesh reinforcement, operating range −240 to 550 °C, rated for high-pressure steam, hydrocarbons, solvents, flammable liquids, fuels, gases and chemical media.

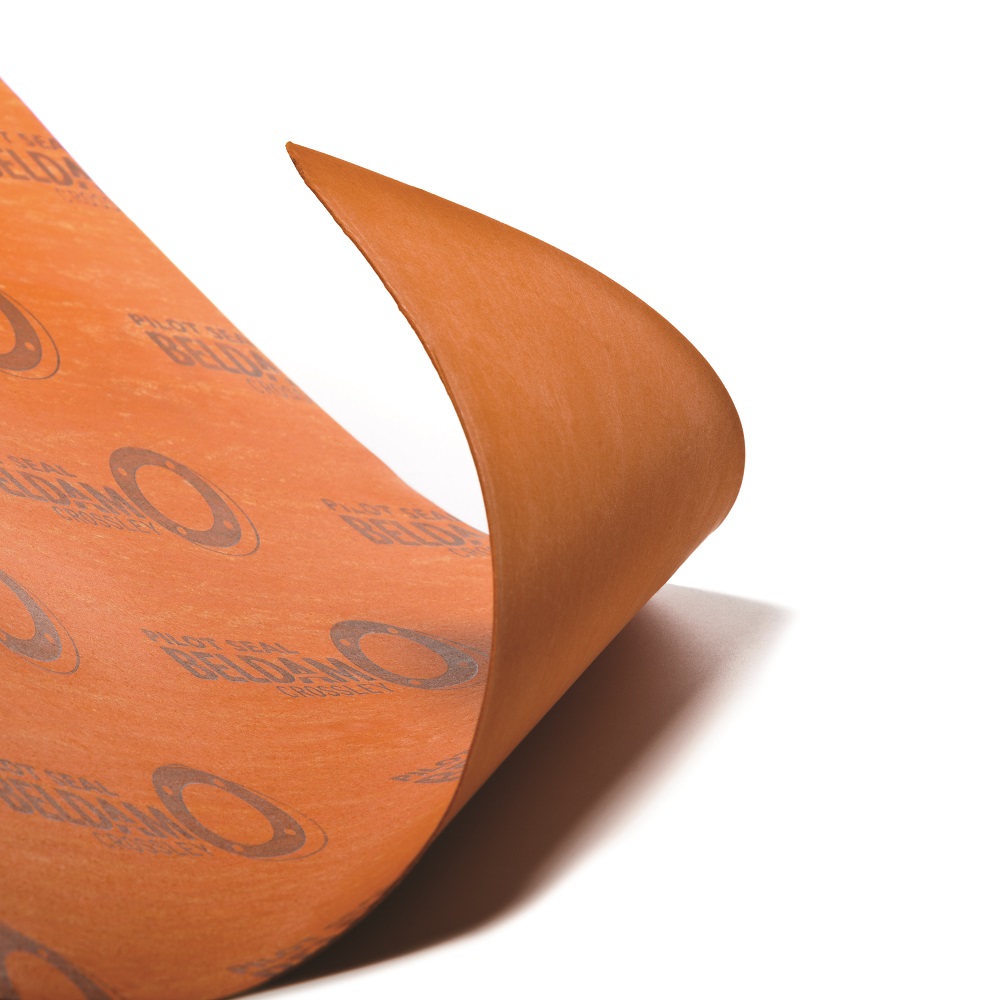

SHEET PACKING NON-ASBESTOS, PILOTSEAL #178 0.5X1500X1500MM

IMPA 811291 ST

Non-asbestos sheet packing, 0.5×1500×1500 mm, manufactured from heat-resistant synthetic fibre and polymer. Temperature rating to 400 °C, maximum pressure 6.9 N/mm², tensile strength 10.3 N/mm², density 1.95 g/cm³. Printed 25 mm grid squares for cutting. Suitable for steam, water, oils, gases, dilute acids and alkalis.

SHEET PACKING NON-ASBESTOS, PILOTSEAL #178 0.75X1500X1500MM

IMPA 811292 ST

Non-asbestos sheet packing, 0.75×1500×1500 mm, manufactured from heat-resistant synthetic fibre and polymer. Temperature rating to 400 °C, maximum pressure 6.9 N/mm², tensile strength 10.3 N/mm², density 1.95 g/cm³. Printed 25 mm grid squares for cutting. Suitable for steam, water, oils, gases, dilute acids and alkalis.

SHEET PACKING NON-ASBESTOS, PILOTSEAL #178 1.0X1500X1500MM

IMPA 811293 ST

Non-asbestos sheet packing, 1.0×1500×1500 mm, manufactured from heat-resistant synthetic fibre and polymer. Temperature rating to 400 °C, maximum pressure 6.9 N/mm², tensile strength 10.3 N/mm², density 1.95 g/cm³. Printed 25 mm grid squares for cutting. Suitable for steam, water, oils, gases, dilute acids and alkalis.

SHEET PACKING NON-ASBESTOS, PILOTSEAL #178 1.5X1500X1500MM

IMPA 811294 ST

Non-asbestos sheet packing, 1.5×1500×1500 mm, manufactured from heat-resistant synthetic fibre and polymer. Temperature rating to 400 °C, maximum pressure 6.9 N/mm², tensile strength 10.3 N/mm², density 1.95 g/cm³. Printed 25 mm grid squares for cutting. Suitable for steam, water, oils, gases, dilute acids and alkalis.

SHEET PACKING NON-ASBESTOS, PILOTSEAL #178 2.0X1500X1500MM

IMPA 811295 ST

Non-asbestos sheet packing, 2.0×1500×1500 mm, manufactured from heat-resistant synthetic fibre and polymer. Temperature rating to 400 °C, maximum pressure 6.9 N/mm², tensile strength 10.3 N/mm², density 1.95 g/cm³. Printed 25 mm grid squares for cutting. Suitable for steam, water, oils, gases, dilute acids and alkalis.

SHEET PACKING NON-ASBESTOS, PILOTSEAL #178 3.0X1500X1500MM

IMPA 811296 ST

Non-asbestos sheet packing, 3.0×1500×1500 mm, manufactured from heat-resistant synthetic fibre and polymer. Temperature rating to 400 °C, maximum pressure 6.9 N/mm², tensile strength 10.3 N/mm², density 1.95 g/cm³. Printed 25 mm grid squares for cutting. Suitable for steam, water, oils, gases, dilute acids and alkalis.

RUBBER SHEET HYBRID ARAMID, FIBER 5003-NBR 1.5X1270X1270MM

IMPA 811355 ST

NBR rubber gasket sheet (5003-NBR) reinforced with short aramid fibres, 1.5×1270×1270 mm. Suitable for flange gaskets on water and seawater pipes, and insulation applications. Operating range −30 to 120 °C, pressure to 2.6 MPaG.

RUBBER SHEET HYBRID ARAMID, FIBER 5003-NBR 2.0X1270X1270MM

IMPA 811356 ST

NBR rubber gasket sheet (5003-NBR) reinforced with short aramid fibres, 2.0×1270×1270 mm. Suitable for flange gaskets on water and seawater pipes, and insulation applications. Operating range −30 to 120 °C, pressure to 2.6 MPaG.

RUBBER SHEET HYBRID ARAMID, FIBER 5003-NBR 3.0X1270X1270MM

IMPA 811357 ST

NBR rubber gasket sheet (5003-NBR) reinforced with short aramid fibres, 3.0×1270×1270 mm. Suitable for flange gaskets on water and seawater pipes, and insulation applications. Operating range −30 to 120 °C, pressure to 2.6 MPaG.

RUBBER SHEET HYBRID ARAMID, FIBER 5003-NBR 6.0X1270X1270MM

IMPA 811358 ST

NBR rubber gasket sheet (5003-NBR) reinforced with short aramid fibres, 6.0×1270×1270 mm. Suitable for flange gaskets on water and seawater pipes, and insulation applications. Operating range −30 to 120 °C, pressure to 2.6 MPaG.

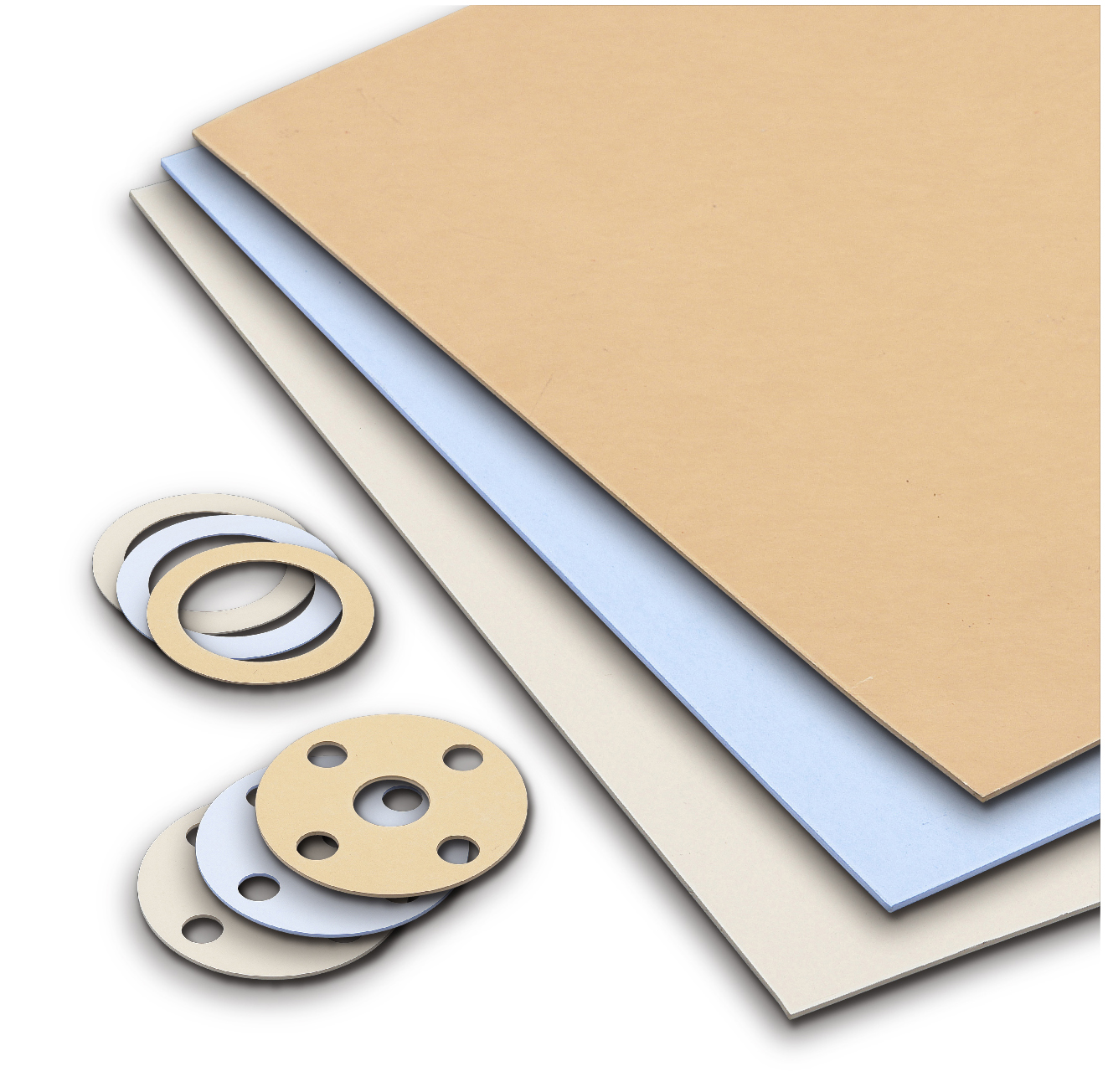

GASKET SHEET PTFE LOW CREEP, PILLAR NO.4001 1.5X1500X1500MM

IMPA 811381 ST

PTFE low-creep gasket sheet with fillers, Pillar No.4001, 1.5×1500×1500 mm. Resists acid, hydrocarbon, water and steam with anti-creep properties.

GASKET SHEET PTFE LOW CREEP, PILLAR NO.4001 2.0X1500X1500MM

IMPA 811382 ST

PTFE low-creep gasket sheet with fillers, Pillar No.4001, 2.0×1500×1500 mm. Resists acid, hydrocarbon, water and steam with anti-creep properties.

GASKET SHEET PTFE LOW CREEP, PILLAR NO.4001 3.0X1500X1500MM

IMPA 811383 ST

PTFE low-creep gasket sheet with fillers, Pillar No.4001, 3.0×1500×1500 mm. Resists acid, hydrocarbon, water and steam with anti-creep properties.

GASKET SHEET PTFE LOW CREEP, PILLAR NO.4002 1.5X1500X1500MM

IMPA 811384 ST

PTFE low-creep gasket sheet with fillers, Pillar No.4002, 1.5×1500×1500 mm. Suited to low-torque flange applications with excellent compression fit.

GASKET SHEET PTFE LOW CREEP, PILLAR NO.4002 2.0X1500X1500MM

IMPA 811385 ST

PTFE low-creep gasket sheet with fillers, Pillar No.4002, 2.0×1500×1500 mm. Suited to low-torque flange applications with excellent compression fit.
