IMPA 79 79. Electrical Equipment

Cables

Browse the product families and items within the "Cables" sub-group of the IMPA marine catalogue, and order them from verified suppliers via Geomarine.

Families

224

Items

Product families

Antenna Copper Wire 3 Armoured Cables 59 Cables Silicon Rubber/Glass Cloth Sheathed 4 Cabtyre Cables PVC 32 Cabtyre Cables Rubber 28 Coaxial Cables Radio Frequency 10 Enamelled Copper Wire 18 Extension Cord Reels 6 Heavy Electric Cables 1 Lamp Cables Cotton Covered 3 Microphone Cables 16 Parallel Cables PVC 4 Self Limiting Parallel Circuit Heaters 30 Single Cables Flexible 4 Welding Cables 6

Items in this sub-group

224 items

CABLE HALOGEN-FREE ARMOURED, LKSM-HF 0.6/1KV 1.5MM2X4C 16A

IMPA 794345 MTR

Armoured halogen-free cable LKSM-HF 0.6/1 kV, 1.5 mm² × 4 cores, 16 A rating. XLPE insulation with SHF1 thermoplastic sheathing; flame-retardant per IEC 60332-3. Fixed installation on ships; sunlight protection recommended for deck use.

CABLE HALOGEN-FREE ARMOURED, LKSM-HF 0.6/1KV 2.5MM2X4C 21A

IMPA 794346 MTR

Armoured halogen-free cable LKSM-HF 0.6/1 kV, 2.5 mm² × 4 cores, 21 A rating. XLPE insulation with SHF1 thermoplastic sheathing; flame-retardant per IEC 60332-3. Fixed installation on ships; sunlight protection recommended for deck use.

CABLE HALOGEN-FREE ARMOURED, LKSM-HF 0.6/1KV 4MM2X4C 28AMP

IMPA 794347 MTR

Armoured halogen-free cable LKSM-HF 0.6/1 kV, 4 mm² × 4 cores, 28 A rating. XLPE insulation with SHF1 thermoplastic sheathing; flame-retardant per IEC 60332-3. Fixed installation on ships; sunlight protection recommended for deck use.

CABLE HALOGEN-FREE ARMOURED, LKSM-HF 0.6/1KV 6MM2X4C 36AMP

IMPA 794348 MTR

Armoured halogen-free cable LKSM-HF 0.6/1 kV, 6 mm² × 4 cores, 36 A rating. XLPE insulation with SHF1 thermoplastic sheathing; flame-retardant per IEC 60332-3. Fixed installation on ships; sunlight protection recommended for deck use.

CABLE HALOGEN-FREE ARMOURED, LKSM-HF 0.6/1KV 10MM2X4C 50AMP

IMPA 794349 MTR

Armoured halogen-free cable LKSM-HF 0.6/1 kV, 10 mm² × 4 cores, 50 A rating. XLPE insulation with SHF1 thermoplastic sheathing; flame-retardant per IEC 60332-3. Fixed installation on ships; sunlight protection recommended for deck use.

CABLE HALOGEN-FREE ARMOURED, LKSM-HF 0.6/1KV 16MM2X4C 67AMP

IMPA 794350 MTR

Armoured halogen-free cable LKSM-HF 0.6/1 kV, 16 mm² × 4 cores, 67 A rating. XLPE insulation with SHF1 thermoplastic sheathing; flame-retardant per IEC 60332-3. Fixed installation on ships; sunlight protection recommended for deck use.

WIRE ENAMELLED COPPER 0.29MM

IMPA 794351 KGM

Enamelled copper wire, 0.29 mm diameter. Used for electric motor rewinding and precision instrument circuits.

WIRE ENAMELLED COPPER 0.32MM

IMPA 794352 KGM

Enamelled copper wire, 0.32 mm diameter. Used for electric motor rewinding and precision instrument circuits.

WIRE ENAMELLED COPPER 0.35MM

IMPA 794353 KGM

Enamelled copper wire, 0.35 mm diameter, supplied in kilograms. Suitable for motor rewinding and precision electrical circuits.

WIRE ENAMELLED COPPER 0.4MM

IMPA 794354 KGM

Enamelled copper wire, 0.4 mm diameter, supplied in kilograms. Suitable for motor rewinding and precision electrical circuits.

WIRE ENAMELLED COPPER 0.45MM

IMPA 794355 KGM

Enamelled copper wire, 0.45 mm diameter, supplied in kilograms. Suitable for motor rewinding and precision electrical circuits.

WIRE ENAMELLED COPPER 0.5MM

IMPA 794356 KGM

Enamelled copper wire, 0.5 mm diameter, supplied in kilograms. Suitable for motor rewinding and precision electrical circuits.

WIRE ENAMELLED COPPER 0.55MM

IMPA 794357 KGM

Enamelled copper wire, 0.55 mm diameter, supplied in kilograms. Suitable for motor rewinding and precision electrical circuits.

WIRE ENAMELLED COPPER 0.6MM

IMPA 794358 KGM

Enamelled copper wire, 0.6 mm diameter, supplied in kilograms. Suitable for motor rewinding and precision electrical circuits.

WIRE ENAMELLED COPPER 0.65MM

IMPA 794359 KGM

Enamelled copper wire, 0.65 mm diameter, supplied in kilograms. Suitable for motor rewinding and precision electrical circuits.

WIRE ENAMELLED COPPER 0.7MM

IMPA 794360 KGM

Enamelled copper wire, 0.7 mm diameter, supplied in kilograms. Suitable for motor rewinding and precision electrical circuits.

WIRE ENAMELLED COPPER 0.8MM

IMPA 794361 KGM

Enamelled copper wire, 0.8 mm diameter, supplied in kilograms. Suitable for motor rewinding and precision electrical circuits.

WIRE ENAMELLED COPPER 0.9MM

IMPA 794362 KGM

Enamelled copper wire, 0.9 mm diameter, supplied in kilograms. Suitable for motor rewinding and precision electrical circuits.

WIRE ENAMELLED COPPER 1.0MM

IMPA 794363 KGM

Enamelled copper wire, 1.0 mm diameter, supplied in kilograms. Suitable for motor rewinding and precision electrical circuits.

WIRE ENAMELLED COPPER 1.2MM

IMPA 794364 KGM

Enamelled copper wire, 1.2 mm diameter, supplied in kilograms. Suitable for motor rewinding and precision electrical circuits.

WIRE ENAMELLED COPPER 1.4MM

IMPA 794365 KGM

Enamelled copper wire, 1.4 mm diameter, supplied in kilograms. Suitable for motor rewinding and precision electrical circuits.

WIRE ENAMELLED COPPER 1.6MM

IMPA 794366 KGM

Enamelled copper wire, 1.6 mm diameter, supplied in kilograms. Suitable for motor rewinding and precision electrical circuits.

WIRE ENAMELLED COPPER 1.8MM

IMPA 794367 KGM

Enamelled copper wire, 1.8 mm diameter, supplied in kilograms. Suitable for motor rewinding and precision electrical circuits.

WIRE ENAMELLED COPPER 2.0MM

IMPA 794368 KGM

Enamelled copper wire, 2.0 mm diameter, supplied in kilograms. Suitable for motor rewinding and precision electrical circuits.

WIRE ANTENNA COPPER, 1.6MMX19STRAND

IMPA 794376 MTR

Copper antenna wire, 1.6 mm diameter, 19-strand construction. Marine antenna applications.

WIRE ANTENNA COPPER, 1.2MMX19STRAND

IMPA 794377 MTR

Copper antenna wire, 1.2 mm diameter, 19-strand construction. Marine antenna applications.

WIRE ANTENNA COPPER, 1.6MMX7STRAND

IMPA 794378 MTR

Copper antenna wire, 1.6 mm diameter, 7-strand construction. Marine antenna applications.

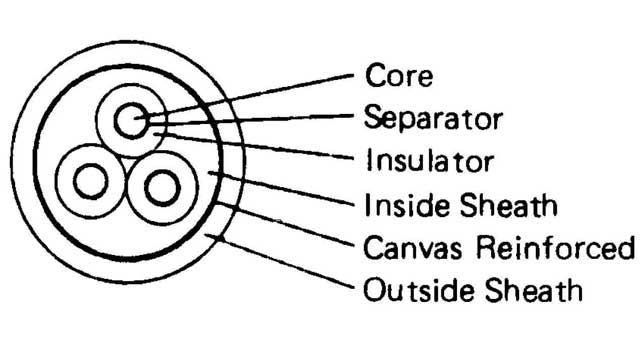

CABLE ELECTRIC HEAVY WITH, FURTHER DETAIL

IMPA 794380 MTR

Heavy-duty flexible power cable, 600V rated (test voltage 3,000V/m), EP rubber insulated with polychloroprene sheath, Class-3. Available in standard 3-core designs: general type, bendable type, or twist cable type. Specify type, core count and nominal sectional area when ordering.

CABLE HEATING SELF-LIMITING, AUTO-TRACE 3BTV1-CT 110V 3W/FT

IMPA 794381 MTR

Self-regulating parallel circuit heating cable, 110V 3W/ft. Modulates output based on sensed temperature. Cut-to-length; sold per metre.

CABLE HEATING SELF-LIMITING, AUTO-TRACE 5BTV1-CT 110V 5W/FT

IMPA 794382 MTR

Self-regulating parallel circuit heating cable, 110V 5W/ft. Modulates output based on sensed temperature. Cut-to-length; sold per metre.

CABLE HEATING SELF-LIMITING, AUTO-TRACE 3BTV1-CR 110V 3W/FT

IMPA 794385 MTR

Self-regulating parallel circuit heating cable, 110V 3W/ft. Modulates output based on sensed temperature. Cut-to-length; sold per metre.

CABLE HEATING SELF-LIMITING, AUTO-TRACE 3BTV2-CT 220V 9W/M

IMPA 794386 MTR

Self-regulating parallel circuit heating cable, 220V 9W/m. Modulates output based on sensed temperature. Cut-to-length; sold per metre.

CABLE HEATING SELF-LIMITING, AUTO-TRACE 5BTV2-CT 220V 16W/M

IMPA 794387 MTR

Self-regulating parallel circuit heating cable, 220V 16W/m. Modulates output based on sensed temperature. Cut-to-length; sold per metre.

CABLE HEATING SELF-LIMITING, AUTO-TRACE 5BTV1-CR 110V 5W/FT

IMPA 794390 MTR

Self-regulating parallel circuit heating cable, 110V 5W/ft. Modulates output based on sensed temperature. Cut-to-length; sold per metre.

CABLE REEL EXTENSION AC110V, 20MTR

IMPA 794391 SET

Portable cable reel, AC 110V supply, 20 mtr cord length with integral outlet sockets for remote work locations. Specify amperage, plug and receptacle type at order.

CABLE REEL EXTENSION AC110V, 30MTR

IMPA 794392 SET

Portable cable reel, AC 110V supply, 30 mtr cord length with integral outlet sockets for remote work locations. Specify amperage, plug and receptacle type at order.

CABLE REEL EXTENSION AC110V, 50MTR

IMPA 794393 SET

Portable cable reel with 50 mtrs cord, AC 110V supply. Features built-in outlets for powering tools and equipment at remote work sites. Specify voltage, amperage, plug and receptacle type when ordering.

CABLE REEL EXTENSION AC220V, 20MTR

IMPA 794395 SET

Portable cable reel with 20 mtrs cord, AC 220V supply. Built-in outlets for tool and equipment power connections in areas distant from main electrical sources. Confirm voltage, amperage, plug and receptacle type upon ordering.

CABLE REEL EXTENSION AC220V, 30MTR

IMPA 794396 SET

Portable cable reel with 30 mtrs cord, AC 220V supply. Integrated outlets enable power distribution for portable tools and equipment away from fixed power infrastructure. State voltage, amperage, plug and receptacle type when ordering.

CABLE REEL EXTENSION AC220V, 50MTR

IMPA 794397 SET

Portable cable reel with 50 mtrs cord, AC 220V supply. Equipped with built-in outlets for remote tool and equipment operation. Specify voltage, amperage, plug and receptacle type during ordering.
