Tube Clamps

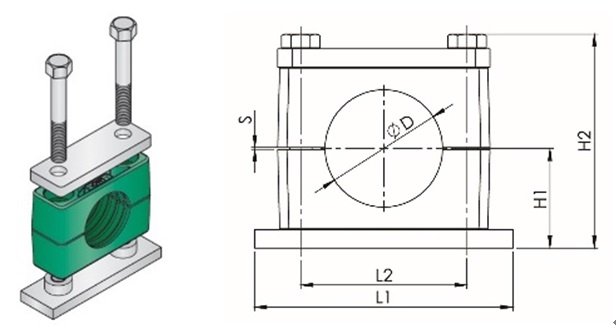

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 6MM

IMPA 613932 PCE

Polypropylene tube clamp with weld plate, 6mm bore, Heavy Series (DIN 3015/2). Comprises clamp body, weld plate, cover plate and bolts; rated for high-load and high-vibration duty in primary metal, construction and mining equipment.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 6.4MM

IMPA 613933 PCE

Heavy-duty polypropylene tube clamp with weld plate for 6.4 mm tubing. DIN 3015/2 rated; includes clamp body, weld plate, cover plate and bolts. Available with Metric or UNC thread hardware in steel or stainless steel.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 8MM

IMPA 613934 PCE

Heavy-duty polypropylene tube clamp with weld plate for 8 mm tubing. DIN 3015/2 rated; includes clamp body, weld plate, cover plate and bolts. Available with Metric or UNC thread hardware in steel or stainless steel.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 9.5MM

IMPA 613935 PCE

Heavy-duty polypropylene tube clamp with weld plate for 9.5 mm tubing. DIN 3015/2 rated; includes clamp body, weld plate, cover plate and bolts. Available with Metric or UNC thread hardware in steel or stainless steel.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 10MM

IMPA 613936 PCE

Heavy-duty polypropylene tube clamp with weld plate for 10 mm tubing. DIN 3015/2 rated; includes clamp body, weld plate, cover plate and bolts. Available with Metric or UNC thread hardware in steel or stainless steel.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 12MM

IMPA 613937 PCE

Heavy-duty polypropylene tube clamp with weld plate for 12 mm tubing. DIN 3015/2 rated; includes clamp body, weld plate, cover plate and bolts. Available with Metric or UNC thread hardware in steel or stainless steel.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 12.7MM

IMPA 613938 PCE

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 13.5MM

IMPA 613939 PCE

Heavy-duty polypropylene tube clamp with weld plate for 13.5 mm tubing. DIN 3015/2 rated; includes clamp body, weld plate, cover plate and bolts. Available with Metric or UNC thread hardware in steel or stainless steel.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 14MM

IMPA 613940 PCE

Heavy-duty polypropylene tube clamp with weld plate for 14 mm tubing. DIN 3015/2 rated; includes clamp body, weld plate, cover plate and bolts. Available with Metric or UNC thread hardware in steel or stainless steel.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 15MM

IMPA 613941 PCE

Heavy-duty polypropylene tube clamp with weld plate for 15 mm tubing. DIN 3015/2 rated; includes clamp body, weld plate, cover plate and bolts. Available with Metric or UNC thread hardware in steel or stainless steel.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 16MM

IMPA 613942 PCE

Heavy-duty polypropylene tube clamp with weld plate for 16 mm tubing. DIN 3015/2 rated; includes clamp body, weld plate, cover plate and bolts. Available with Metric or UNC thread hardware in steel or stainless steel.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 17.2MM

IMPA 613943 PCE

Heavy-duty polypropylene tube clamp with weld plate for 17.2 mm tubing. DIN 3015/2 rated; includes clamp body, weld plate, cover plate and bolts. Available with Metric or UNC thread hardware in steel or stainless steel.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 18MM

IMPA 613944 PCE

Heavy-duty polypropylene tube clamp with weld plate for 18 mm tubing. DIN 3015/2 rated; includes clamp body, weld plate, cover plate and bolts. Available with Metric or UNC thread hardware in steel or stainless steel.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 19MM

IMPA 613945 PCE

Heavy-duty polypropylene tube clamp with weld plate for 19 mm tubing. DIN 3015/2 rated; includes clamp body, weld plate, cover plate and bolts. Available with Metric or UNC thread hardware in steel or stainless steel.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 20MM

IMPA 613946 PCE

Heavy-duty polypropylene tube clamp with weld plate for 20 mm tubing. DIN 3015/2 rated; includes clamp body, weld plate, cover plate and bolts. Available with Metric or UNC thread hardware in steel or stainless steel.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 21.3MM

IMPA 613947 PCE

Heavy-duty polypropylene tube clamp with weld plate for 21.3 mm tubing. DIN 3015/2 rated; includes clamp body, weld plate, cover plate and bolts. Available with Metric or UNC thread hardware in steel or stainless steel.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 22MM

IMPA 613948 PCE

Heavy-duty polypropylene tube clamp with weld plate for 22 mm tubing. DIN 3015/2 rated; includes clamp body, weld plate, cover plate and bolts. Available with Metric or UNC thread hardware in steel or stainless steel.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 25MM

IMPA 613949 PCE

Heavy-duty polypropylene tube clamp with weld plate for 25 mm tubing. DIN 3015/2 rated; includes clamp body, weld plate, cover plate and bolts. Available with Metric or UNC thread hardware in steel or stainless steel.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 25.4MM

IMPA 613950 PCE

Heavy-duty polypropylene tube clamp with weld plate for 25.4 mm tubing. DIN 3015/2 rated; includes clamp body, weld plate, cover plate and bolts. Available with Metric or UNC thread hardware in steel or stainless steel.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 26.9MM

IMPA 613951 PCE

Heavy-duty polypropylene tube clamp with weld plate for 26.9 mm tubing. DIN 3015/2 rated; includes clamp body, weld plate, cover plate and bolts. Available with Metric or UNC thread hardware in steel or stainless steel.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 28MM

IMPA 613952 PCE

Heavy-duty polypropylene tube clamp with weld plate for 28 mm tubing. DIN 3015/2 rated; includes clamp body, weld plate, cover plate and bolts. Available with Metric or UNC thread hardware in steel or stainless steel.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 30MM

IMPA 613953 PCE

Heavy-duty polypropylene tube clamp with weld plate for 30 mm tubing. DIN 3015/2 rated; includes clamp body, weld plate, cover plate and bolts. Available with Metric or UNC thread hardware in steel or stainless steel.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 32MM

IMPA 613954 PCE

Polypropylene tube clamp with weld plate, heavy series (DIN 3015/2), 32 mm bore. Kit includes clamp body, weld plate, cover plate and bolts. Hardware available in metric or UNC thread, steel or stainless steel. For high-load and vibration-prone installations.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 33.7MM

IMPA 613955 PCE

Polypropylene tube clamp with weld plate, heavy series (DIN 3015/2), 33.7 mm bore. Kit includes clamp body, weld plate, cover plate and bolts. Hardware available in metric or UNC thread, steel or stainless steel. For high-load and vibration-prone installations.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 35MM

IMPA 613956 PCE

Polypropylene tube clamp with weld plate, heavy series (DIN 3015/2), 35 mm bore. Kit includes clamp body, weld plate, cover plate and bolts. Hardware available in metric or UNC thread, steel or stainless steel. For high-load and vibration-prone installations.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 38MM

IMPA 613957 PCE

Polypropylene tube clamp with weld plate, heavy series (DIN 3015/2), 38 mm bore. Kit includes clamp body, weld plate, cover plate and bolts. Hardware available in metric or UNC thread, steel or stainless steel. For high-load and vibration-prone installations.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 40MM

IMPA 613958 PCE

Polypropylene tube clamp with weld plate, heavy series (DIN 3015/2), 40 mm bore. Kit includes clamp body, weld plate, cover plate and bolts. Hardware available in metric or UNC thread, steel or stainless steel. For high-load and vibration-prone installations.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 42MM

IMPA 613959 PCE

Polypropylene tube clamp with weld plate, heavy series (DIN 3015/2), 42 mm bore. Kit includes clamp body, weld plate, cover plate and bolts. Hardware available in metric or UNC thread, steel or stainless steel. For high-load and vibration-prone installations.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 44.5MM

IMPA 613960 PCE

Polypropylene tube clamp with weld plate, heavy series (DIN 3015/2), 44.5 mm bore. Kit includes clamp body, weld plate, cover plate and bolts. Hardware available in metric or UNC thread, steel or stainless steel. For high-load and vibration-prone installations.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 48.3MM

IMPA 613961 PCE

Polypropylene tube clamp with weld plate, heavy series (DIN 3015/2), 48.3 mm bore. Kit includes clamp body, weld plate, cover plate and bolts. Hardware available in metric or UNC thread, steel or stainless steel. For high-load and vibration-prone installations.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 50.8MM

IMPA 613962 PCE

Polypropylene tube clamp with weld plate, heavy series (DIN 3015/2), 50.8 mm bore. Kit includes clamp body, weld plate, cover plate and bolts. Hardware available in metric or UNC thread, steel or stainless steel. For high-load and vibration-prone installations.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 55MM

IMPA 613963 PCE

Polypropylene tube clamp with weld plate, heavy series (DIN 3015/2), 55 mm bore. Kit includes clamp body, weld plate, cover plate and bolts. Hardware available in metric or UNC thread, steel or stainless steel. For high-load and vibration-prone installations.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 57MM

IMPA 613964 PCE

Polypropylene tube clamp with weld plate, heavy series (DIN 3015/2), 57 mm bore. Kit includes clamp body, weld plate, cover plate and bolts. Hardware available in metric or UNC thread, steel or stainless steel. For high-load and vibration-prone installations.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 60.3MM

IMPA 613965 PCE

Polypropylene tube clamp with weld plate, heavy series (DIN 3015/2), 60.3 mm bore. Kit includes clamp body, weld plate, cover plate and bolts. Hardware available in metric or UNC thread, steel or stainless steel. For high-load and vibration-prone installations.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 63.5MM

IMPA 613966 PCE

Polypropylene tube clamp with weld plate, heavy series (DIN 3015/2), 63.5 mm bore. Kit includes clamp body, weld plate, cover plate and bolts. Hardware available in metric or UNC thread, steel or stainless steel. For high-load and vibration-prone installations.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 65MM

IMPA 613967 PCE

Polypropylene tube clamp with weld plate, heavy series (DIN 3015/2), 65 mm bore. Kit includes clamp body, weld plate, cover plate and bolts. Hardware available in metric or UNC thread, steel or stainless steel. For high-load and vibration-prone installations.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 70MM

IMPA 613968 PCE

Polypropylene tube clamp with weld plate, heavy series (DIN 3015/2), 70 mm bore. Kit includes clamp body, weld plate, cover plate and bolts. Hardware available in metric or UNC thread, steel or stainless steel. For high-load and vibration-prone installations.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 73MM

IMPA 613969 PCE

Polypropylene tube clamp with weld plate, heavy series (DIN 3015/2), 73 mm bore. Kit includes clamp body, weld plate, cover plate and bolts. Hardware available in metric or UNC thread, steel or stainless steel. For high-load and vibration-prone installations.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 76.1MM

IMPA 613970 PCE

Polypropylene tube clamp with weld plate, heavy series (DIN 3015/2), 76.1 mm bore. Kit includes clamp body, weld plate, cover plate and bolts. Hardware available in metric or UNC thread, steel or stainless steel. For high-load and vibration-prone installations.

CLAMP TUBE POLYPROPYLENE, W/WELD PLATE HEAVY 80MM

IMPA 613971 PCE

Polypropylene tube clamp with weld plate, heavy series (DIN 3015/2), 80 mm bore. Kit includes clamp body, weld plate, cover plate and bolts. Hardware available in metric or UNC thread, steel or stainless steel. For high-load and vibration-prone installations.
