Ladders

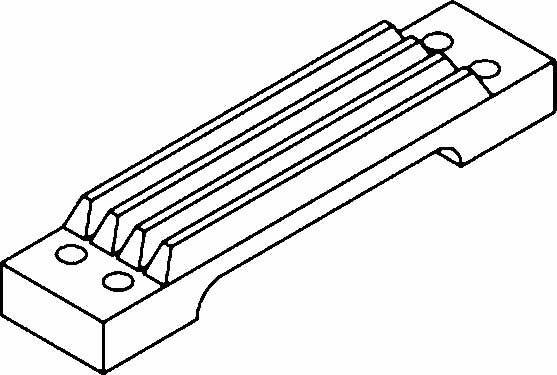

STEP RUBBER FOR MED/USCG, NORMALISATION 530X120X80MM

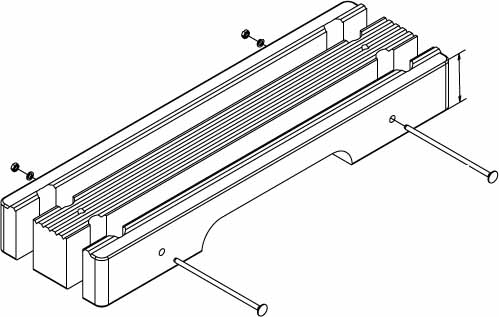

STEP WOOD REPAIR FOR MED/USCG, NORMALISATION 525X115X63MM

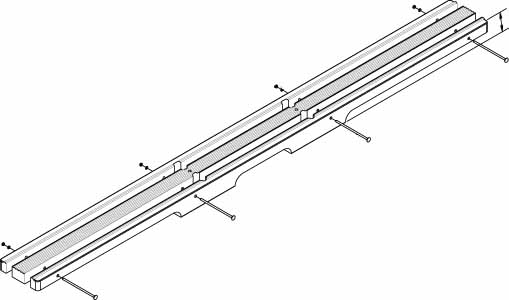

SPREADER WOOD REPAIR MED/USCG, NORMALISATION 1800X115X63MM

LADDER EMBARKATION, WITH FURTHER DETAIL

Embarkation ladder for merchant vessel survival craft deployment. Constructed from knot-free hardwood sections and corrosion-resistant metal fastenings; continuous side ropes run full length uncoated.

LADDER PILOT SYNTHETIC STEP &, SPREADER WITH FURTHER DETAIL

Pilot ladder with synthetic steps and spreaders featuring hand holes, moulded elastomer construction, and white Dacron rope (double strength of manila). Stainless steel fasteners. Meets USCG and SOLAS 1974 requirements.

LADDER PILOT W/STEP BRACE TYPE, SOLAS APPROVED WITH DETAIL

SOLAS-approved pilot ladder with step brace, stainless steel clamping device rated to 907.2 kg, hardwood ash steps with synthetic material on bottom four steps, manila rope fixing.

LADDER BULWARK WOOD, WITH FURTHER DETAIL

LADDER BULWARK STEEL, WITH FURTHER DETAIL

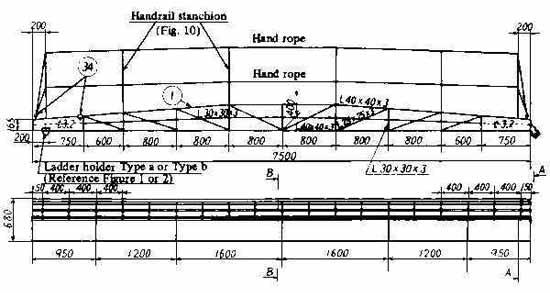

LADDER WHARF STEEL, WITH FURTHER DETAIL

Steel wharf ladder, available in type A (single section) and type B (jointed construction).

HANDRAIL STANCHION&SOCKET FOR, STEEL WHARF LADDER WITH DETAIL

Steel round bar handrail stanchion and socket assembly for wharf ladder installation. Specify length H when ordering.

LADDER WHARF ALUMINIUM ALLOY, WITH FURTHER DETAIL

Aluminium alloy wharf ladder available in two configurations: Type A (single-piece) and Type B (jointed construction).

HANDRAIL STANCHION&SOCKET FOR, ALUMALLOY WHARFLADDER W/DETAIL

Aluminium alloy stanchion and socket assembly for wharf ladder handrails. Standard centre-to-end length 990 mm for JIS-type ladders; custom lengths available on request.

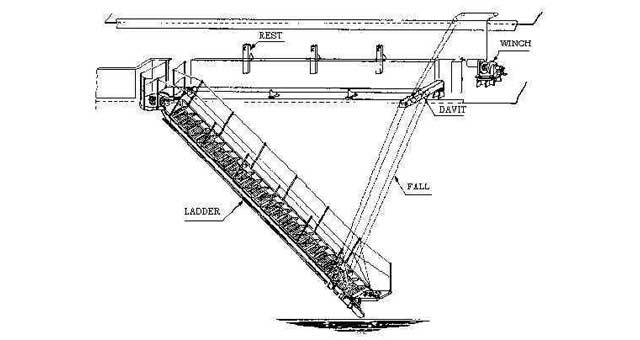

LADDER ACCOMMODATION ALUMINIUM, ALLOY WITH FURTHER DETAIL

SUCTION PAD SECURING BLUE BOX, FOR ACCOMMODATION LADDER

Blue box suction pad securing device for accommodation ladder, prevents movement against ship's side per SOLAS Chapter V Regulation 23. Non-ferrous corrosion-resistant construction; operates on deck air 6–7 kgf/cm². ABS class certified.

SUCTION PAD SECURING DEVICE, FOR PILOT LADDER

Pilot ladder vacuum securing device using dual spreaders for firm grip regardless of paint thickness or surface condition; holding force 715 kg. Pressure range 1.4–4.0 bar. SOLAS 1045(27) and Lloyd's class certified.

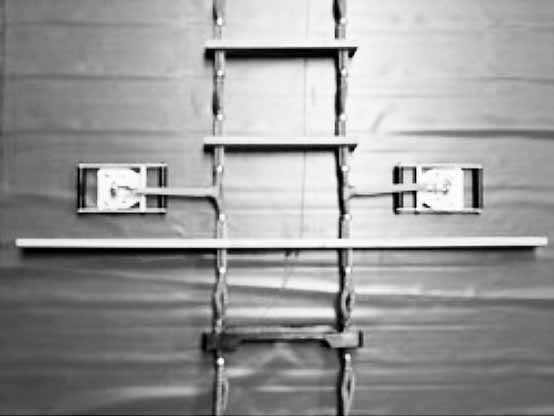

MAGNET HOLDING FOR PILOT, LADDER

Magnetic holding device for pilot ladder, Class ABS certified. Develops approximately 800 kg clamping force through paint and marine scale. Yellow powder-coated steel with resin-encapsulated magnet core and derlin roller for attachment/release. Approximately 3 kg. Securing belt and storage box ordered separately.

BELT TIGHTENING FOR MAGNET, AND PILOT LADDER

Securing belt attachment for pilot ladder magnetic holding device. Ordered separately from magnet and storage box.

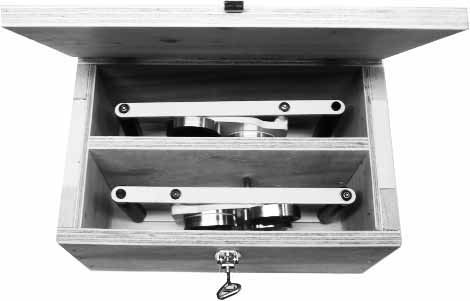

BOX STORING WOODEN FOR, TWO HOLDING MAGNETS

Wooden storage box for two pilot ladder magnetic holding devices. Ordered separately from magnets and securing belt.
