IMPA 23 23. Rigging Equipment & General Deck Items

Crosby Products

Browse the product families and items within the "Crosby Products" sub-group of the IMPA marine catalogue, and order them from verified suppliers via Geomarine.

Families

337

Items

Product families

Anchor Shackles Cast Alloy G-2140 4 Anchor Shackles Forged Alloy G-2140/S-2140 11 Chains Alloy 7 Hooks Clevis Grab A-338 7 Hooks Clevis Sling A-339 7 Hooks Eliminator Double A-1362 5 Hooks Eliminator Single A-1361 5 Hooks Eye Foundry A 329 Hooks Latching Eye S-315A 5 Lock-A-Loy A-337 8 Master Links A-342 8 Shackles Bolt Type Chain & Anchor G-2130/S-2130/G-2150/S-2150 61 Shackles Forged Anchor G-209/S-209/G-213/S-213 64 Shackles Forged Chain G-210/S-210/G-215/S-215 62 Shackles Grommet G-2170 5 Shackles Wide Body G-2160 19 Slide-loc Lifting Points SL-150 11 Sling Links G-341/S-341 16 Sling Saver Web Connectors S-280 4 Sling Saver Web Sling Shackles S-252/S-253 14 Sling Saver Web Sling Shackles S-281 4 Swivels Forged Regular G-402 10

Items in this sub-group

337 items

SHACKLE ANCHOR FORGED CROSBY, BOLT TYPE S-2140 BLACK 2-1/2"

IMPA 234314 PCE

Crosby bolt-type anchor shackle, black finish, 2-1/2" size. Forged alloy construction with quenched and tempered bow and bolts. Complies with Federal Specification RR-C-271F, Type IVA, Grade B, Class 3.

SHACKLE WIDE BODY FORGED ALLOY, CROSBY G-2160 W/L 30TON

IMPA 234315 PCE

Crosby G-2160 wide body forged alloy shackle, 30 ton working load. Enlarged bow radius increases bearing surface and eliminates thimble requirement. Available in forged alloy steel (75–300 metric tons) and cast alloy steel (400–1,000 metric tons).

SHACKLE ANCHOR CAST ALLOY, CROSBY BOLT TYPE G-2140 4-3/4"

IMPA 234316 PCE

Cast alloy anchor shackle, Crosby bolt type G-2140, 4¾ inch, with quenched and tempered alloy components. Complies with Federal Specification RR-C-271F, Type IVA, Grade B, Class 3.

SHACKLE ANCHOR CAST ALLOY, CROSBY BOLT TYPE G-2140 5"

IMPA 234317 PCE

Cast alloy anchor shackle, Crosby bolt type G-2140, 5 inch, with quenched and tempered alloy components. Complies with Federal Specification RR-C-271F, Type IVA, Grade B, Class 3.

SHACKLE ANCHOR CAST ALLOY, CROSBY BOLT TYPE G-2140 6"

IMPA 234318 PCE

Cast alloy anchor shackle, Crosby bolt type G-2140, 6 inch, with quenched and tempered alloy components. Complies with Federal Specification RR-C-271F, Type IVA, Grade B, Class 3.

SHACKLE ANCHOR CAST ALLOY, CROSBY BOLT TYPE G-2140 7"

IMPA 234319 PCE

Cast alloy anchor shackle, Crosby bolt type G-2140, 7 inch, with quenched and tempered alloy components. Complies with Federal Specification RR-C-271F, Type IVA, Grade B, Class 3.

SHACKLE WIDE BODY FORGED ALLOY, CROSBY G-2160 W/L 40TON

IMPA 234320 PCE

Crosby G-2160 wide body forged alloy shackle, 40 ton working load. Enlarged bow radius increases bearing surface and eliminates thimble requirement. Available in forged alloy steel (75–300 metric tons) and cast alloy steel (400–1,000 metric tons).

SHACKLE WIDE BODY FORGED ALLOY, CROSBY G-2160 W/L 75TON

IMPA 234321 PCE

Crosby G-2160 wide body forged alloy shackle, 75 ton working load. Enlarged bow radius increases bearing surface and eliminates thimble requirement. Available in forged alloy steel (75–300 metric tons) and cast alloy steel (400–1,000 metric tons).

SHACKLE WIDE BODY FORGED ALLOY, CROSBY G-2160 W/L 125TON

IMPA 234322 PCE

SHACKLE WIDE BODY FORGED ALLOY, CROSBY G-2160 W/L 200TON

IMPA 234323 PCE

Crosby G-2160 wide body forged alloy shackle, 200 metric ton capacity. Wider bow radius design with oil-resistant rubber components suitable for wire rope sling applications.

SHACKLE WIDE BODY FORGED ALLOY, CROSBY G-2160 W/L 300TON

IMPA 234324 PCE

Crosby G-2160 wide body forged alloy shackle, 300 metric ton capacity. Wider bow radius design with oil-resistant rubber components suitable for wire rope sling applications.

SHACKLE WIDE BODY FORGED ALLOY, CROSBY G-2160 W/L 400TON

IMPA 234325 PCE

Crosby G-2160 wide body forged alloy shackle, 400 metric ton capacity. Cast alloy steel construction for heavy-duty wire rope sling use.

SHACKLE WIDE BODY FORGED ALLOY, CROSBY G-2160 W/L 500TON

IMPA 234326 PCE

Crosby G-2160 wide body forged alloy shackle, 500 metric ton capacity. Cast alloy steel construction for heavy-duty wire rope sling use.

SHACKLE WIDE BODY FORGED ALLOY, CROSBY G-2160 W/L 600TON

IMPA 234327 PCE

Crosby G-2160 wide body forged alloy shackle, 600 metric ton capacity. Cast alloy steel construction for heavy-duty wire rope sling use.

SHACKLE WIDE BODY FORGED ALLOY, CROSBY G-2160 W/L 700TON

IMPA 234328 PCE

Crosby G-2160 wide body forged alloy shackle, 700 metric ton capacity. Cast alloy steel construction for heavy-duty wire rope sling use.

SHACKLE WIDE BODY FORGED ALLOY, CROSBY G-2160 W/L 800TON

IMPA 234329 PCE

Crosby G-2160 wide body forged alloy shackle, 800 metric ton capacity. Cast alloy steel construction for heavy-duty wire rope sling use.

SHACKLE WIDE BODY FORGED ALLOY, CROSBY G-2160 W/L 900TON

IMPA 234330 PCE

Crosby G-2160 wide body forged alloy shackle, 900 metric ton capacity. Cast alloy steel construction for heavy-duty wire rope sling use.

SHACKLE WIDE BODY FORGED ALLOY, CROSBY G-2160 W/L 1000TON

IMPA 234331 PCE

Crosby G-2160 wide body forged alloy shackle, 1000 metric ton capacity. Cast alloy steel construction for heavy-duty wire rope sling use.

SHACKLE WIDE BODY FORGED ALLOY, CROSBY G-2160 W/L 55TON

IMPA 234332 PCE

Crosby G-2160 wide body forged alloy shackle, 55 metric ton capacity. Forged alloy steel construction suitable for wire rope sling applications.

SHACKLE WIDE BODY FORGED ALLOY, CROSBY G-2160 W/L 1250TON

IMPA 234333 PCE

Crosby G-2160 wide body forged alloy shackle, 1250 metric ton capacity. Cast alloy steel construction for heavy-duty wire rope sling use.

SHACKLE WIDE BODY FORGED ALLOY, CROSBY G-2160 W/L 1550TON

IMPA 234334 PCE

Crosby G-2160 wide body forged alloy shackle, 1550 metric ton capacity. Cast alloy steel construction for heavy-duty wire rope sling use.

SHACKLE GROMMET CAST ALLOY, STEEL G-2170 BODY DIA 11.25"

IMPA 234335 PCE

Cast alloy steel grommet shackle, G-2170, body diameter 11.25″. Quenched and tempered; Dimetcoat finish with red-painted pin. RFID-equipped; certified to 42 joules Charpy impact at −20 °C. ABS/Lloyds and DNV certifications available on request.

SHACKLE GROMMET CAST ALLOY, STEEL G-2170 BODY DIA 13.50"

IMPA 234336 PCE

Cast alloy steel grommet shackle, G-2170, body diameter 13.50″. Quenched and tempered; Dimetcoat finish with red-painted pin. RFID-equipped; certified to 42 joules Charpy impact at −20 °C. ABS/Lloyds and DNV certifications available on request.

SHACKLE GROMMET CAST ALLOY, STEEL G-2170 BODY DIA 18.45"

IMPA 234337 PCE

Cast alloy steel grommet shackle, G-2170, body diameter 18.45″. Quenched and tempered; Dimetcoat finish with red-painted pin. RFID-equipped; certified to 42 joules Charpy impact at −20 °C. ABS/Lloyds and DNV certifications available on request.

SHACKLE GROMMET CAST ALLOY, STEEL G-2170 BODY DIA 22.75"

IMPA 234338 PCE

Cast alloy steel G-2170 grommet shackle, body dia 22.75", quenched and tempered. Dimetcoted bow and red-painted pin; RFID-equipped bow and pin. Certified to Charpy impact 42 joules at -20°C. ABS, Lloyds, and DNV lifting appliance certifications available on request.

SHACKLE GROMMET CAST ALLOY, STEEL G-2170 BODY DIA 30.00"

IMPA 234339 PCE

Cast alloy steel G-2170 grommet shackle, body dia 30.00", quenched and tempered. Dimetcoted bow and red-painted pin; RFID-equipped bow and pin. Certified to Charpy impact 42 joules at -20°C. ABS, Lloyds, and DNV lifting appliance certifications available on request.

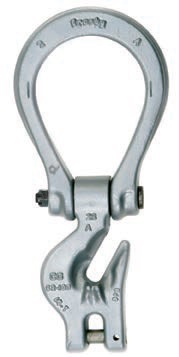

HOOK ELIMINATOR SINGLE A-1361, CHAIN SIZE 1/4 (7MM)

IMPA 234340 PCE

Forged alloy steel chain hook eliminator model A-1361 for 1/4" (7 mm) chain. Multi-function fitting integrating grab hook, adjuster and master link functionality for adjustable-length slings. Approved for personnel lifting, Grade 80 and Grade 100 chain; RFID equipped.

HOOK ELIMINATOR SINGLE A-1361, CHAIN SIZE 5/16 (8MM)

IMPA 234341 PCE

Forged alloy steel chain hook eliminator model A-1361 for 5/16" (8 mm) chain. Multi-function fitting integrating grab hook, adjuster and master link functionality for adjustable-length slings. Approved for personnel lifting, Grade 80 and Grade 100 chain; RFID equipped.

HOOK ELIMINATOR SINGLE A-1361, CHAIN SIZE 3/8 (10MM)

IMPA 234342 PCE

Forged alloy steel chain hook eliminator model A-1361 for 3/8" (10 mm) chain. Multi-function fitting integrating grab hook, adjuster and master link functionality for adjustable-length slings. Approved for personnel lifting, Grade 80 and Grade 100 chain; RFID equipped.

HOOK ELIMINATOR SINGLE A-1361, CHAIN SIZE 1/2 (13MM)

IMPA 234343 PCE

Forged alloy steel A-1361 fitting for 1/2" (13 mm) chain; combines master link, connecting link, grab hook and adjuster leg functions for adjustable-length chain slings. Compatible with Grade 100 and Grade 80 chain, suitable for personnel lifting, and RFID-equipped.

HOOK ELIMINATOR SINGLE A-1361, CHAIN SIZE 5/8 (16MM)

IMPA 234344 PCE

Forged alloy steel A-1361 fitting for 5/8" (16 mm) chain; combines master link, connecting link, grab hook and adjuster leg functions for adjustable-length chain slings. Compatible with Grade 100 and Grade 80 chain, suitable for personnel lifting, and RFID-equipped.

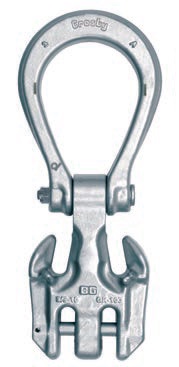

HOOK ELIMINATOR DOUBLE A-1362, CHAIN SIZE 1/4 (7MM)

IMPA 234345 PCE

Crosby A-1362 double hook eliminator for chain size 1/4" (7 mm); forged and tempered alloy steel. Suitable for Grade 80 and Grade 100 chain, personnel lifting applications, and adjustable-length chain slings. RFID equipped.

HOOK ELIMINATOR DOUBLE A-1362, CHAIN SIZE 5/16 (8MM)

IMPA 234346 PCE

Crosby A-1362 double hook eliminator for chain size 5/16" (8 mm); forged and tempered alloy steel. Suitable for Grade 80 and Grade 100 chain, personnel lifting applications, and adjustable-length chain slings. RFID equipped.

HOOK ELIMINATOR DOUBLE A-1362, CHAIN SIZE 3/8 (10MM)

IMPA 234347 PCE

Crosby A-1362 double hook eliminator for chain size 3/8" (10 mm); forged and tempered alloy steel. Suitable for Grade 80 and Grade 100 chain, personnel lifting applications, and adjustable-length chain slings. RFID equipped.

HOOK ELIMINATOR DOUBLE A-1362, CHAIN SIZE 1/2 (13MM)

IMPA 234348 PCE

Crosby A-1362 double hook eliminator for chain size 1/2" (13 mm); forged and tempered alloy steel. Suitable for Grade 80 and Grade 100 chain, personnel lifting applications, and adjustable-length chain slings. RFID equipped.

HOOK ELIMINATOR DOUBLE A-1362, CHAIN SIZE 5/8 (16MM)

IMPA 234349 PCE

Crosby A-1362 double hook eliminator for chain size 5/8" (16 mm); forged and tempered alloy steel. Suitable for Grade 80 and Grade 100 chain, personnel lifting applications, and adjustable-length chain slings. RFID equipped.

HOOK SLING CLEVIS ALLOY STEEL, CROSBY A-331 HOOK SIZE 7MM

IMPA 234351 PCE

Crosby A-331 alloy steel clevis sling hook, 7 mm, quenched and tempered with tool-free pin locking.

HOOK SLING CLEVIS ALLOY STEEL, CROSBY A-331 HOOK SIZE 8MM

IMPA 234352 PCE

Crosby A-331 alloy steel clevis sling hook, 8 mm, quenched and tempered with tool-free pin locking.

HOOK SLING CLEVIS ALLOY STEEL, CROSBY A-331 HOOK SIZE 10MM

IMPA 234353 PCE

Crosby A-331 alloy steel clevis sling hook, 10 mm, quenched and tempered with tool-free pin locking.

HOOK SLING CLEVIS ALLOY STEEL, CROSBY A-331 HOOK SIZE 11MM

IMPA 234354 PCE

Crosby A-331 alloy steel clevis sling hook, 11 mm, quenched and tempered with tool-free pin locking.
